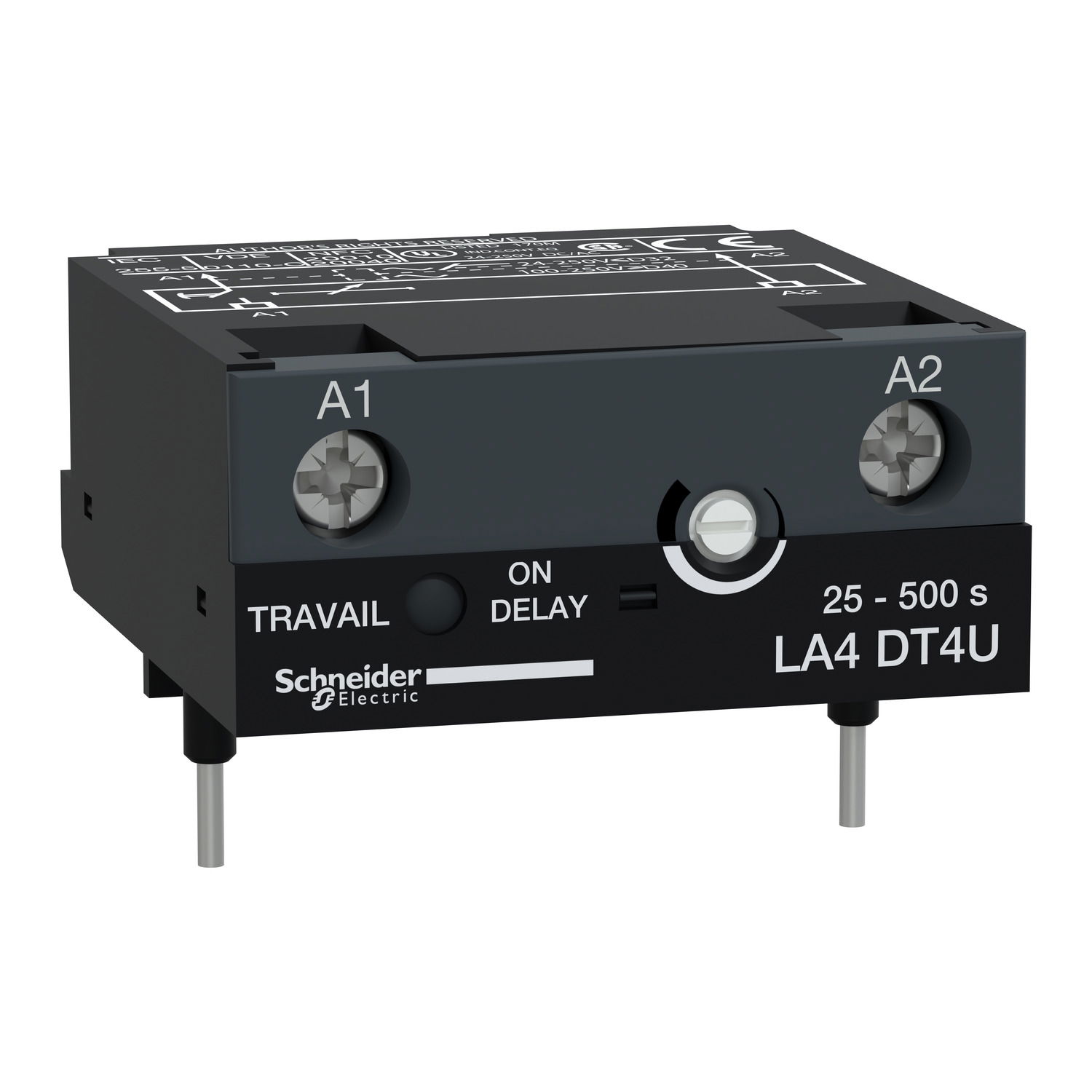

Electronic timer module - type on delay 25...500 s - 24...250 V DC/AC

Electronic timer module - type on delay 25...500 s - 24...250 V DC/AC by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £122.59 to £123.82 excl. VAT. Voltimum+ members earn 16 points per unit.

TeSys Deca electronic timer module for LC1D09-D38, LC1D40A-D80A, LC1D80-D150 (3P) contactors. To be used with 24-250V AC control circuit voltages, it provides a manual ajustable on-delay time 25 to 500 sec. The time delay period is signalling by LED. Mounting on contactors LC1D09-D38 using adapter LAD4BB, on contactors LC1D40A-D80A using adpater LAD4BB3, on contactors LC1D80-D150 (3P) directly on coil terminals. Multi standards certified (IEC, UL, CSA), it conforms to RoHS/REACh regulation.

Product identifiers

SKU: LA4DT4U
EAN: 3389110192780
GTIN: 3389110192780
MPN: LA4DT4U

Voltimum+ Loyalty Programme Loyalty points: 16

Price range: £ 122.59 - £ 123.82 Excl. VAT

Categories

Contactors & Motor Starters Switchgear & Circuit Protection

ETIM group

Relays

Specifications

Setting time
Switching function Operating delayed
Operating principle Electronic
Number of contacts as change-over contact 0
Number of contacts as normally open contact 1
Number of contacts as normally closed contact 0
