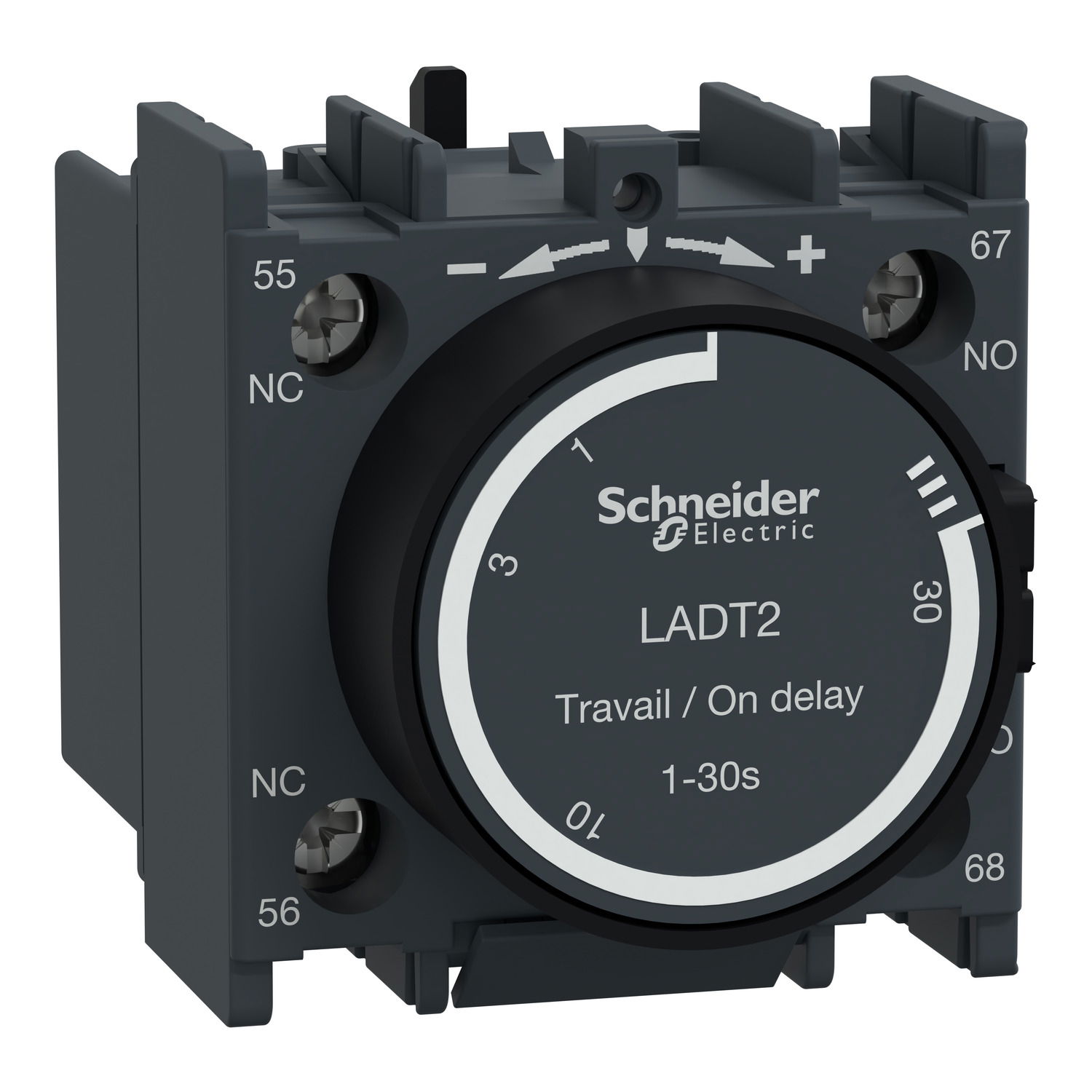

TeSys D - time delay auxiliary contact block - 1 NO + 1 NC screw clamp terminals
1 / 2
Popularity
Top 30%
More about Popularity
Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
TeSys D - time delay auxiliary contact block - 1 NO + 1 NC screw clamp terminals
TeSys D - time delay auxiliary contact block - 1 NO + 1 NC screw clamp terminals by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £58.00 to £94.49 excl. VAT. Voltimum+ members earn 12 points per unit.
TeSys D time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, On-delay setting range 1-30s, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Sustainability compliant.
Product identifiers
SKU: LADT2
EAN: 3389110385892
GTIN: 3389110385892
MPN: LADT2
Loyalty points:
12
Price range: £ 58.00 - £ 94.49 Excl. VAT
ETIM group
Specifications
| Setting time | |
| Switching function | Operating delayed |
| Operating principle | Electronic |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 1 |
