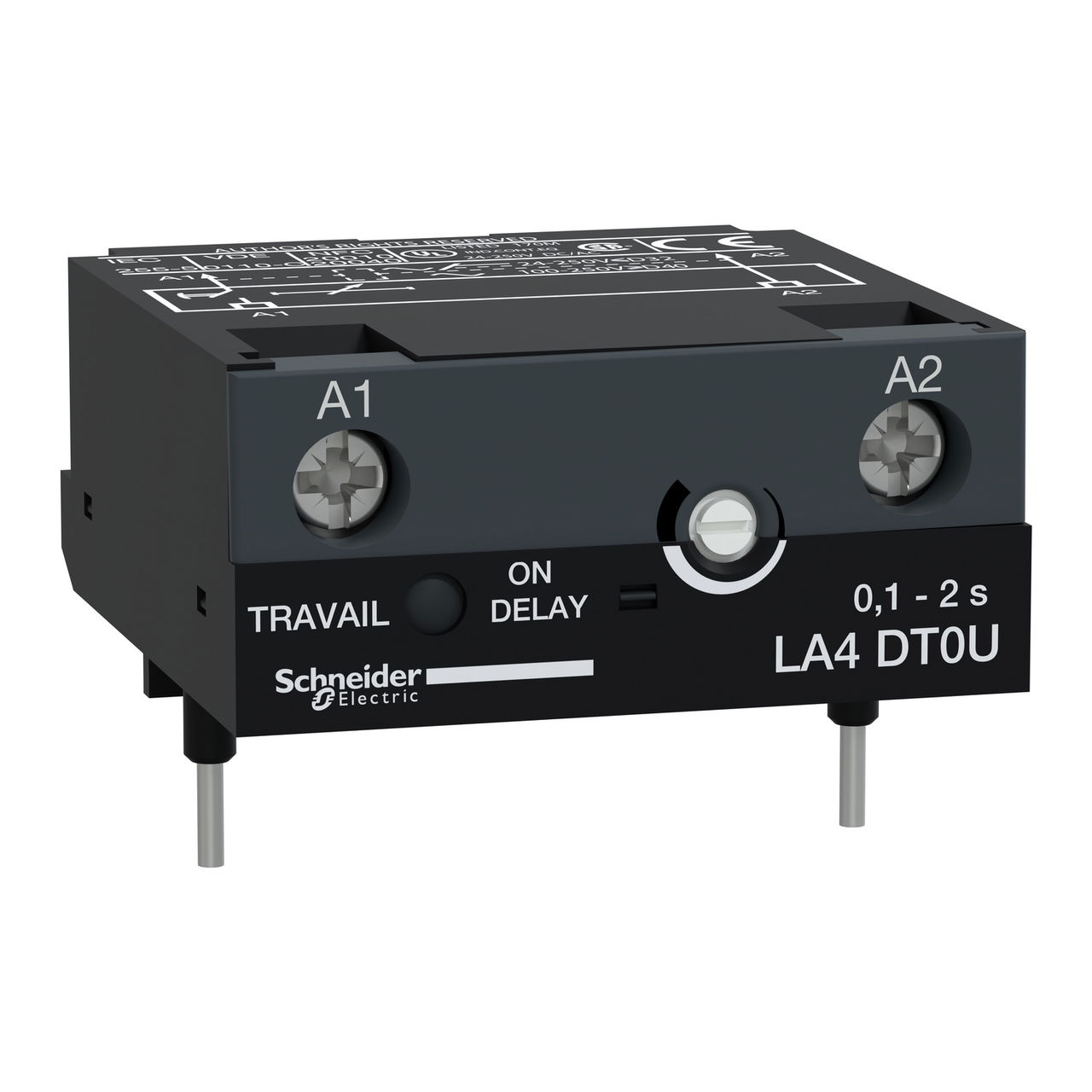

Electronic timer module - type on delay 0.1...2 s - 24...250 V DC/AC

1 / 2

Electronic timer module - type on delay 0.1...2 s - 24...250 V DC/AC

Name: Electronic timer module - type on delay 0.1...2 s - 24...250 V DC/AC
Brand: Schneider Electric
SKU: LA4DT0U
Availability: InStock

Electronic timer module - type on delay 0.1...2 s - 24...250 V DC/AC by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 1 more. It is currently in stock at 2 of them. Trade prices range from £76.29 to £78.59 excl. VAT. Voltimum+ members earn 10 points per unit.

TeSys Deca electronic timer module for LC1D09-D38, LC1D40A-D80A, LC1D80-D150 (3P) contactors. To be used with 24-250V AC control circuit voltages, it provides a manual ajustable on-delay time 0.1 to 2 sec. The time delay period is signalling by LED. Mounting on contactors LC1D09-D38 using adapter LAD4BB, on contactors LC1D40A-D80A using adpater LAD4BB3, on contactors LC1D80-D150 (3P) directly on coil terminals. Multi standards certified (IEC, UL, CSA), it conforms to RoHS/REACh regulation.

Product identifiers

SKU: LA4DT0U

EAN: 3389110236453

GTIN: 3389110236453

MPN: LA4DT0U

Loyalty points: 10

Price range: £ 76.29 - £ 78.59 Excl. VAT

Specifications

Setting time
Switching function	Operating delayed
Operating principle	Electronic
Number of contacts as change-over contact	0
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	0
