ABB

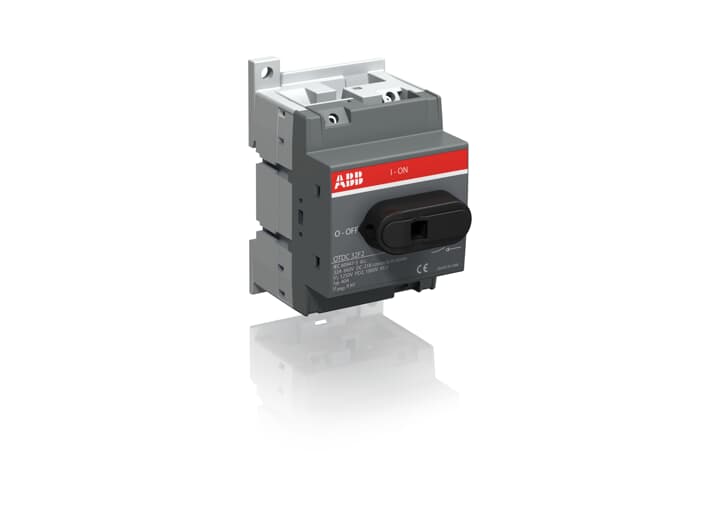

OTDC32F2 DC Switch-disconnector

OTDC32F2 DC Switch-disconnector by ABB is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £71.33 excl. VAT. Voltimum+ members earn 39 points per unit.

OTDC32F2 DC Switch-disconnector, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, IEC 660 VDC 32 A single circuit, IEC 1000 VDC 20 A single circuit

Product identifiers

SKU: OTDC32F2
EAN: 6417019526119
GTIN: 6417019526119
MPN: OTDC32F2

Voltimum+ Loyalty Programme Loyalty points: 39

Price: £ 71.33 Excl. VAT

Categories

Other

Specifications

Depth 66.2
Width 52.5
Height 89
Interlockable yes
Number of poles 2
Number of switches 1
Device construction Built-in device fixed built-in technique
Motor drive optional no
Motor drive integrated no
Rated operating voltage
Switching power at 400 V -
Voltage release optional no
With pre-assembled cabling -
Suitable for floor mounting no
Max. rated operation voltage Ue AC -
Suitable for front mounting centre no
Width in number of modular spacings -
Degree of protection (IP), front side IP20
Rated short-time withstand current lcw -
Version as maintenance-/service switch yes
Rated permanent current at AC-23, 400 V -
Suitable for distribution board installation yes
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally closed contact 0
