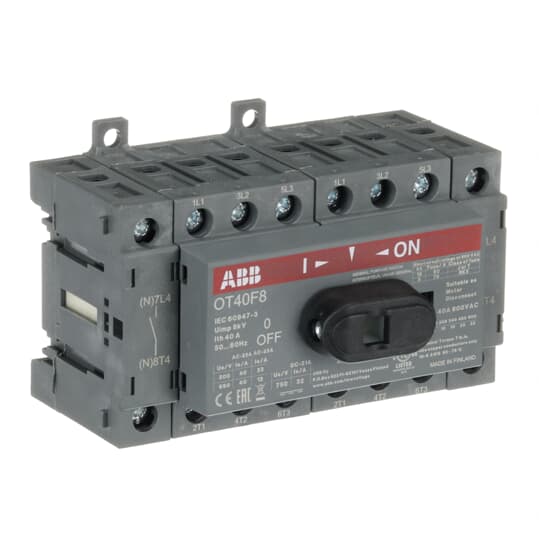

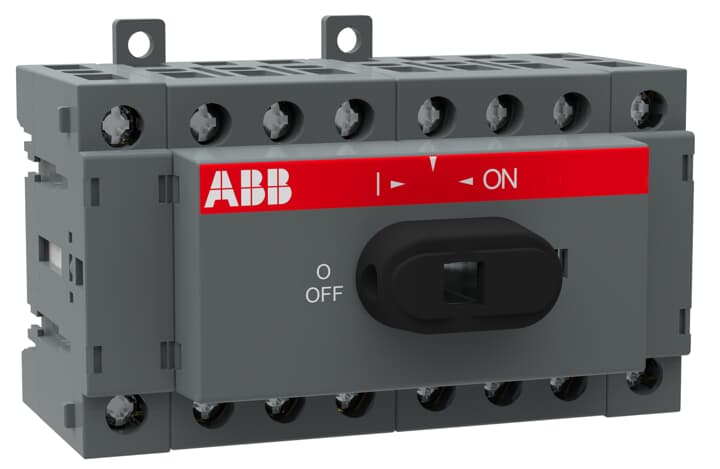

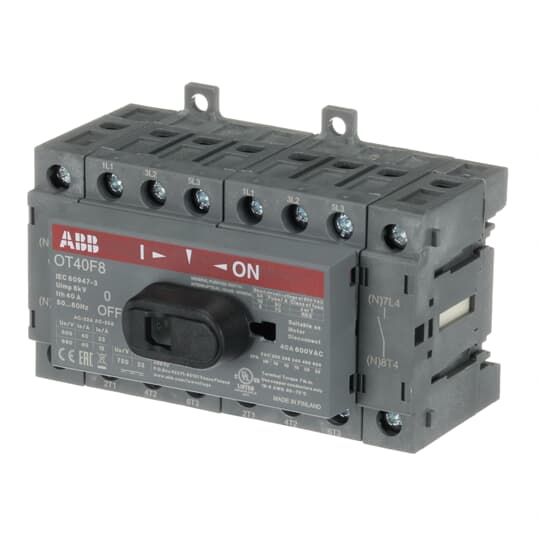

OT40F8 SWITCH-DISCONNECTOR

Link copied
SKU
EAN
GTIN
MPN

OT40F8 SWITCH-DISCONNECTOR by ABB is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and TLA. It is currently in stock at all of them. Trade prices range from £80.03 to £102.90 excl. VAT. Voltimum+ members earn 50 points per unit.

8-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle and shaft are not included

Voltimum+ Loyalty Programme Loyalty points: 50

Price range: £ 80.03 - £ 102.90 Excl. VAT

Categories

Specifications

Depth 68
Width 83
Height 68
Interlockable no
Number of poles 8
Number of switches 1
Device construction Complete device in housing
Motor drive optional no
Motor drive integrated no
Rated operating voltage
Switching power at 400 V 11
Voltage release optional no
With pre-assembled cabling -
Suitable for floor mounting -
Max. rated operation voltage Ue AC 750
Suitable for front mounting centre no
Width in number of modular spacings -
Degree of protection (IP), front side IP20
Rated short-time withstand current lcw 0.5
Version as maintenance-/service switch yes
Rated permanent current at AC-23, 400 V 23
Suitable for distribution board installation yes
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally closed contact 0

Documents

Deeplink product page

Open

Deeplink REACH

1SCC011021D0201_en_H_Reach Declaration _ AC Switches and Fusegear.pdf

Open

Instructions for use

Open

Product data sheet

Open

Declaration RoHS

1SCC011020D0201_en_C_RoHs Declaration _ AC Switches and Fusegear.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

CE OT16-40 2020-08-31 E (003).pdf

Open

Declaration EPD (Environmental Product Declaration)

1SCC301278D0201_OT40F3_ PEP Ecopassport_APPROVED.pdf

Open
