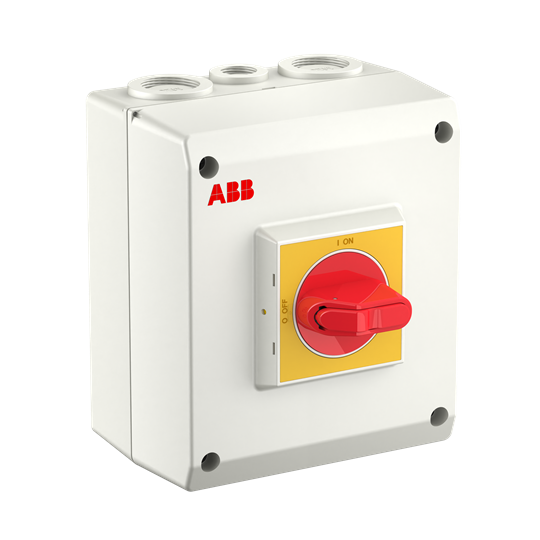

OTP32BA4M Enclosed Switch Disconnector

Link copied
SKU
EAN
GTIN
MPN

OTP32BA4M Enclosed Switch Disconnector by ABB is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and TLA. It is currently in stock at all of them. Trade prices range from £76.84 to £81.92 excl. VAT. Voltimum+ members earn 36 points per unit.

Encl. Switch Disconnector, 4-p. 415V AC23 23A, 11kW. Plastic enclosure. IP65. RedYellow Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.

Voltimum+ Loyalty Programme Loyalty points: 36

Price range: £ 76.84 - £ 81.92 Excl. VAT

Categories

Specifications

Depth 60
Width 130
Height 150
Interlockable yes
Number of poles 4
Number of switches 1
Device construction Complete device in housing
Motor drive optional no
Motor drive integrated no
Rated operating voltage
Switching power at 400 V 11
Voltage release optional no
With pre-assembled cabling -
Suitable for floor mounting -
Max. rated operation voltage Ue AC 750
Suitable for front mounting centre no
Width in number of modular spacings -
Degree of protection (IP), front side IP65
Rated short-time withstand current lcw 0.5
Version as maintenance-/service switch yes
Rated permanent current at AC-23, 400 V 23
Suitable for distribution board installation yes
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally closed contact 0

Documents

Deeplink product page

Open

Deeplink REACH

1SCC340076D0201_en_D_Reach Declaration _ Enclosed AC Switches.pdf

Open

Instructions for use

34OTP16-63 rev Q.pdf

Open

Product data sheet

Open

Declaration RoHS

1SCC340075D0201_en_E_RoHs Declaration _ Enclosed AC Switches.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

CE OTP_ 2021-02-25 E.pdf

Open
