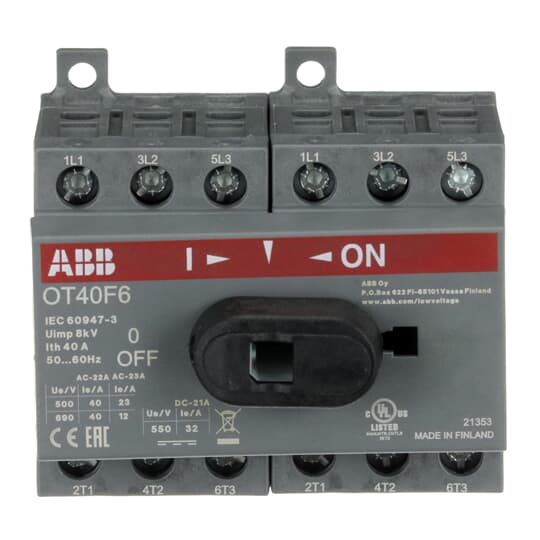

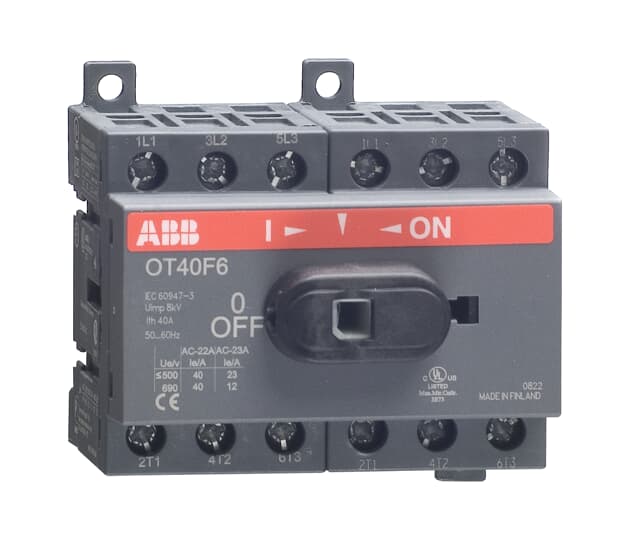

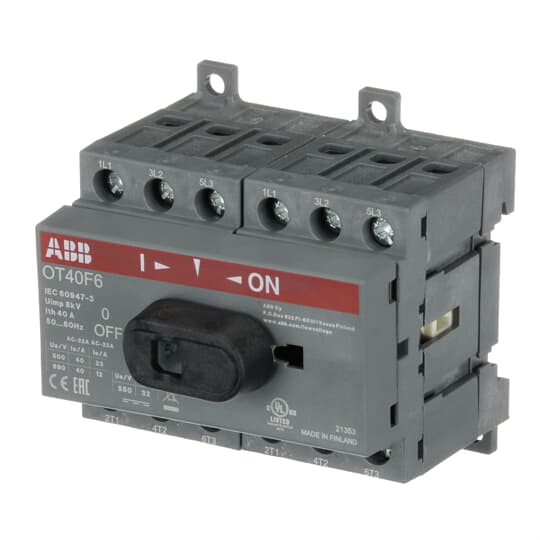

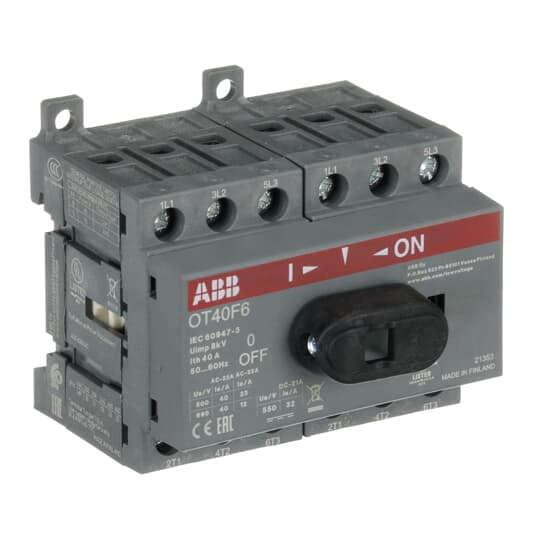

OT40F6 SWITCH-DISCONNECTOR

OT40F6 SWITCH-DISCONNECTOR

6-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle and shaft are not included

Product identifiers

SKU: OT40F6
EAN: 6417019390765
GTIN: 6417019390765
MPN: OT40F6

Voltimum+ Loyalty Programme Loyalty points: 38

Price: £ 69.96 Excl. VAT

Categories

Specifications

Depth 68
Width 70
Height 68
Interlockable no
Number of poles 6
Number of switches 1
Device construction Complete device in housing
Motor drive optional no
Motor drive integrated no
Rated operating voltage
Switching power at 400 V 11
Voltage release optional no
With pre-assembled cabling -
Suitable for floor mounting -
Max. rated operation voltage Ue AC 750
Suitable for front mounting centre no
Width in number of modular spacings -
Degree of protection (IP), front side IP20
Rated short-time withstand current lcw 0.5
Version as maintenance-/service switch yes
Rated permanent current at AC-23, 400 V 23
Suitable for distribution board installation yes
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally closed contact 0
