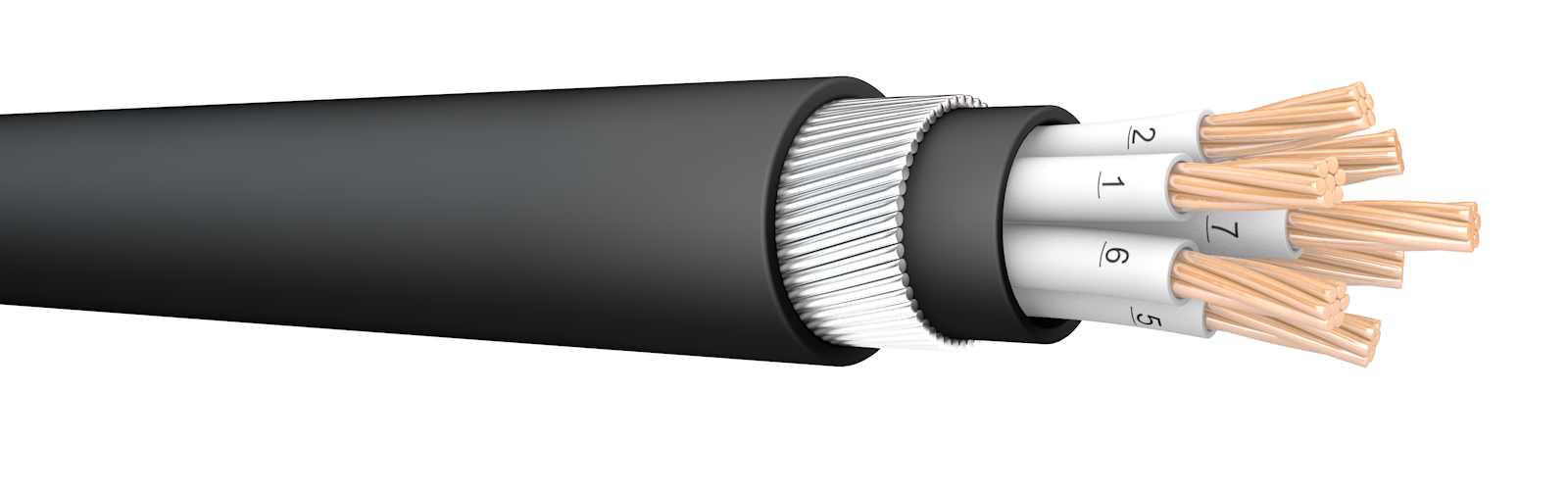

BS5467 27x1.5 Cut Black PVC Copper Conductor Armoured Cable. BS 5467. 600/1000 V

Name: BS5467 27x1.5 Cut Black PVC Copper Conductor Armoured Cable. BS 5467. 600/1000 V
Brand: Prysmian
SKU: 20147317

Prysmian BS 5467 is a low voltage armoured cable for industrial wiring and mains distribution

Product identifiers

SKU: 20147317

EAN: 5019325422911

GTIN: 5019325422911

Specifications

Screen	no
Weight	1400
Lead sheath	no
Cable geometry	Round
Number of cores	27
Conductor surface	Bare
Nominal voltage U	1000
Conductor category	Class 2 = stranded
Conductor material	Copper
Nominal voltage U0	600
Shape of conductor	Round
Colour outer sheath	Black
Core identification	Colour
Concentric conductor	None
Material outer sheath	Polyvinyl chloride (PVC)
Outer diameter approx.	27
With rodent protection	no
Armouring/reinforcement	Wire
Material core insulation	Polyolefin
Max. conductor temperature	90
Specification core insulation	Crosslinked polyethylene (XLPE)
Conductor resistance at 20 °C	12.1
Suitable as high-voltage cable	no
Nominal cross section conductor	1.5
Suitable as medium-voltage cable	no
Certified as airport lighting cable	no
Certified for shipboard application	no
Low smoke according to EN IEC 61034-2	no
Suitable for underground installation	yes
Core identification according to HD 308 S2	yes
Oil resistant according to EN IEC 60811-404	no
Permitted cable outer temperature during assembling/handling
