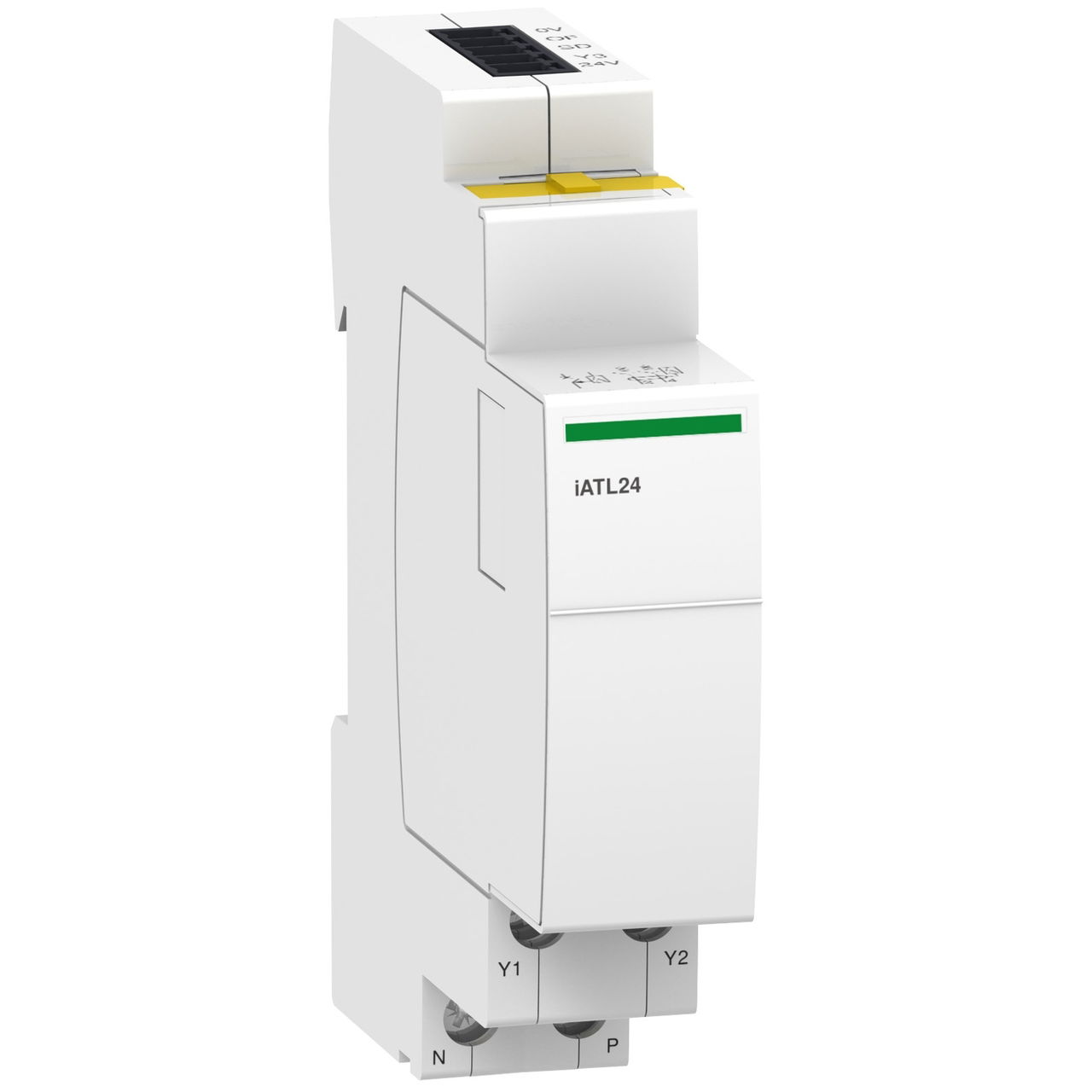

Acti9 iATL24 control and remote indication with Ti24 connector
This Acti9 iATL24 product is reliable control and remote indication with Ti24 connector auxiliary. Is operates with 230VAC control voltage. Mounting is performed between 2 iTL impulse relay with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays to allow remote indication of their operating state. This product is compliant with IEC 60947-1 appendix S.
Product identifiers
SKU: A9C15424
EAN: 3606480430626
GTIN: 3606480430626
MPN: A9C15424
Loyalty points:
6
Price: £ 34.00 Excl. VAT
Categories
Specifications
| Function | Remote drive |
| Voltage type | DC |
| Rated voltage | 24 V |
| Device fitting | Contactor/relay |
| Rated switch current | 0.002 A |
| Number of fault-signal switches | 0 |
| Width in number of modular spacings | 1 |
| Number of contacts as change-over contact | 0 |
