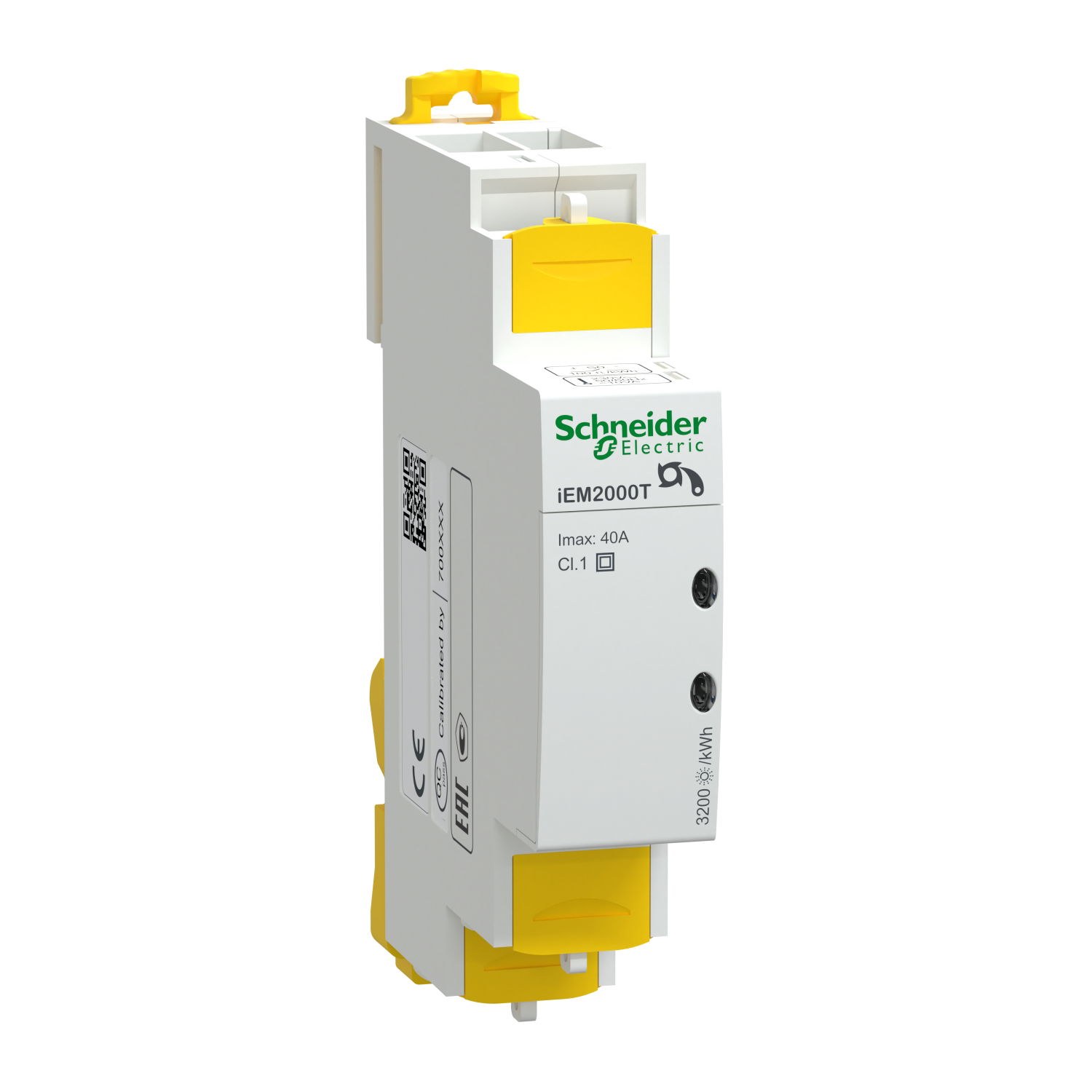

Modular single phase power meter iEM2000T - 230V - 40A without display

The Acti9 iEM2000 series energy meters offer an attractive range of single-phase DIN rail-mounted energy meters fitted for sub-billing or partial meter applications. This product family can be used to monitor power consumption for each floor, office sector, or unit and allocate energy cost for building management. This version do not include a display. Providing Class 1 active energy accuracy per IEC 62053-21 standard, the meter will measure Active Energy. Suitable for a 230VAC network, with a supply voltage range of 184 to 276 VAC at 50Hz or 60Hz. Direct connect current measurement up to 40A with 32 samples per cycle only in a Single Phase and Neutral configuration. Communication is assured by 1 pulse output. Product dimensions are as follows: width 18 mm, depth 67 mm, height 95 mm and product weight 73 g. Compatible with power management software to take advantage of the IoT digital power installation.
