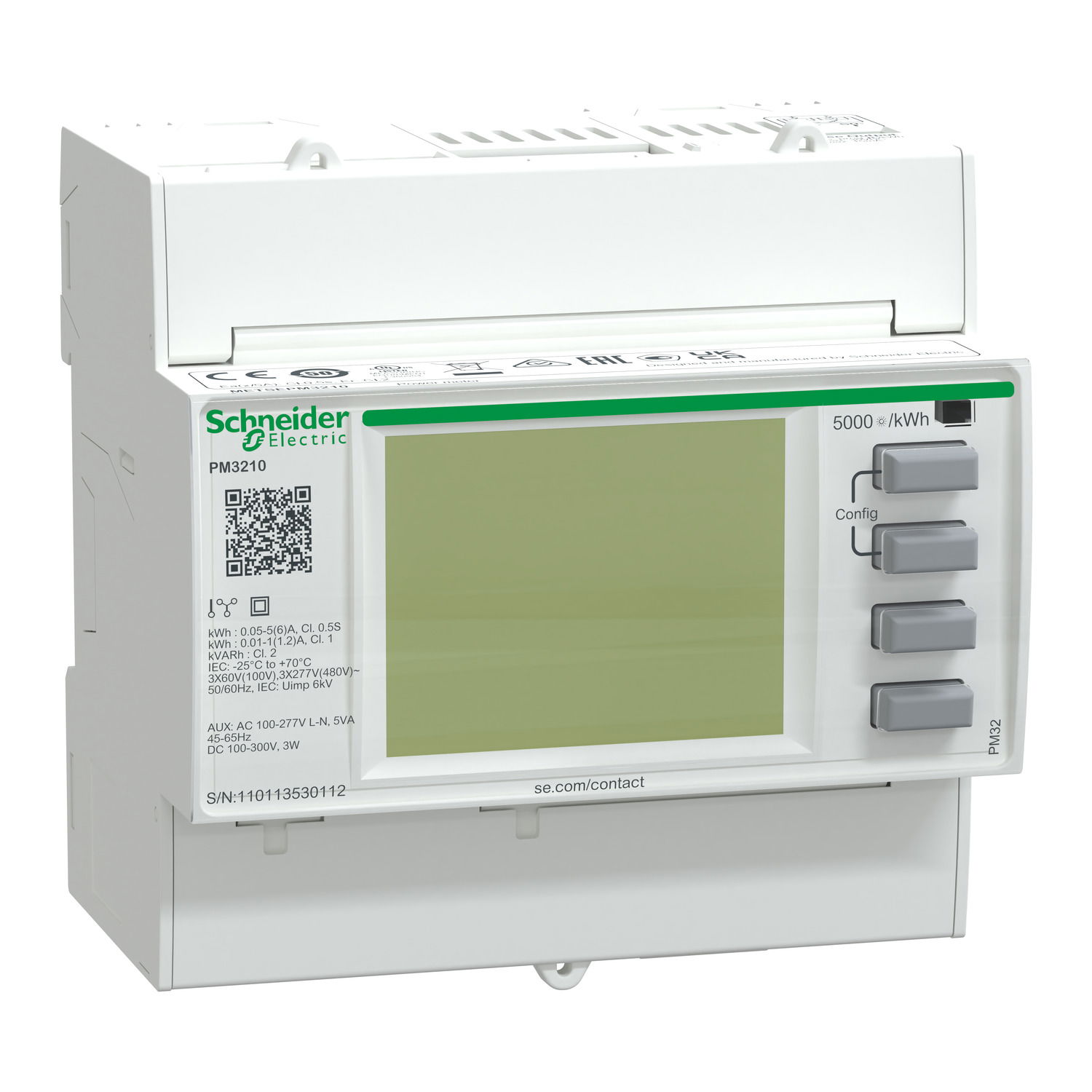

PM3210 power meter - output digital and pulse

Link copied
SKU
EAN
GTIN
MPN

PM3210 power meter - output digital and pulse by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and Rexel Group. It is currently in stock at all of them. Trade price £490.81 excl. VAT. Voltimum+ members earn 56 points per unit.

PM3210 DIN mount energy meter with a 128 by 96 pixel backlit, LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 32 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor, Apparent Power, Total Harmonic Distortion and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 277VAC, 173 to 480VAC and 100 to 300VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase, Single Phase and Neutral or Three Phase configurations. Direct measurement range is 50 to 570VAC, with an external VT 570 to 999000VAC. The range of measurement voltage between Phases is 80 to 570VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 50 to 330VAC at 45 to 65 Hz. This meter has no communication input capability. Support for one digital output. The meter offers event recording with up to 5 alarms. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.76in (70 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).

Voltimum+ Loyalty Programme Loyalty points: 56

Price: £ 490.81 Excl. VAT

Specifications

Depth 70 mm
Model Measurement transformer
Width 90 mm
Height 95 mm
Display LCD
Pole type Three conductor/four conductor
Voltmeter yes
Calibrated no
Power factor yes
Pulse counter no
Remote display no
Mounting method DIN rail
Sampling frequency 3200 Hz
Nominal current (In) 5 A
Step angle (cos phi) no
Harmonics measurement no
Supply voltage AC 50 Hz
With firmware signature no
Number of analogue inputs 0
Number of analogue outputs 0
Display resolution (vertical) 96 px
Measuring range for frequency
Number of Ethernet connections 0
With audit logging (audit log) no
Supporting protocol for PROFIBUS no
Wth communication interface M-Bus no
Supporting protocol for PROFINET IO no
Number of current measurement inputs 6
Degree of protection (IP), front side IP40
With Role Based Access Control (RBAC) no
Supporting protocol for other bus systems no
Connectable conductor cross section solid-core
Accuracy class active energy according to IEC 62053-22 -
