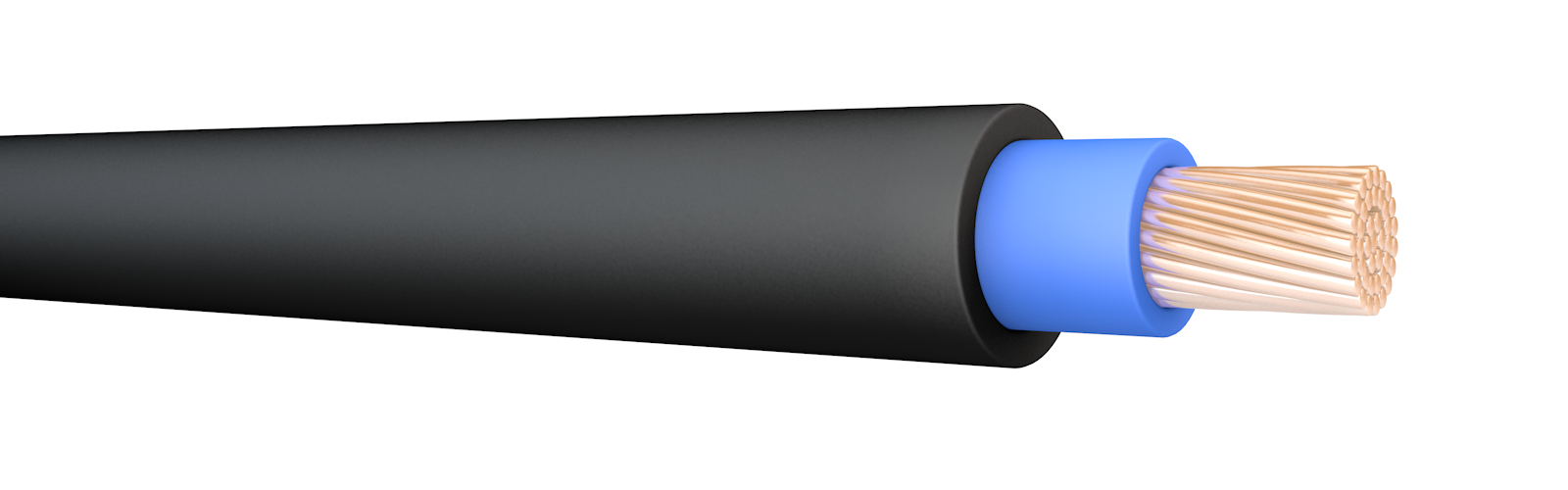

BS7889 1x300 Cut Black XLPE Insulated, PVC Sheathed Single Core Cable. BS 7889. 600/1000 V

Name: BS7889 1x300 Cut Black XLPE Insulated, PVC Sheathed Single Core Cable. BS 7889. 600/1000 V
Brand: Prysmian
SKU: 20144522

Prysmian BS 7889 is an unarmoured industrial single core wiring cable with cross linked polyethylene insulation and PVC sheath.

Product identifiers

SKU: 20144522

EAN: 5019921205963

GTIN: 5019921205963

Specifications

Screen	no
Weight	3100
Lead sheath	no
Cable geometry	Round
Number of cores	1
Conductor surface	Bare
Nominal voltage U	1000
Conductor category	Class 2 = stranded
Conductor material	Copper
Nominal voltage U0	600
Shape of conductor	Round
Colour outer sheath	Black
Core identification	Colour
Concentric conductor	None
Material outer sheath	Polyvinyl chloride (PVC)
Outer diameter approx.	29
With rodent protection	no
Armouring/reinforcement	None
Material core insulation	Polyolefin
Max. conductor temperature	90
Specification core insulation	Crosslinked polyethylene (XLPE)
Conductor resistance at 20 °C	0.0601
Suitable as high-voltage cable	no
Nominal cross section conductor	300
Suitable as medium-voltage cable	no
Certified as airport lighting cable	no
Certified for shipboard application	no
Low smoke according to EN IEC 61034-2	no
Suitable for underground installation	no
Core identification according to HD 308 S2	yes
Oil resistant according to EN IEC 60811-404	no
Permitted cable outer temperature during assembling/handling
