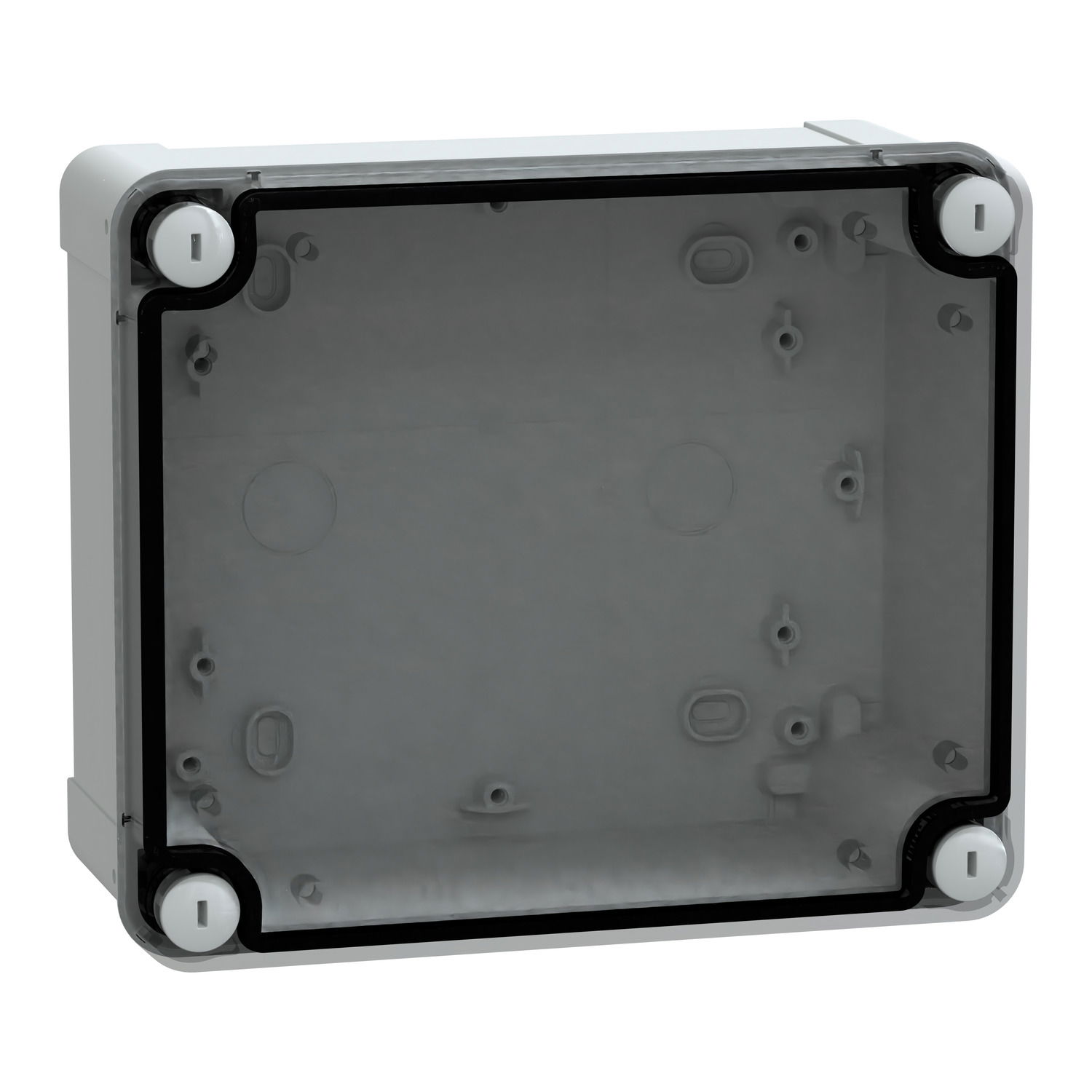

ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Transp.cover H20
1 / 2
ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Transp.cover H20
ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Transp.cover H20 by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and City Electrical Factors. It is currently in stock at 2 of them. Trade prices range from £22.58 to £25.06 excl. VAT. Voltimum+ members earn 3 points per unit.
PanelSeT TBS industrial ABS box with transparent cover H20. Int is 175 x 150 x 80 mm. Ext is 193 x 164 x 87 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
Product identifiers
SKU: NSYTBS19168T
EAN: 3606480165467
GTIN: 3606480165467
MPN: NSYTBS19168T
Loyalty points:
3
Price range: £ 22.58 - £ 25.06 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 87 mm |
| Width | 164 mm |
| Colour | Grey |
| Height | 192 mm |
| With lock | no |
| RAL-number | 7035 |
| Cover model | Closed |
| Inner depth | 80 mm |
