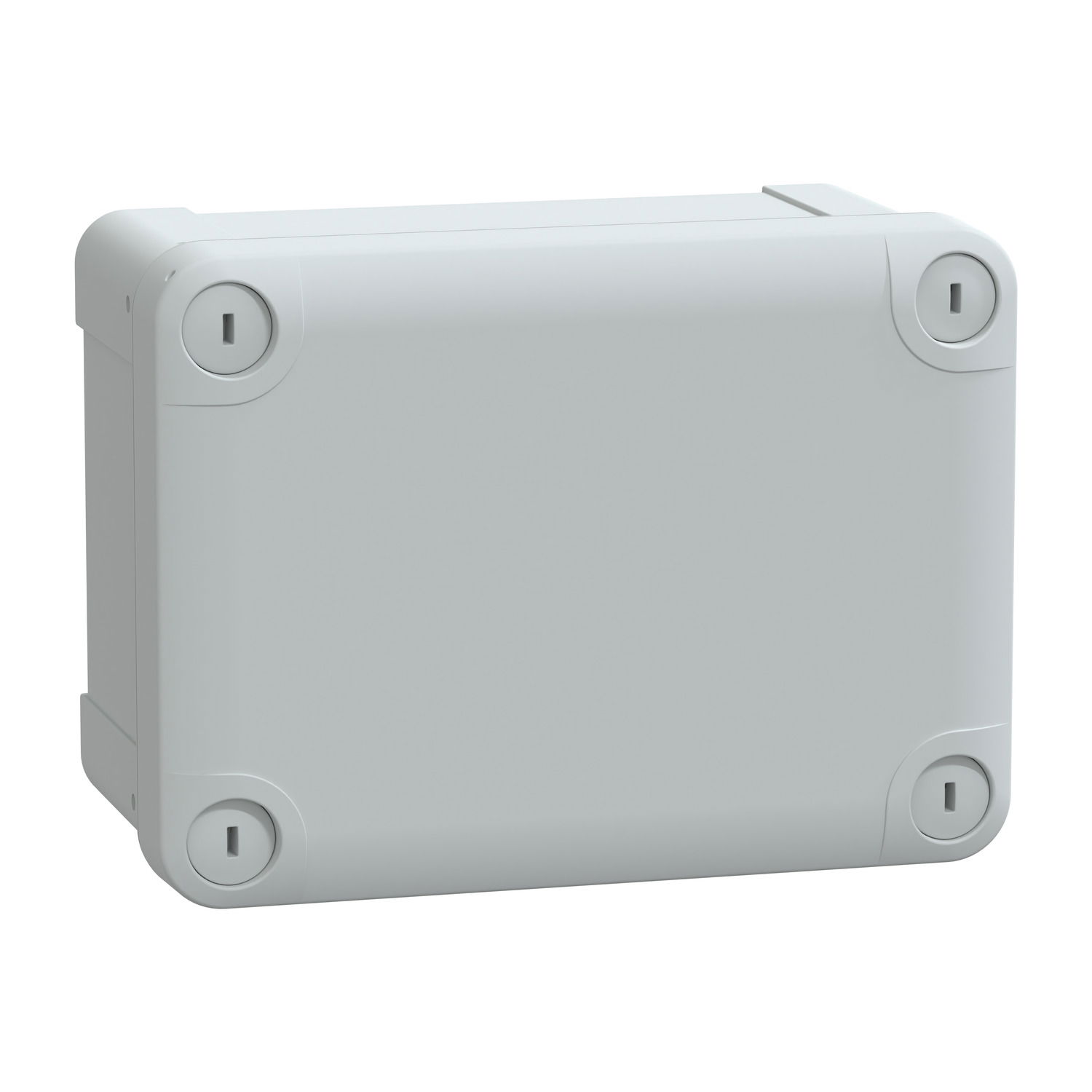

ABS box IP66 IK07 RAL7035 Int.H150W105D80 Ext.H164W121D87 Opaque cover H20
PanelSeT TBS industrial ABS box with opaque cover H20. Int is 150 x 105 x 80 mm. Ext is 164 x 121 x 87 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
Product identifiers
SKU: NSYTBS16128
EAN: 3606480165276
GTIN: 3606480165276
MPN: NSYTBS16128
Loyalty points: 5
Price range: £ 10.87 - £ 13.73 Excl. VAT
Categories
Features
|
Depth
|
87 mm
|
|
Width
|
121 mm
|
|
Colour
|
Grey
|
|
Height
|
164 mm
|
|
With lock
|
FALSE
|
|
RAL-number
|
7035
|
|
Cover model
|
Closed
|
|
Inner depth
|
80 mm
|
|
Type of door
|
None
|
|
Built-in depth
|
-
|
|
Number of rows
|
0
|
|
Impact strength
|
IK07
|
|
Mounting method
|
Surface mounted
|
|
Housing material
|
Plastic
|
|
Type of covering
|
Cover
|
|
Circuit integrity
|
None
|
|
Number of modules
|
0
|
|
Extension possible
|
FALSE
|
|
Surface protection
|
Untreated
|
|
With mounting plate
|
FALSE
|
|
Nominal current (In)
|
-
|
|
Transparent cover/door
|
FALSE
|
|
Number of conduit inlets
|
2
|
|
Suitable for outdoor use
|
TRUE
|
|
Degree of protection (IP)
|
IP66
|
|
Degree of protection (NEMA)
|
4
|
|
Cover with overpressure release
|
FALSE
|
|
Material plate thickness cabinet
|
12.5 mm
|
|
Suitable for lightning protection
|
TRUE
|
|
Material plate thickness door/cover
|
12.5 mm
|
|
Width in number of modular spacings
|
-
|
|
Number of openings for flange plates
|
0
|
|
Protection class according to IEC 61140
|
II
|
