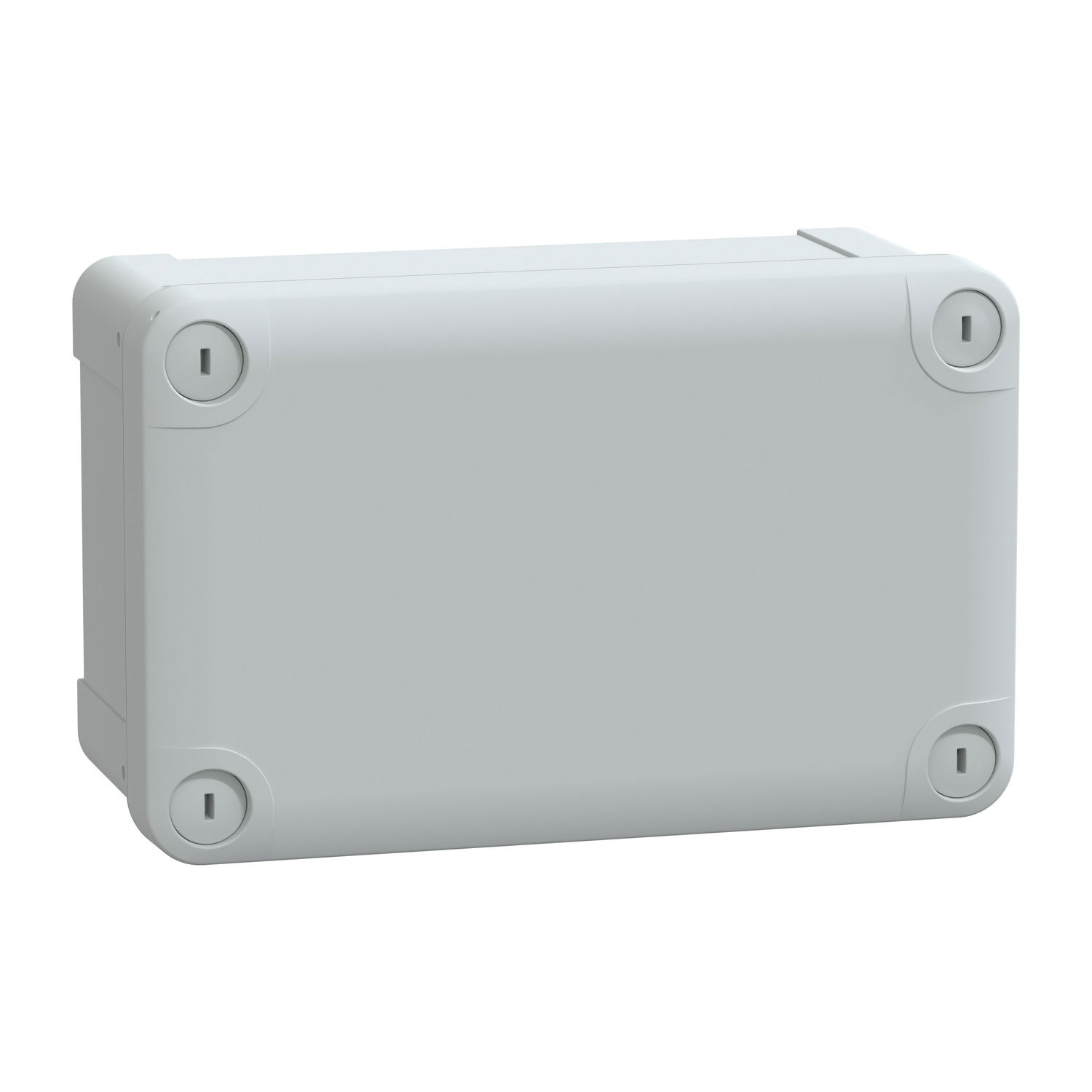

ABS box IP66 IK07 RAL7035 Int.H175W105D80 Ext.H192W121D87 Opaque cover H20
1 / 2
Popularity
Top 30%
More about Popularity
Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
ABS box IP66 IK07 RAL7035 Int.H175W105D80 Ext.H192W121D87 Opaque cover H20
ABS box IP66 IK07 RAL7035 Int.H175W105D80 Ext.H192W121D87 Opaque cover H20 by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £11.45 to £18.53 excl. VAT. Voltimum+ members earn 2 points per unit.
PanelSeT TBS industrial ABS box with opaque cover H20. Int is 175 x 105 x 80 mm. Ext is 192 x 121 x 87 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
Product identifiers
SKU: NSYTBS19128
EAN: 3606480165283
GTIN: 3606480165283
MPN: NSYTBS19128
Loyalty points:
2
Price range: £ 11.45 - £ 18.53 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 87 mm |
| Width | 121 mm |
| Colour | Grey |
| Height | 192 mm |
| With lock | no |
| RAL-number | 7035 |
| Cover model | Closed |
| Inner depth | 80 mm |
