ABS box IP66 IK07 RAL7035 Int.H175W150D100 Ext.H193W164D105 Transp.cover H40
1 / 2
Popularity
Top 60%
More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

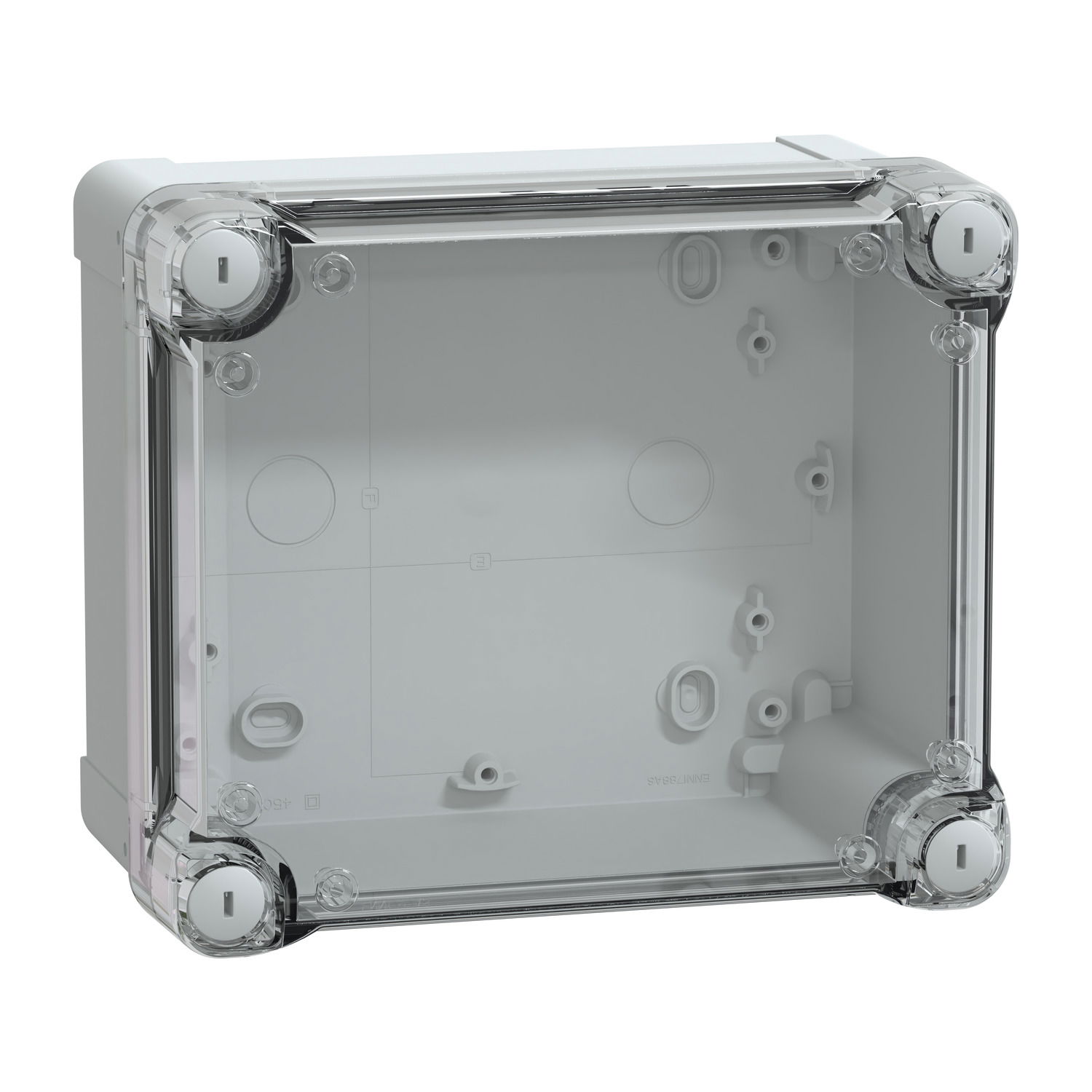

ABS box IP66 IK07 RAL7035 Int.H175W150D100 Ext.H193W164D105 Transp.cover H40
ABS box IP66 IK07 RAL7035 Int.H175W150D100 Ext.H193W164D105 Transp.cover H40 by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and City Electrical Factors. It is currently in stock at 2 of them. Trade prices range from £23.00 to £25.79 excl. VAT. Voltimum+ members earn 3 points per unit.
PanelSeT TBS industrial ABS box with transparent cover H40. Int is 175 x 150 x 100 mm. Ext is 193 x 164 x 105 mm. Wall mounted enclosure. High transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
Product identifiers
SKU: NSYTBS191610HT
EAN: 3606480165474
GTIN: 3606480165474
MPN: NSYTBS191610HT
Loyalty points:
3
Price range: £ 23.00 - £ 25.79 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 105 mm |
| Width | 164 mm |
| Colour | Grey |
| Height | 193 mm |
| With lock | no |
| RAL-number | 7035 |
| Cover model | Closed |
| Inner depth | 100 mm |
