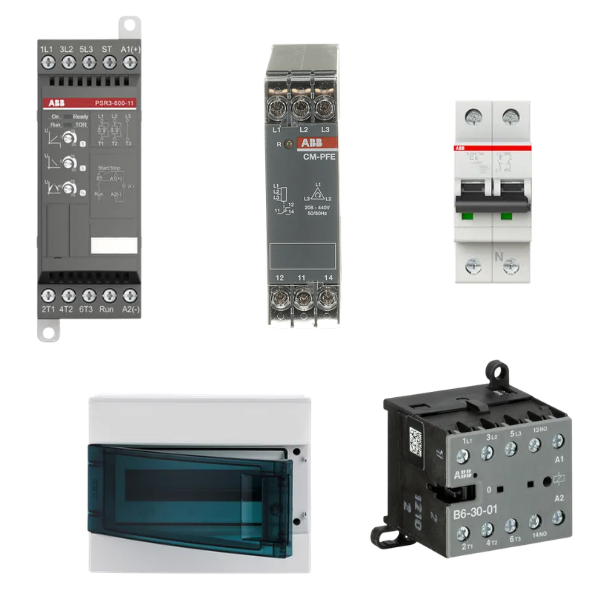

Small Motor Soft Start kit

For single-phase motor installations requiring controlled starting and comprehensive protection.

This bundle provides everything needed to implement a complete soft start solution for small single-phase motors up to 1.5kW. Built around the ABB PSR3 softstarter, it delivers controlled motor acceleration to reduce mechanical stress and inrush current at startup — extending motor life and reducing wear on connected equipment.

The bundle includes a B6 mini contactor for load switching, a CM-PFE phase sequence monitoring relay for upstream phase protection, an S200 Type C MCB for short-circuit protection, and an IP65 rated junction box for a neat, weatherproof installation. All components are fully compatible and appropriately rated for use together.

Suitable for pumps, fans, compressors, and other small motor applications.

Purchase Bundle

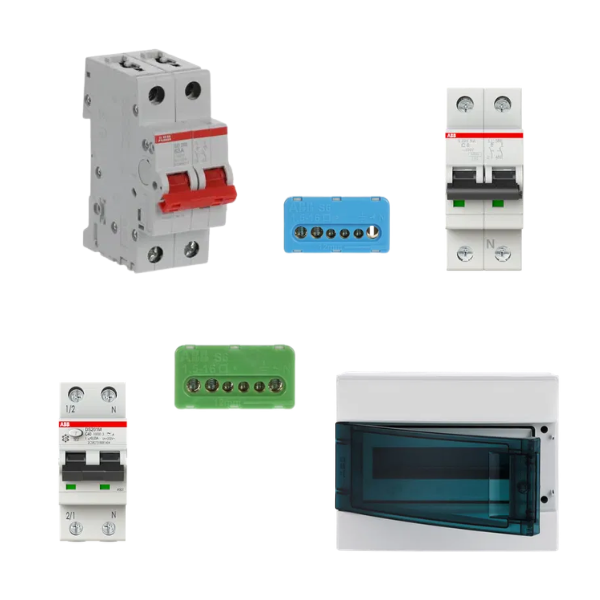

Sub-Distribution & Isolation Kit

For single-phase sub-distribution boards, outbuilding supplies, and small commercial installations.

A compact and complete protection and isolation solution suitable for smaller single-phase distribution applications. The SD202/63 switch disconnector provides safe, reliable isolation of the incoming supply, while the DS201 1P+N RCBO delivers combined overcurrent and 30mA Type A residual current protection to current BS 7671 standards.

Downstream circuit protection is provided by an S200 Type C MCB, with dedicated PE and N terminal blocks included for clean, compliant earth and neutral termination. The MISTRAL65 18 module IP65 consumer unit provides a robust, weatherproof housing suitable for surface-mounted installations in demanding environments.

Suitable for garden buildings, outbuilding supplies, small commercial units, and single-phase sub-distribution applications. Note: the 10A RCBO rating makes this bundle most appropriate for installations with modest load requirements.

Purchase Bundle

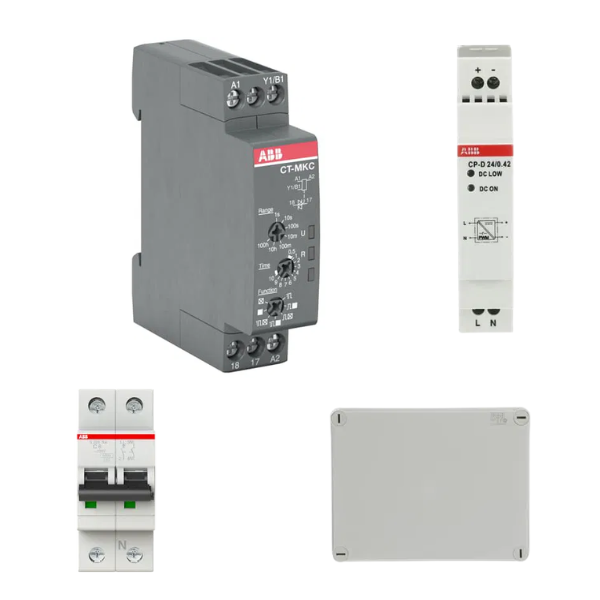

Time Control Kit

For time-switched circuit control in building services, lighting, and HVAC applications.

A straightforward and versatile time control solution centred on the ABB CT-MKC.31 multifunctional solid-state time relay. With a wide input voltage range of 12-240V AC/DC and multiple timing functions, the CT-MKC.31 provides reliable and flexible control across a broad range of switching applications.

The bundle includes an S200 Type C MCB for upstream circuit protection, a CP-D 24V DC power supply for control circuit supply, and an IP65 junction box for surface-mounted installation. A clean, compact solution for time-controlled switching without unnecessary complexity.

Suitable for lighting control, ventilation switching, heating systems, and general time-based automation.

Purchase Bundle

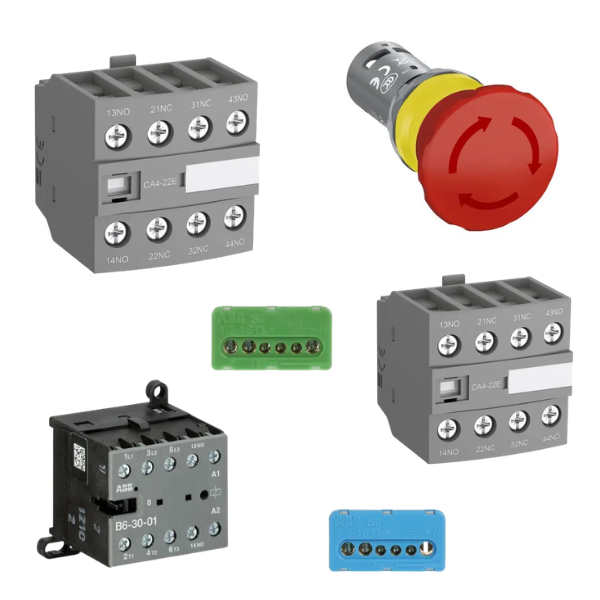

Emergency Stop & Control Kit

For basic machine control circuits requiring emergency stop functionality and flexible switching.

A complete machine control bundle providing emergency stop capability, load switching, and flexible auxiliary contact configuration in a single kit. The CE4T emergency stop button interfaces with the B6 mini contactor via the CA4 and CAL5 auxiliary contact blocks, enabling immediate power disconnection to connected equipment when activated.

Three auxiliary contact blocks are included to provide flexible configuration options for signalling, interlocking, and status indication across a range of control circuit arrangements. An S200 Type C MCB provides upstream short-circuit protection, with PE and N terminal blocks for safe earth and neutral termination, all housed within an IP65 rated junction box.

Note: this bundle is suitable for basic machine control applications. Installations requiring formal safety integrity ratings (SIL/PLe) will require additional safety-rated components.

Suitable for light machinery, conveyor systems, and general industrial control panel applications.

Purchase Bundle
