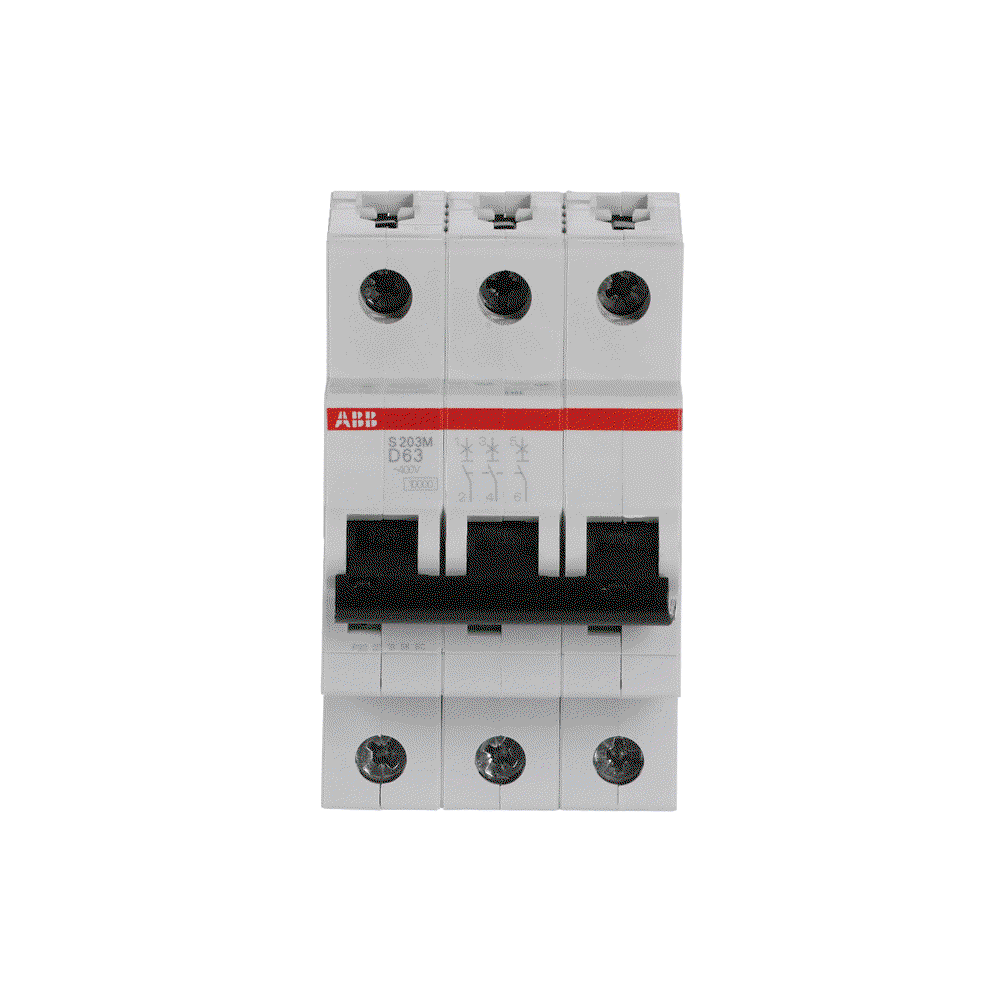

Miniature Circuit Breaker - S200M - 3P - 63 A - D - (AC) 10 kA
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
Product identifiers
SKU: 2CDS273001R0631
EAN: 4016779601399
GTIN: 4016779601399
MPN: S203M-D63
Loyalty points:
55
Price range: £ 102.51 - £ 119.20 Excl. VAT
Categories
Features
|
Frequency
|
|
|
Power loss
|
14.4
|
|
Voltage type
|
AC/DC
|
|
Rated current
|
63
|
|
Rated voltage
|
400
|
|
Built-in depth
|
69
|
|
Explosion-proof
|
no
|
|
Pollution degree
|
3
|
|
Over voltage category
|
3
|
|
Current limiting class
|
3
|
|
Release characteristic
|
D
|
|
Number of poles (total)
|
3
|
|
Degree of protection (IP)
|
IP20
|
|
Number of protected poles
|
3
|
|
Flush-mounted installation
|
no
|
|
Rated insulation voltage Ui
|
440
|
|
Additional equipment possible
|
yes
|
|
Width in number of modular spacings
|
3.0
|
|
Ambient temperature during operating
|
|
|
Rated impulse withstand voltage Uimp
|
4
|
|
Concurrently switching neutral conductor
|
no
|
|
Connectable conductor cross section solid-core
|
|
|
Connectable conductor cross section multi-wired
|
|
|
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
|
10
|
|
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
|
-
|
|
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
|
25
|
|
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
|
15
|
