ABB
Popularity Top 10% More about Popularity
Among the top 10% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

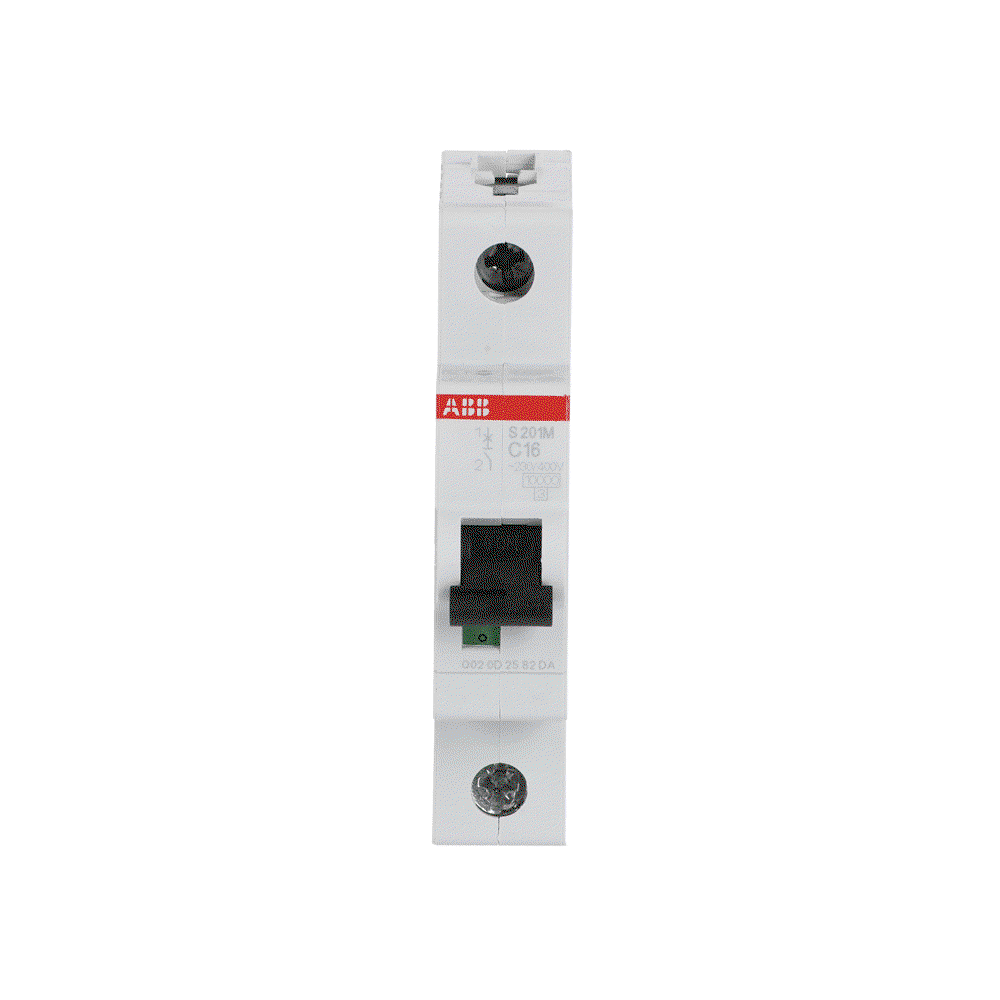

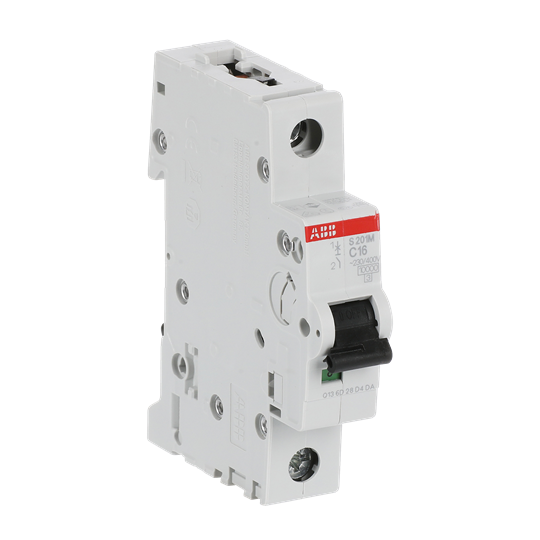

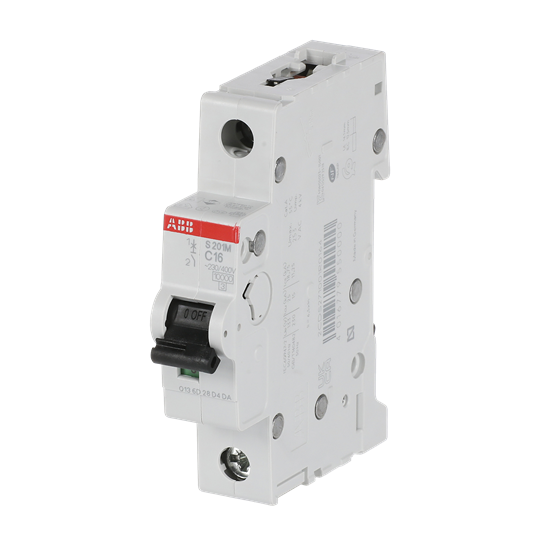

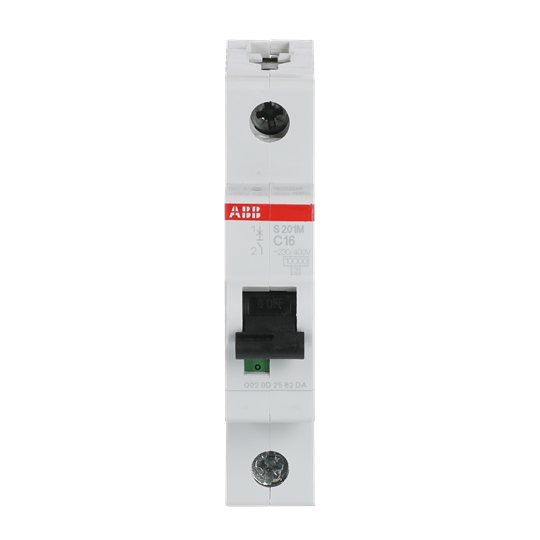

Miniature Circuit Breaker - S200M - 1P - 16 A - C - (AC) 10 kA

Miniature Circuit Breaker - S200M - 1P - 16 A - C - (AC) 10 kA by ABB is listed by 6 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 3 more. It is currently in stock at 5 of them. Trade prices range from £16.52 to £22.95 excl. VAT. Voltimum+ members earn 10 points per unit.

System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.

Product identifiers

SKU: 2CDS271001R0164
EAN: 4016779550000
GTIN: 4016779550000
MPN: S201M-C16

Voltimum+ Loyalty Programme Loyalty points: 10

Price range: £ 16.52 - £ 22.95 Excl. VAT

Categories

Circuit Breakers MCBs Switchgear & Circuit Protection

Specifications

Frequency
Power loss 2.5
Voltage type AC/DC
Rated current 16
Rated voltage 230
Built-in depth 69
Explosion-proof no
Pollution degree 3
Current limiting class 3
Number of poles (total) 1
Number of protected poles 1
Rated insulation voltage Ui 440
Width in number of modular spacings 1
Rated impulse withstand voltage Uimp 4
Connectable conductor cross section solid-core
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V -

Documents

Deeplink product page

Open

Deeplink REACH

9AKK107492A1906_en_K_Declaration regarding the REACH-Regulation.pdf

Open

Dimensioned drawing

2CDC022007F0010_dimensioned drawing S200, S200M.pdf

Open

Instructions for use

2CDS207104P0002_instruction manual_202302_300dpi.pdf

Open

Product data sheet

Open

Declaration RoHS

9AKK108472A0372_en_A_RoHS Exemption Information.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

2CDK403001D0607_EU_S200_Rev_J.pdf

Open

Declaration EPD (Environmental Product Declaration)

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family.pdf

Open
