Multilevel installation terminal block with push-button 2.5 mm² gray

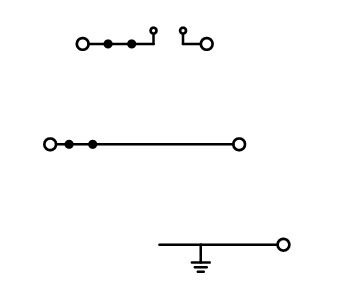

Multilevel installation terminal block; with push-button; 2.5 mm²; Carrier terminal block without knife; P1/P2/PE; brown upper-deck; black middle-deck; green-yellow lower deck; with end plate; Push-in CAGE CLAMP®; 2,50 mm²; gray
Product identifiers
SKU: 2203-6660/2203-6693
EAN: 4066966842760
GTIN: 4066966842760
MPN: 2203-6660/2203-6693
Price: £ 0.00 Excl. VAT
Categories
Features
|
Depth
|
46.5
|
|
Width
|
6.2
|
|
Height
|
109.7
|
|
PE-function
|
yes
|
|
Basic colour
|
Grey
|
|
Rated voltage
|
250
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Rated current In
|
20
|
|
N function possible
|
yes
|
|
Number of potentials
|
3
|
|
Operating temperature
|
-35 - 85
|
|
Closing plate required
|
no
|
|
With N-disconnect slide
|
no
|
|
Material insulation body
|
Thermoplastic
|
|
Type of electrical connection 1
|
Spring clamp connection
|
|
Type of electrical connection 2
|
Spring clamp connection
|
|
Connectable conductor cross section solid-core
|
0.75 - 4
|
|
Connectable conductor cross section multi-wired
|
0.25 - 2.5
|
|
Inflammability class of insulation material according to UL94
|
V0
|
|
Connectable conductor cross section fine-strand with cable end sleeve
|
0.75 - 2.5
|
|
Connectable conductor cross section fine-strand without cable end sleeve
|
0.25 - 4
|
