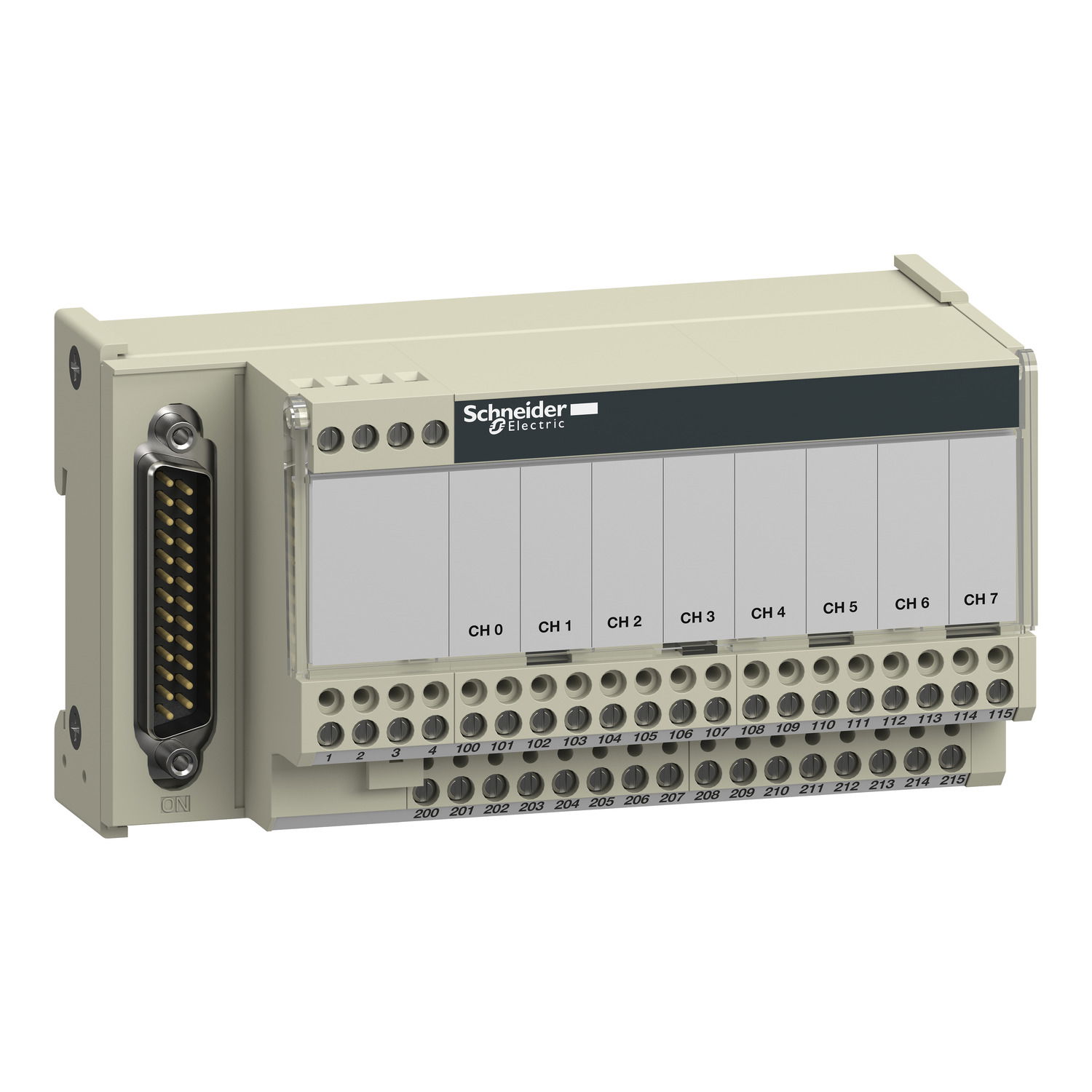

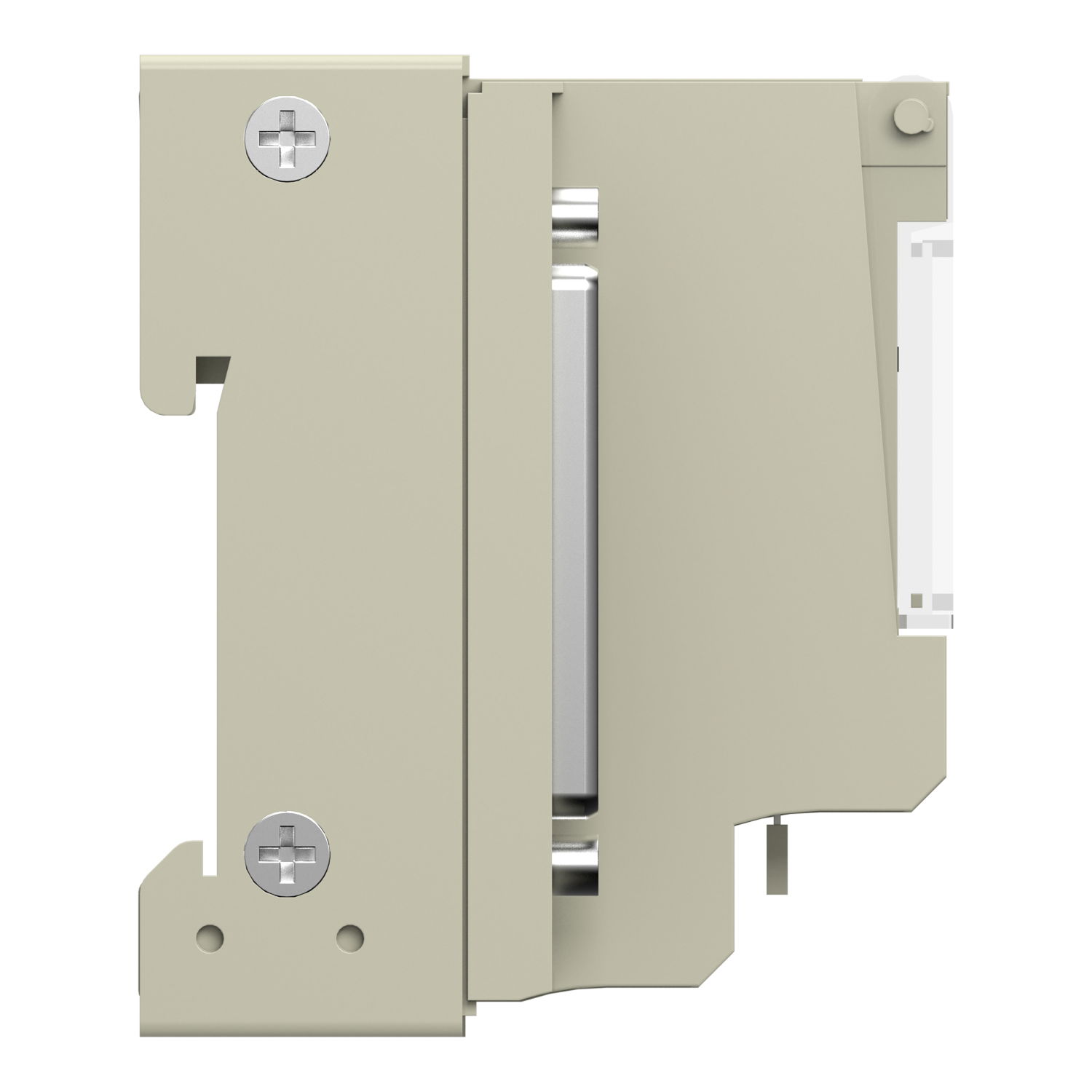

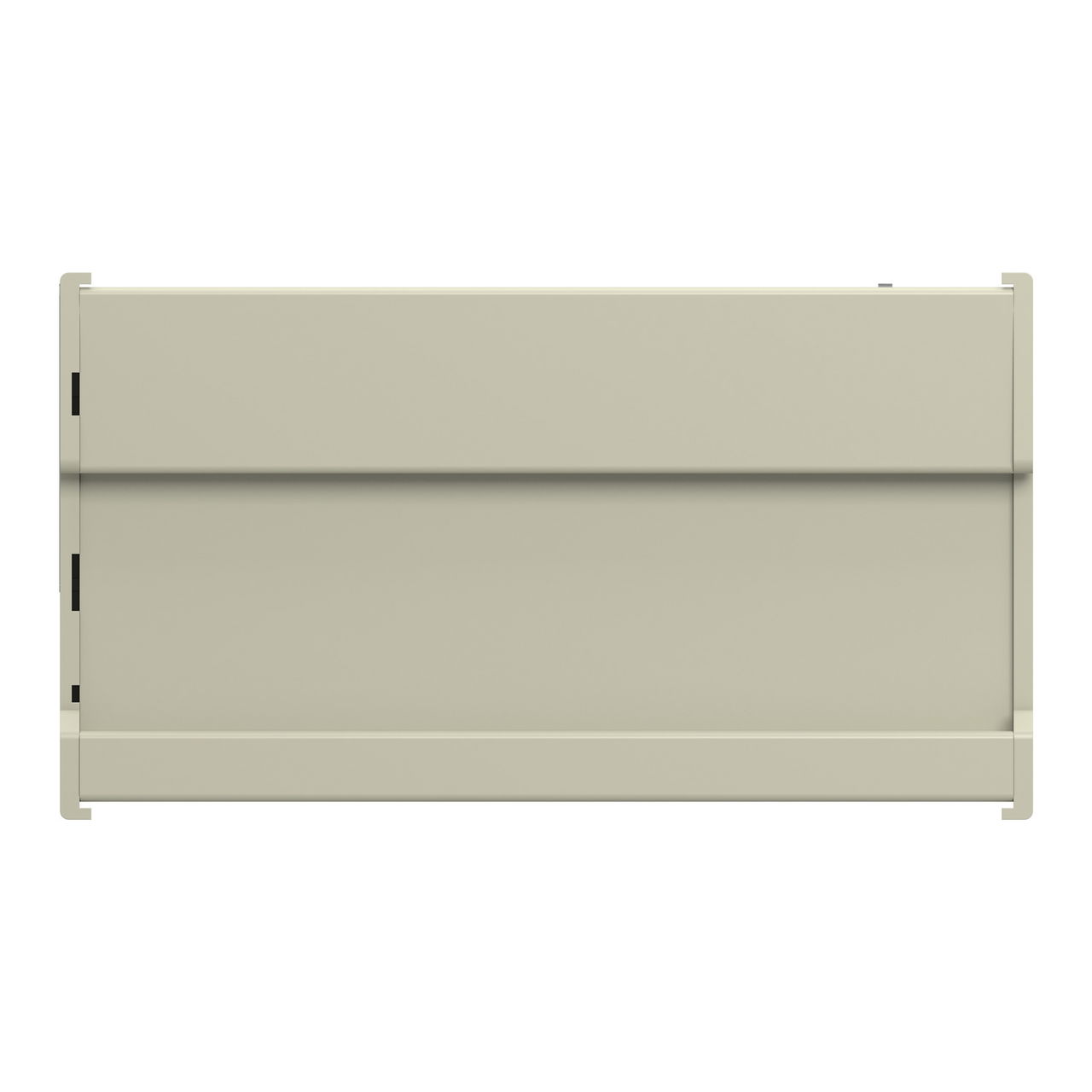

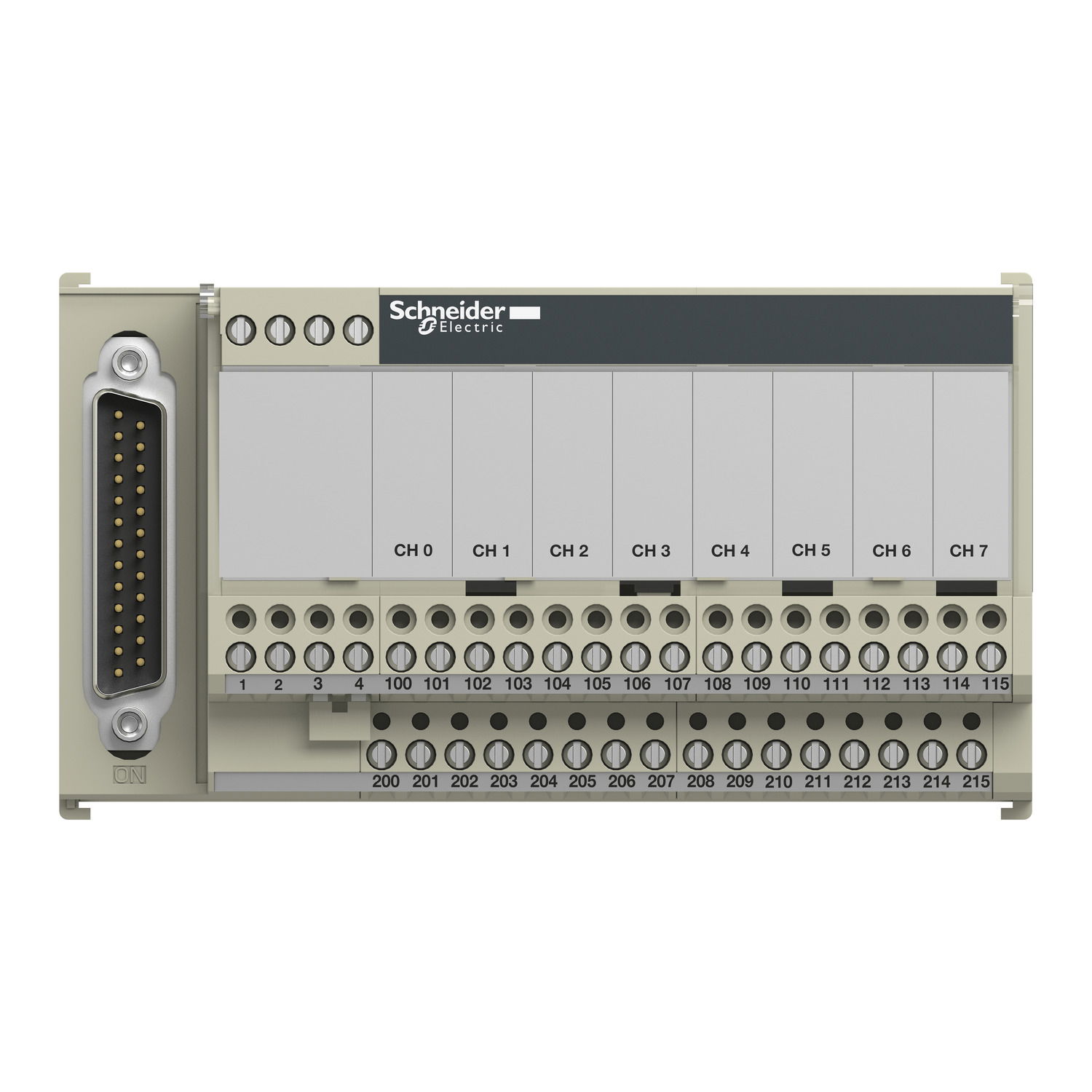

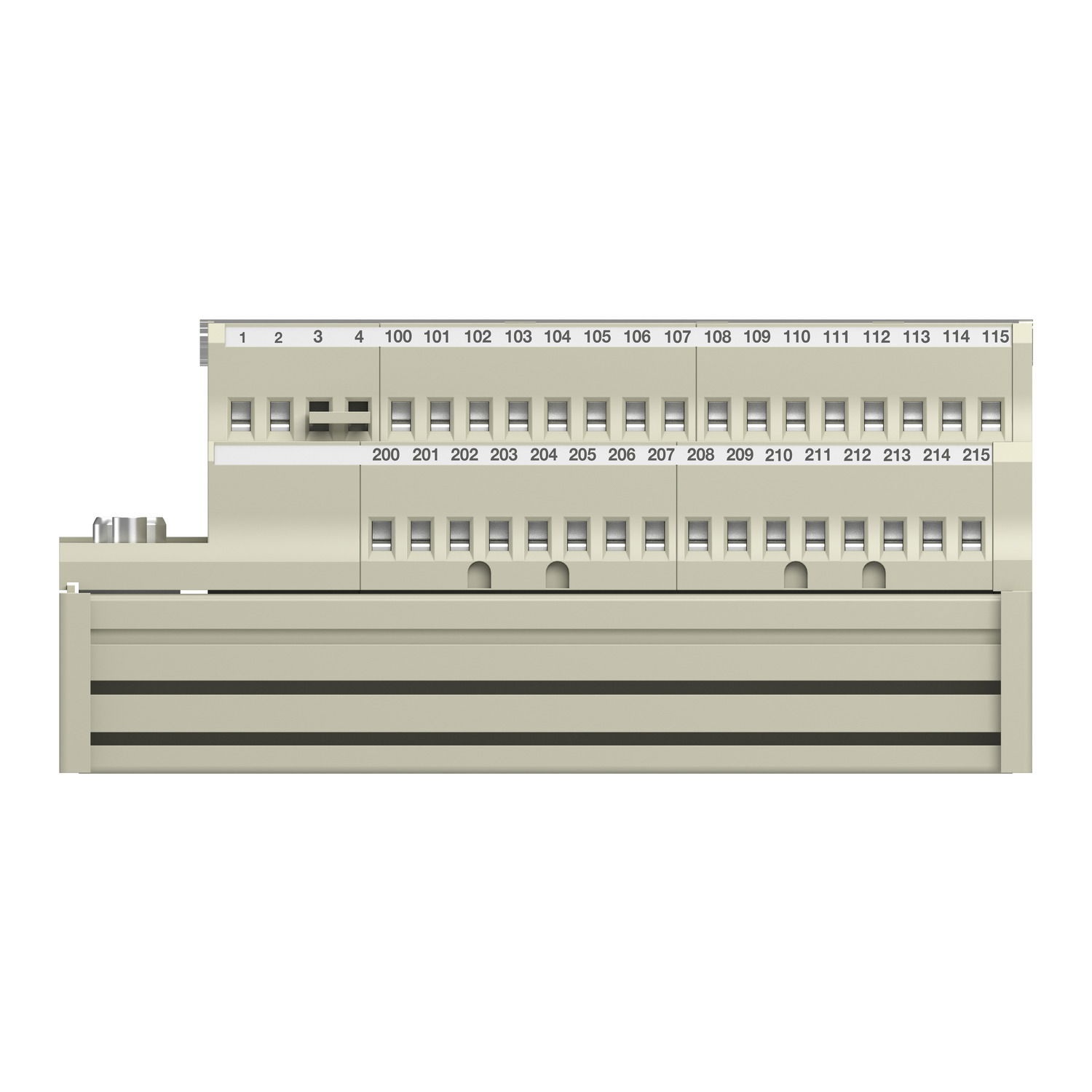

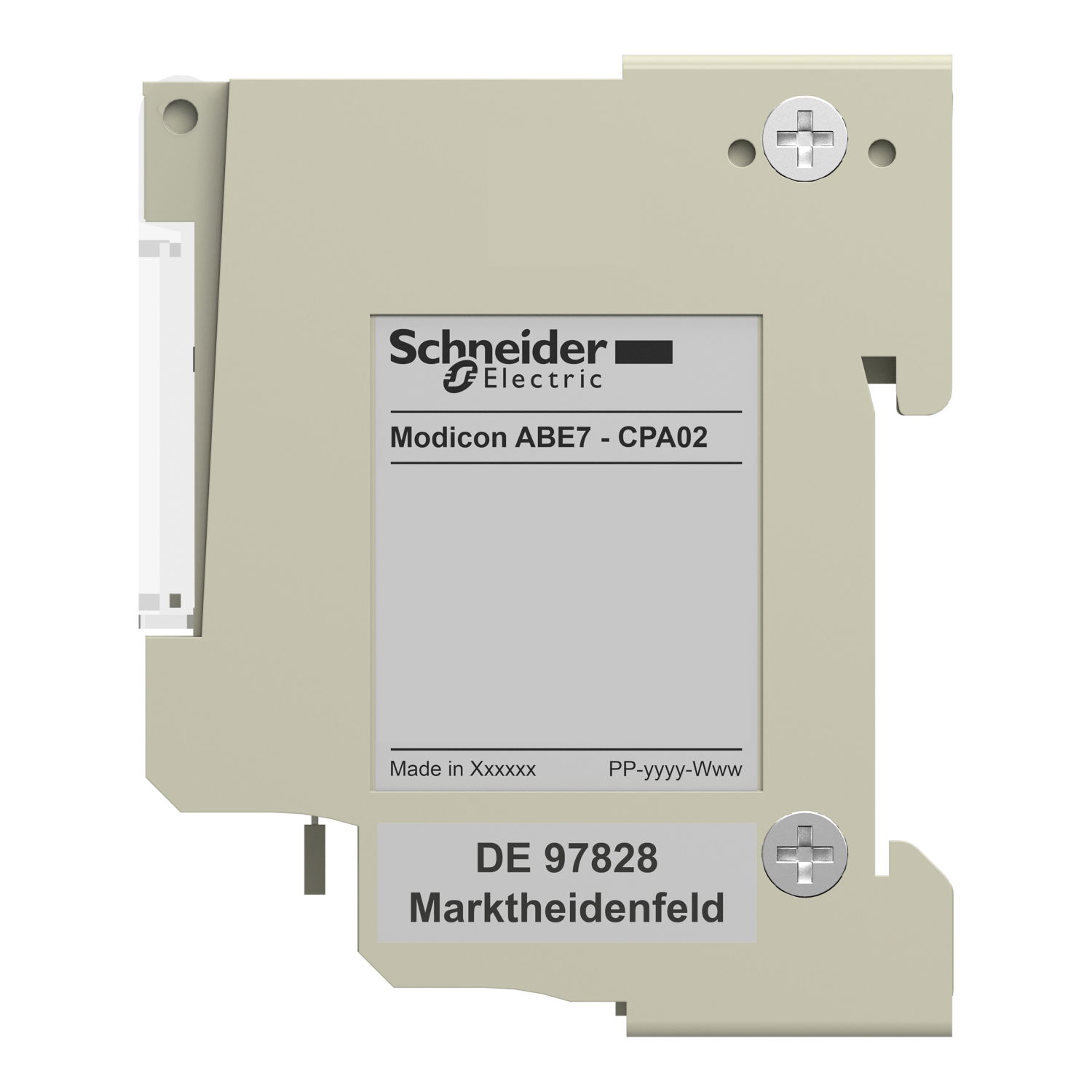

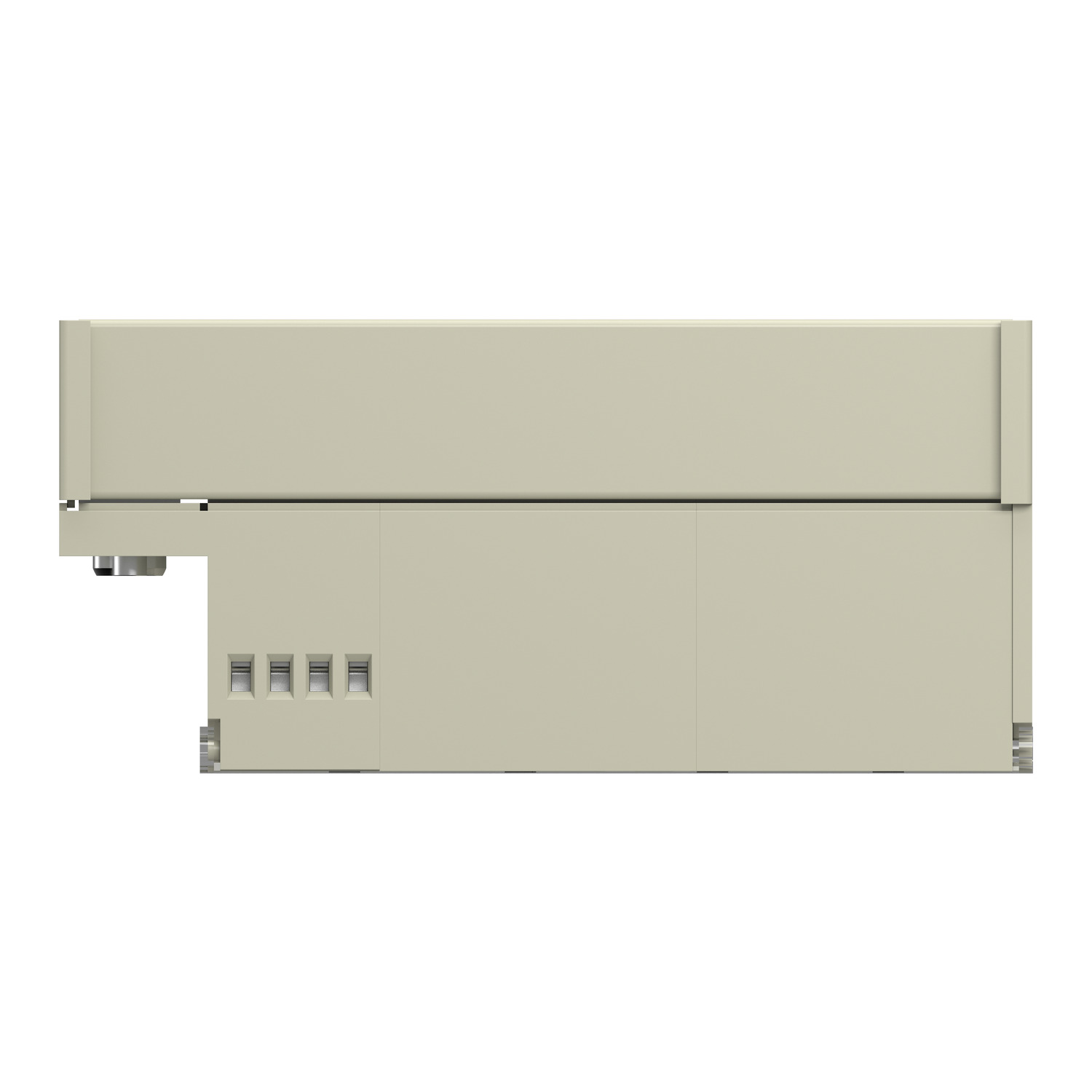

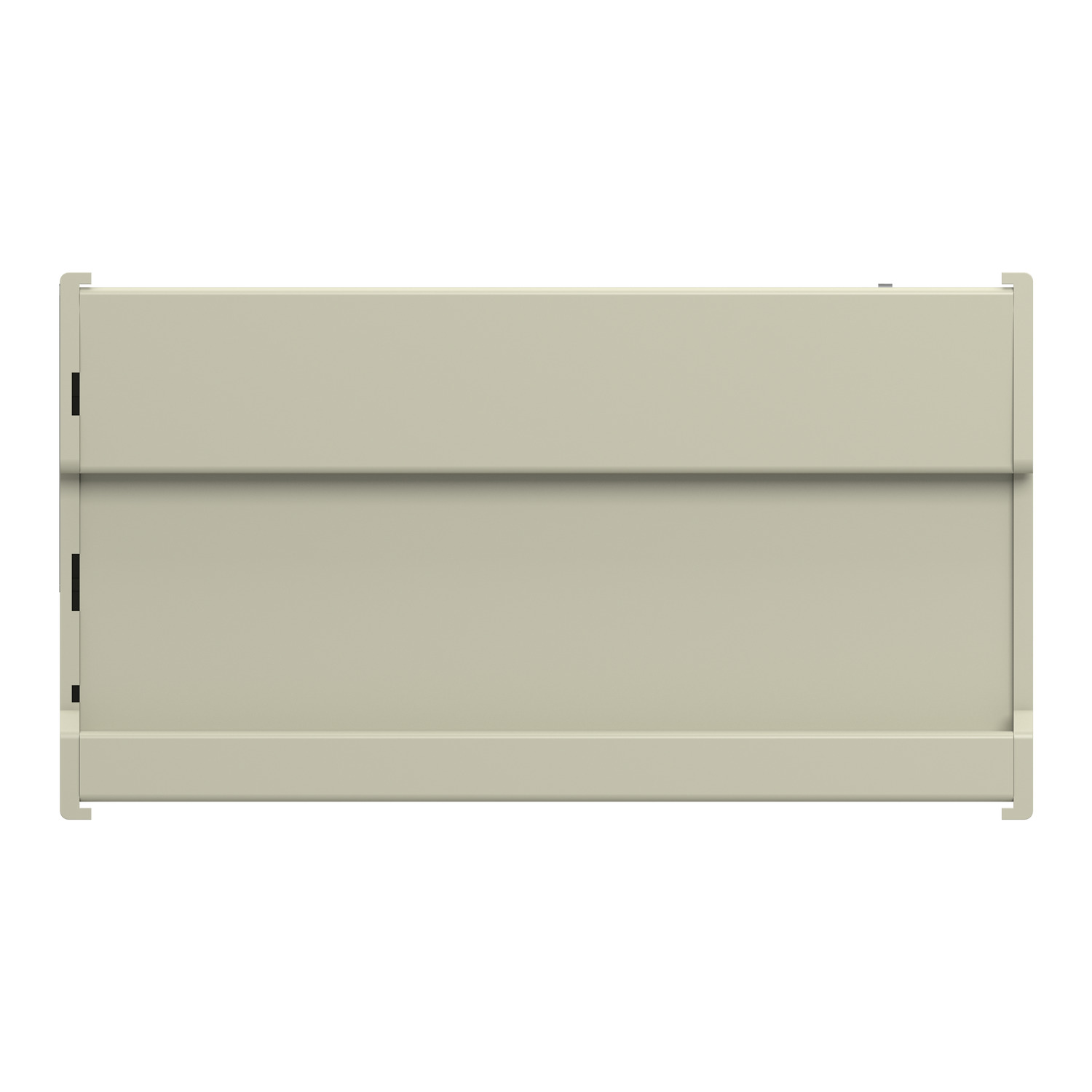

Connection sub-base ABE7 - for passive distribution of 8 channels

Link copied
SKU
EAN
GTIN
MPN

Connection sub-base ABE7 - for passive distribution of 8 channels by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £87.50 to £88.84 excl. VAT. Voltimum+ members earn 1 point per unit.

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This product consists in a connection sub-base for passive distribution of 8 channels. It is a sub base with a control circuit voltage of 24V DC. The distributed analog input channels are isolated from one another. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is furnished with screw type terminals for electrical connection and 25-way D-Sub (DB-25) connection to PLC. It is an IP20 rated product. It weighs 0.29kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. This connection sub-base is suitable for use with Modicon X80 IO modules such as BMXAMI0800, BMXAMI0810, BMEAHI0812 and BMXAMO0802. It is delivered in 1 package (PCE type). The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Voltimum+ Loyalty Programme Loyalty points: 1

Price range: £ 87.50 - £ 88.84 Excl. VAT

Specifications

Depth 67 mm
Width 125 mm
Height 70 mm
Rated voltage -
Housing colour Grey
Housing material Plastic, metallized
Pollution degree 2
Operating voltage
With LED indication no
Operating temperature
Material insulation body Other
Degree of protection (IP) IP20
Connection for NPN-sensors no
Material of contact surface Other
Number of sensor-/actuator-slots 1
Explosion safety category for gas None
Connectable conductor cross section
Thread sleeves sensor/actuator slots Other
Number of poles sensor/actuator slots 8
Type of branches for sensor-/actuator cables Other
Fix cable version suitable for cable guide chain no
