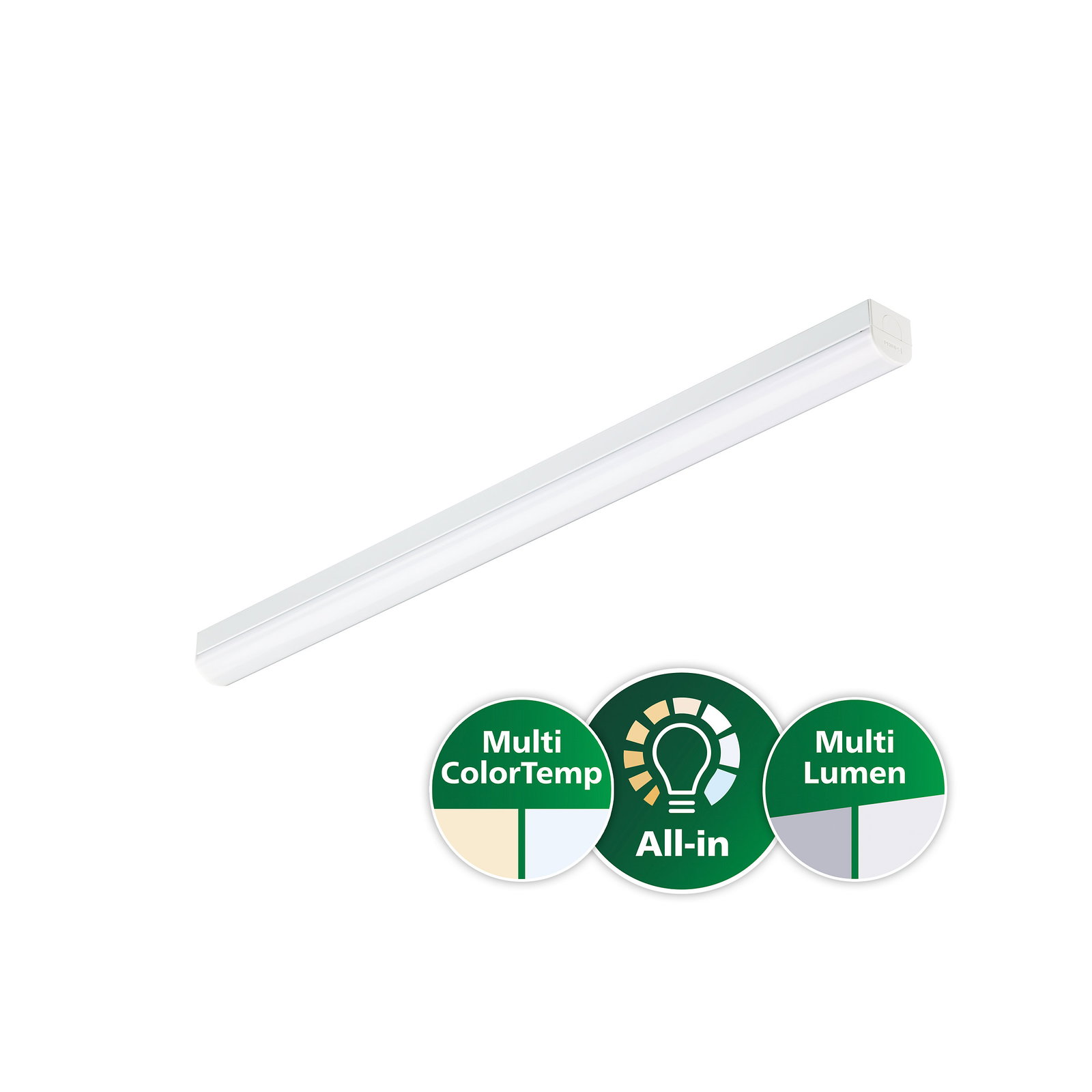

CoreLine Batten, BATTEN, 29.5 W, 18 W, L1200, 2500 lm, 4100 lm, 3000 K, 4000 K, Opal, IP20/40

CoreLine Batten, BATTEN, 29.5 W, 18 W, L1200, 2500 lm, 4100 lm, 3000 K, 4000 K, Opal, IP20/40

BATTEN, L1200, Metal-Plastic, White, Signal white (RAL9003), Power supply unit (On/Off), All-in, Multi Color Temperature, All-in, Multi Lumen, 2500 lm, 4100 lm, 29.5 W, 18 W, 140 lm/W, 3000 K, 4000 K, (0.43,0.40) SDCM≤3, Symmetrical, Opal, Polycarbonate, IP20/40 | Finger-protected;Wire-protected, IK04 | 0.5 J standard plus, Safety class I, Push-in connector 3-pole, Simple connection and removable cover available for feed-through wiring 1-phase (internal wiring is not included)

Product identifiers

SKU: 911401850587

Price: £ 0.00 Excl. VAT

Specifications

Cable -
CE mark Yes
Dimmable No
ENEC mark ENEC mark
Connection Push-in connector 3-pole
Optic type Symmetrical
Inrush time 0.499 ms
Input Voltage 220 to 240 V
Overall width 65 mm
Housing Colour White
Line Frequency 50 to 60 Hz
Overall height 65 mm
Driver included Yes
Housing material Metal-Plastic
Fixation material Steel
Power Consumption 29.5 W;18 W
Light source colour 830 warm white, 840 neutral white
Protection class IEC Safety class I
Ingress protection code IP20/40 | Finger-protected;Wire-protected
Power Factor (Fraction) 0.9
Optical cover/lens finish Opal
Optical cover/lens material Polycarbonate
Colour rendering index (CRI) 80
Driver/power unit/transformer Power supply unit (On/Off)
Luminous efficacy (rated) (nom.) 140 lm/W
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 50000 h L80
