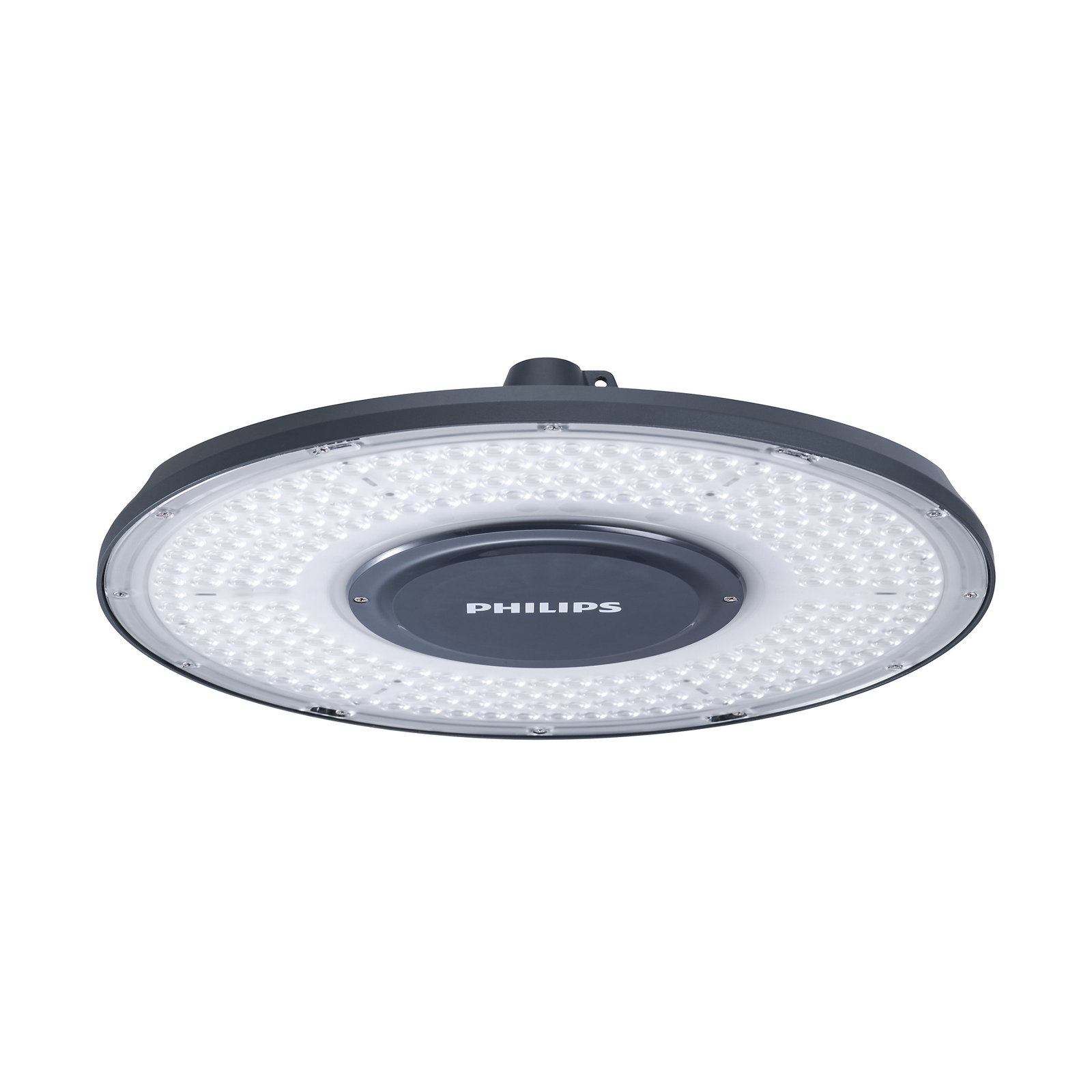

CoreLine Highbay Gen6, UltraEfficient, 55 W, 10000 lm, 4000 K, DALI, Beam angle 90°, IP66, IK08, EL-DC

Philips CoreLine Highbay Gen6 delivers on the CoreLine promise of innovative, easy-to-use and high-quality lighting. With a redefined and appealing elegance, CoreLine Highbay Gen6 is a reliable, highly efficient luminaire with a very long lifetime. It delivers flicker-free lighting and great energy savings, and requires less maintenance than comparable luminaires. CoreLine Highbay Gen6 is also very easy to handle. The luminaire can be installed on your existing grid. Electrical connections are straightforward, with an external IP65 connector that does not require you to open the luminaire. With a choice of narrow and wide beam angles, you can adjust your lighting plan to suit your exact needs. The CoreLine Highbay Gen6 range includes Interact Ready luminaires. With integrated wireless communications and integrated movement and daylight sensors, CoreLine Highbay Gen6 is ready for use with any Interact connected lighting system.

Product identifiers

SKU: 911401553745

Price: £ 0.00 Excl. VAT

Specifications

Cable Cable 0.3 m with connector 2-pole;Cable 0.3 m with connector 3-pole
CE mark Yes
Dimmable Yes
ENEC mark ENEC mark
Connection Screw connector
Optic type Beam angle 90°
Inrush time 0.25 ms
Input Voltage 220 to 240 V
Glow-wire test Temperature 650 °C, duration 30 s
Inrush current 46 A
Optic material Polycarbonate
Driver included Yes
Housing material Aluminium die cast
Control interface DALI
Fixation material Aluminium
Maximum dim level 20%
Reflector material -
Initial chromaticity (0.3818,0.3797) SDCM <5
Constant light output No
Luminous flux tolerance +/-10%
Ambient temperature range -40 to +50 °C
Beam angle of light source 120 degree(s)
Luminaire light beam spread 90°
Power consumption tolerance +/-10%
Mech. impact protection code IK08 | 5 J vandal-protected
Driver/power unit/transformer Power supply unit with DALI interface, DC-compatible for central emergency lighting (integrated)
Luminous efficacy (rated) (nom.) 181 lm/W
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 35000 h L85
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 75000 h L80
