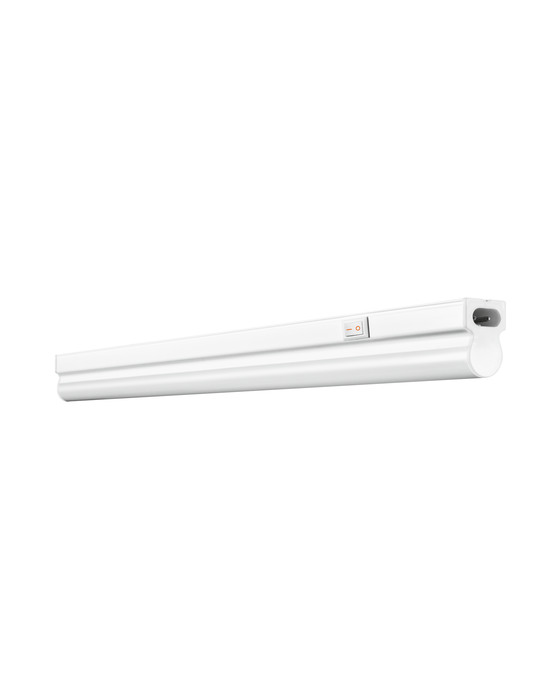

LINEAR COMPACT SWITCH 300 4 W 4000 K

LINEAR COMPACT SWITCH 300 4 W 4000 K by LEDVANCE is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £11.83 to £14.22 excl. VAT.

Compact single or light line luminaire with switch. Product features: Built-in switch. Up to 10 luminaires connectable. Translucent end caps. Versions with luminous flux 400…1900 lm available. 5 different lengths available. High luminous efficacy: up to 112 lm/W. Glow Wire Test according to IEC 60695-2-12: 850 °C. Product benefits: Compact dimensions. Little space required thanks to compact dimensions. Seamless connection of up to 10 luminaires in a line. Handy switch directly installed on the luminaire. Low flicker light thanks to special electronic control gear. Flexible installation in 2 different angles with 2 different mounting options. Flexible application due to a wide range of available lengths of 300 to 1500 mm.. Angled connection possible with included cable. Areas of application: Direct replacement for luminaires with fluorescent lamps. Indoor applications. Corridors, entrance areas, stairwells, living rooms, basements. Accent lighting. Public areas. Cove lighting. Shelves, furniture integration or under cabinet mounting. Seamless linear lighting. Equipment / Accessories: Equipped with power plug, cable connector and line adapter for connecting further luminaires. Mounting material for wall and ceiling installations included. Safety advice: All electrical connections must be made by a qualified person.. To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach..

Product identifiers

SKU: 4058075106093
EAN: 4058075106093
GTIN: 4058075106093
MPN: LN COMP SWITCH 300 4 W 4000 K

Price range: £ 11.83 - £ 14.22 Excl. VAT

Specifications

Width 28.00
Length 313.00
Diameter -
Material Plastic
Lamp type LED not exchangeable
Dimming RF no
Dimming DMX no
Dimming DSI no
With switch yes
Height/depth 36.00
Voltage type AC
Dimming 1-10 V no
Housing colour White
Colour of light -
No dim function yes
Nominal voltage 220 - 240
Light distributor Diffuser lens/optic/panel
With control gear yes
Colour temperature 4000 - 4000
Luminaire efficacy 110
Type of control gear Electronic ballast
Beam angle adjustable No
Operation by Bluetooth no
Conductor cross section -
Suitable for lamp power
Luminous flux adjustable No
Exchangeable control gear no
Colour rendering index CRI 80-89
Degree of protection (NEMA) -
With lamp protection basket -
Compatible with Apple HomeKit no
Compatible with Google Assistant no
Emergency power supply integrated no
Dimming potentiometer (integrated) no
Suitable for number of light sources 0
Protection class according to IEC 61140 II
Filament test according to IEC 60695-2-11 850 °C - 30 s
Rated luminous flux according to IEC 62722-2-1 450
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) -
Energy efficiency class of the light source according to EU regulation 2019/2015 -
