HB COMP V 83W 840 110DEG IP65
HB COMP V 83W 840 110DEG IP65
HB COMP V 83W 840 110DEG IP65 by LEDVANCE is listed by 3 electrical wholesalers on Voltimum UK, including Farnell, Rexel Group and City Electrical Factors. It is currently in stock at 2 of them. Trade prices range from £70.66 to £82.72 excl. VAT.
Product benefits
- Modern exclusive design
- Energy savings of up to 60 % compared to conventional high bay luminaires
- Optimized weight and size due to compact design
Areas of application
- Replacement for high bay luminaires with mercury vapor or metal halide lamps
- Warehouses
- Logistics halls
- Industry
- High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
- Operating temperature: -20…45 °C
- Black aluminum housing, tempered glass cover
- Opal cover
- Type of protection: IP65
- Lifetime (L70): up to 50,000 h
- High luminous efficacy: up to 120 lm/W
Equipment / Accessories
- Bracket available
- Reflector available
References / Links
- For Guarantee see www.ledvance.com/guarantee
Product identifiers
Price range: £ 70.66 - £ 82.72 Excl. VAT
Categories
ETIM group
Specifications
Electrical data
| Nominal wattage | 83.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 360 mA |
| Inrush current | 9.5 A |
| Inrush current time T h50 | 16.04 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 35 |
| Max. number of luminaires per miniature circuit breaker C10 | 22 |
Documents
Documents and certificates
Data sheet
Documents And Certificates
User instruction / safety instructions – UI HighBay Compact V 110D
Legal information – LS Insert HighBay Compact V 110D
Legal information – Legal insert HB VAL AND HB COMP V
Legal information – Informationstext 18 Abs 4 ElektroG
Declarations of conformity UKCA – HB COMP V 110DEG IP65
EPD – EPD EN HIGH BAY COMPACT
Product Images And Graphics

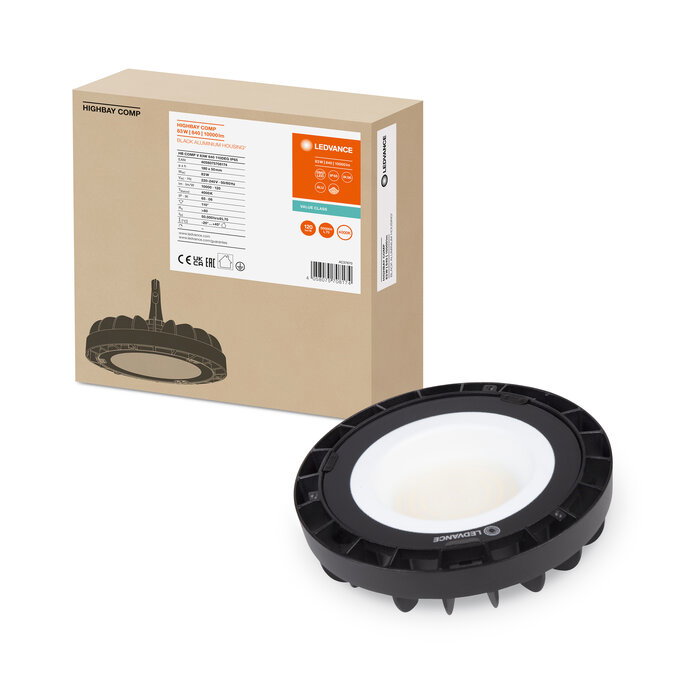

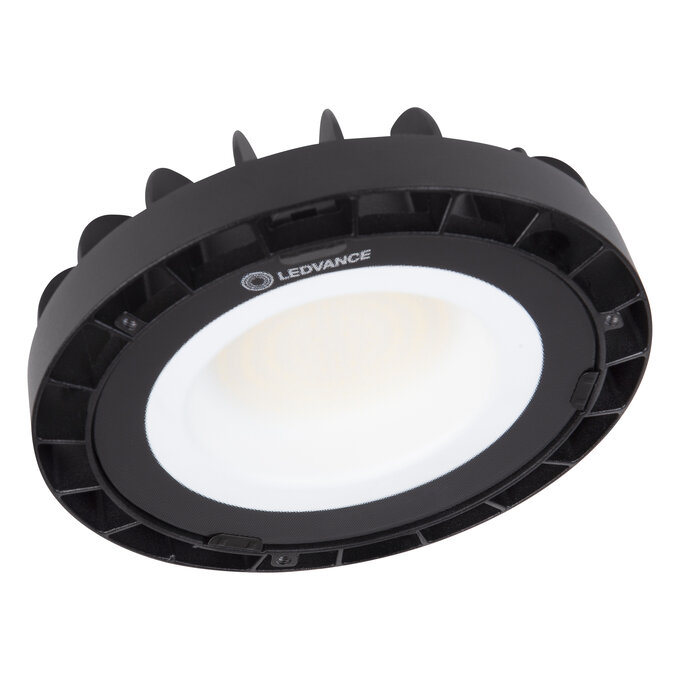

Product image: white background, diagonal – HIGH COMP luminaires
