40mm Tower R Pole Buzzer Flash

Link copied

SKU
EAN
GTIN
MPN

40mm Tower R Pole Buzzer Flash by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £179.60 excl. VAT. Voltimum+ members earn 25 points per unit.

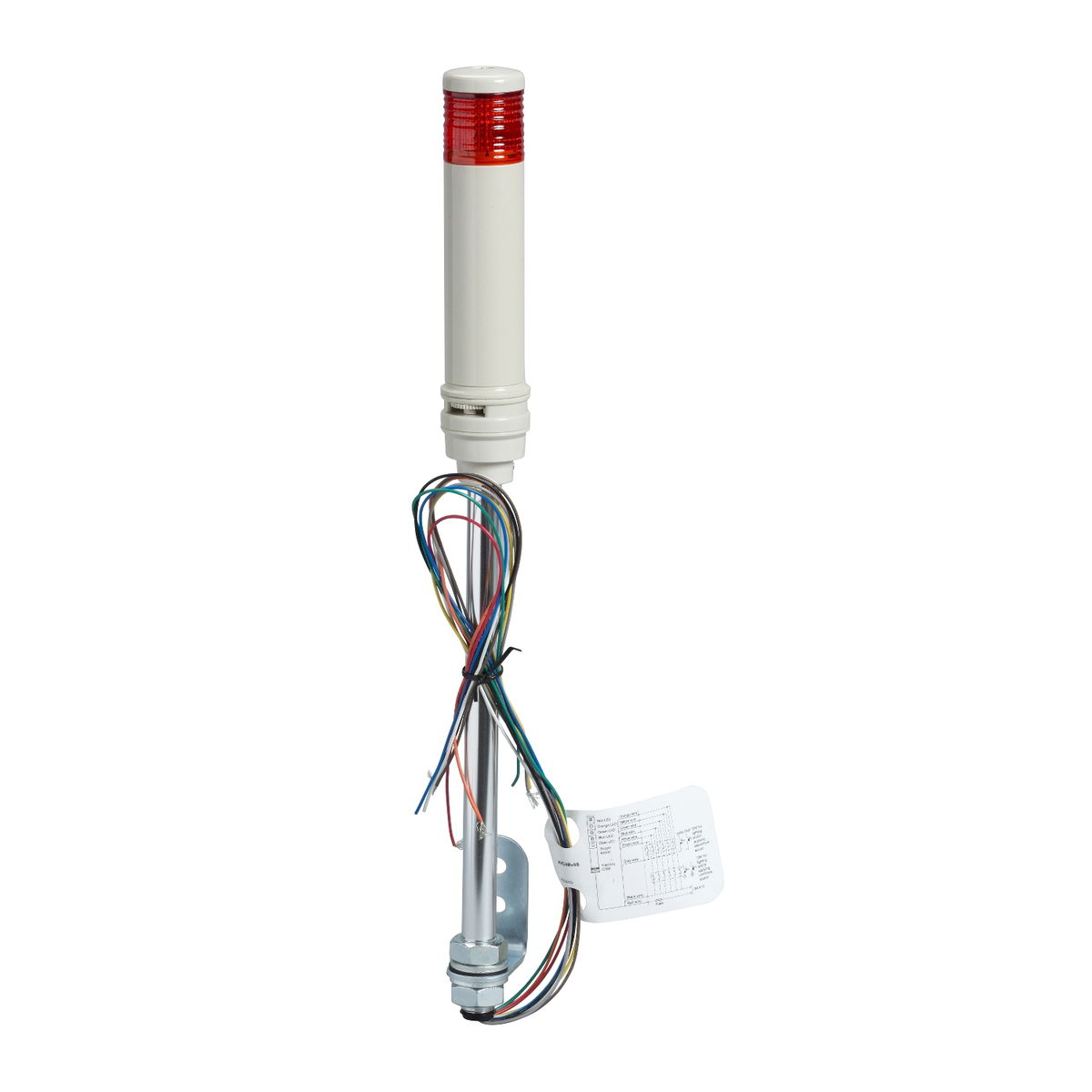

This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 40mm. It is supplied pre-assembled and pre-cabled with 1 illuminated signaling unit (red), a buzzer and a base mounted on a support tube with a bracket for mounting on horizontal (IP 54) or vertical surface (IP 23). Supply voltage is 24 V AC/DC. It is designed for long distance indication of the operating states of a machine, either visually by means of illuminated signaling units visible through 360° (super bright LED for steady or flashing light), or audibly by means of a buzzer. It is used mainly in the food-processing and medical sectors.

Loyalty points: 25

Price: £ 179.60 Excl. VAT

Specifications

Depth	-
Width	-
Height	524.5 mm
Loudness	85 dB
Colour light 1	Red
Colour light 2	-
Colour light 3	-
Colour light 4	-
Colour light 5	-
Outer diameter	40 mm
Function acoustic	yes
Operating voltage DC
Function flashing light	yes
Function revolving light	yes
Degree of protection (IP)	IP23
Function continuous light	yes
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Degree of protection (NEMA)	-
Number of signal tower elements	1
Voltage type (operating voltage)	AC/DC
