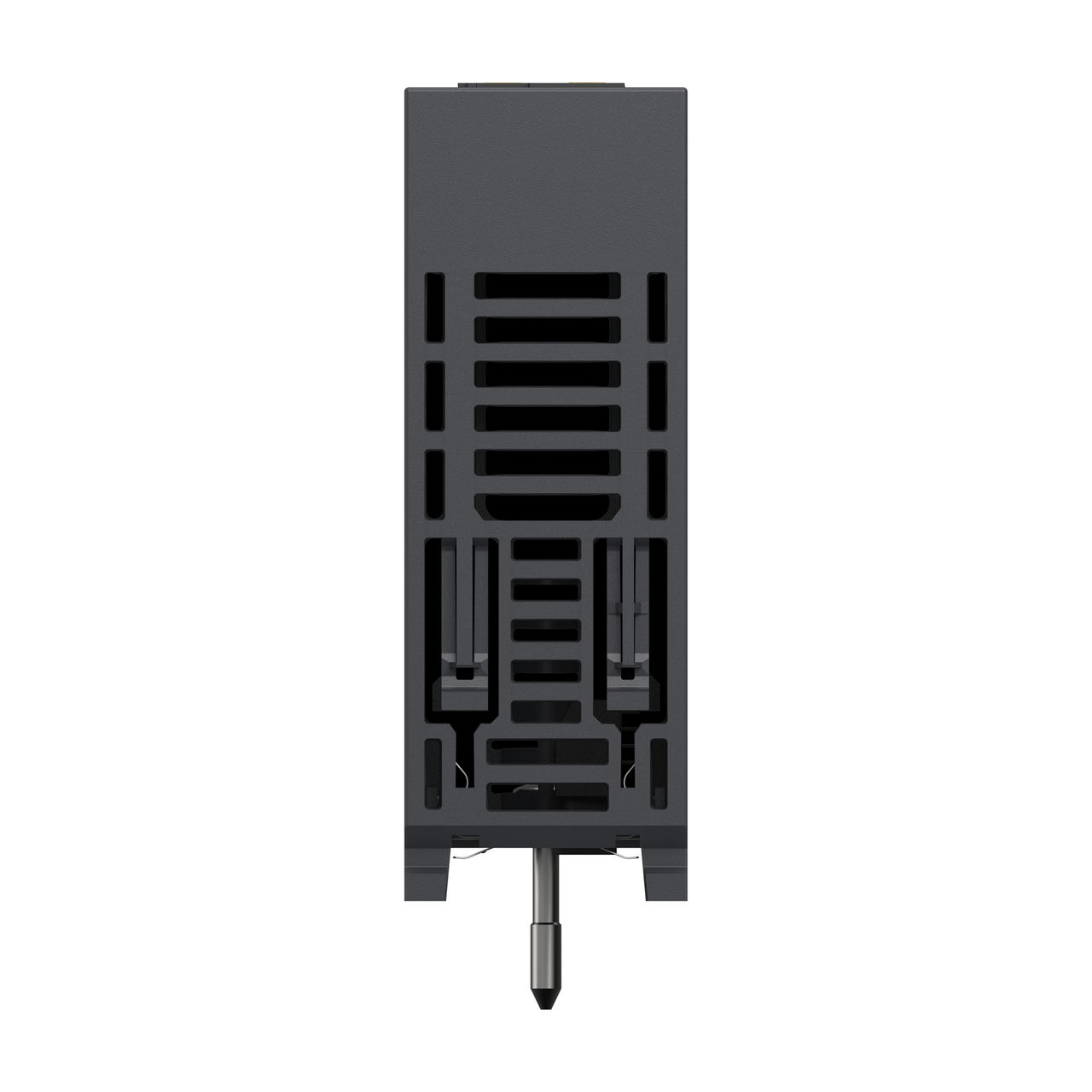

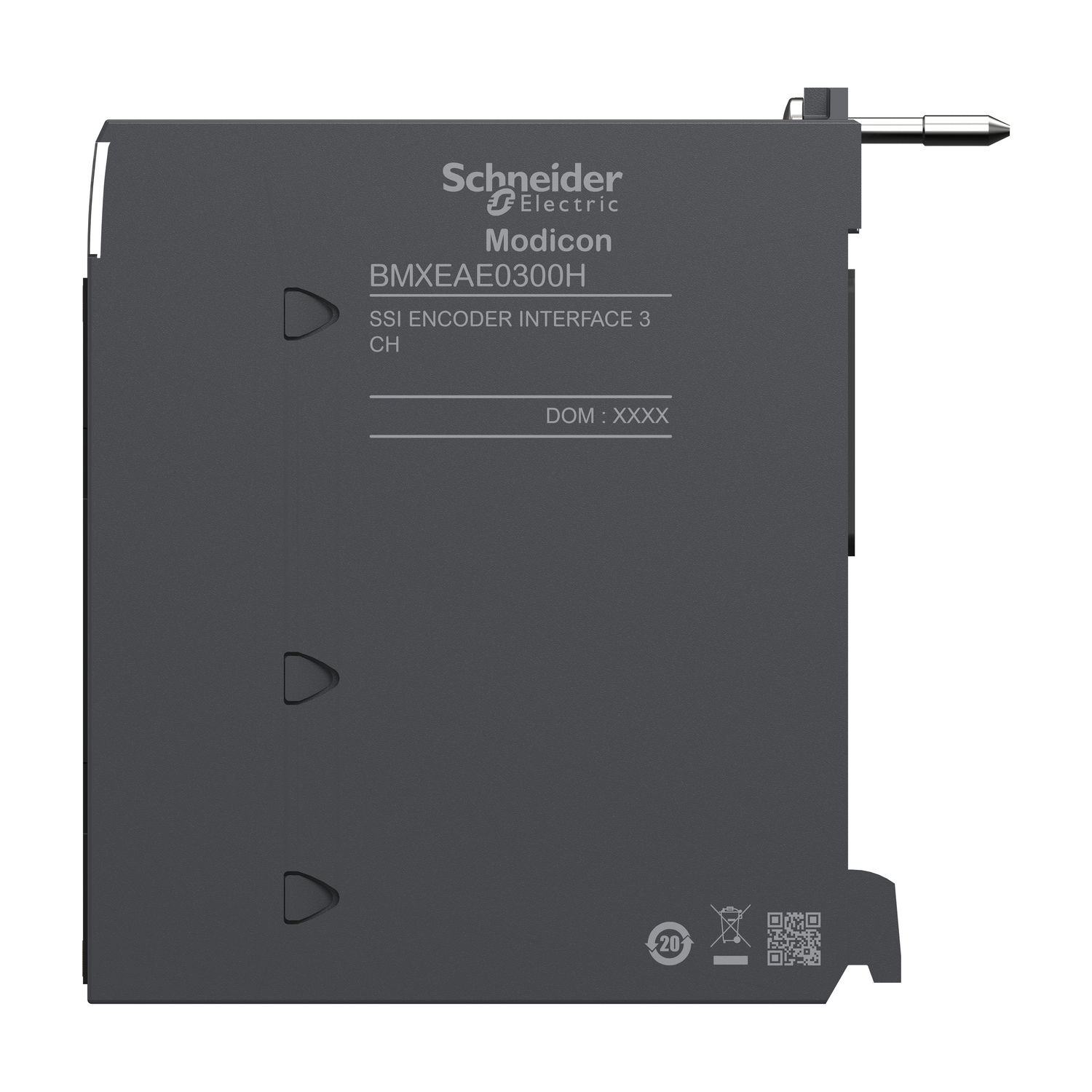

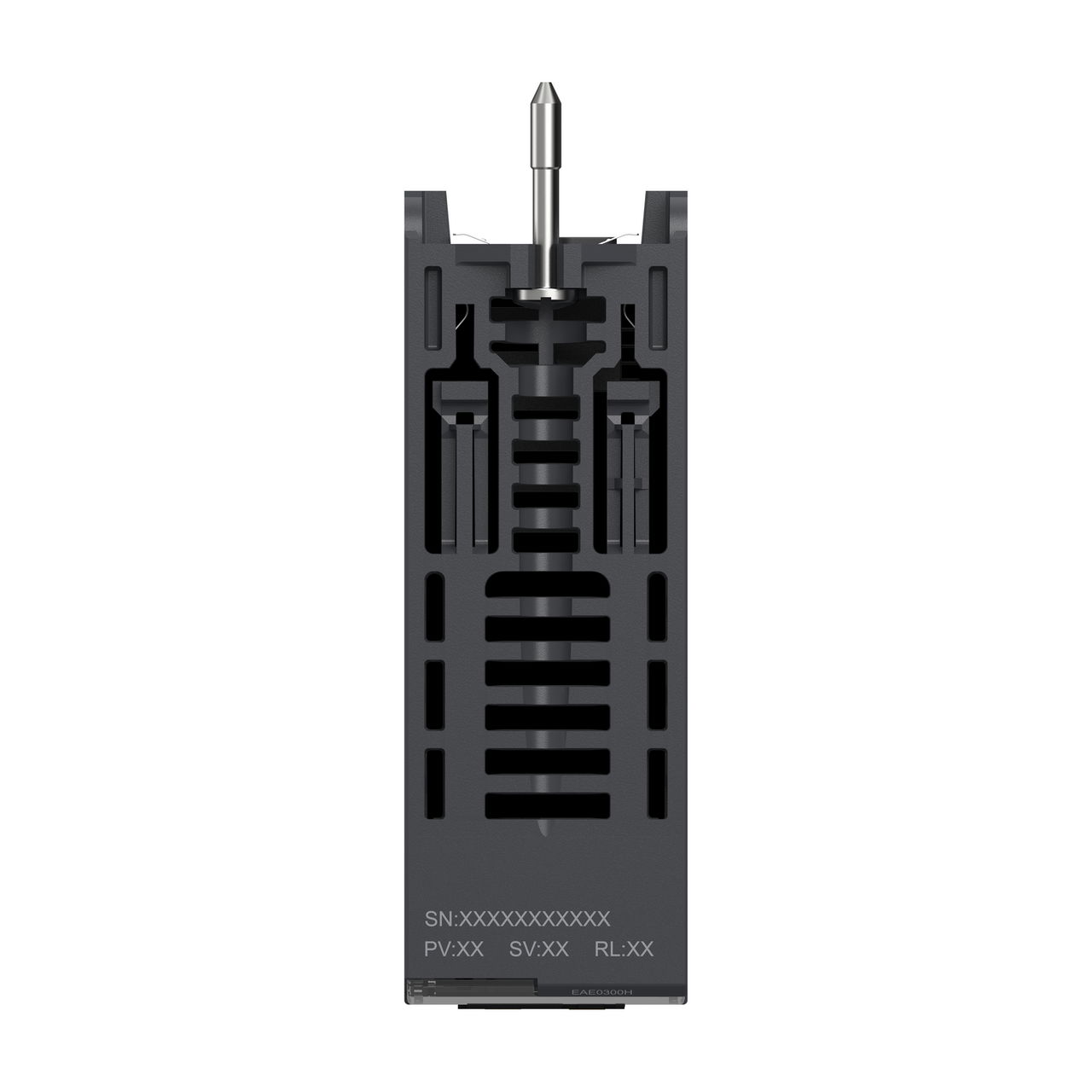

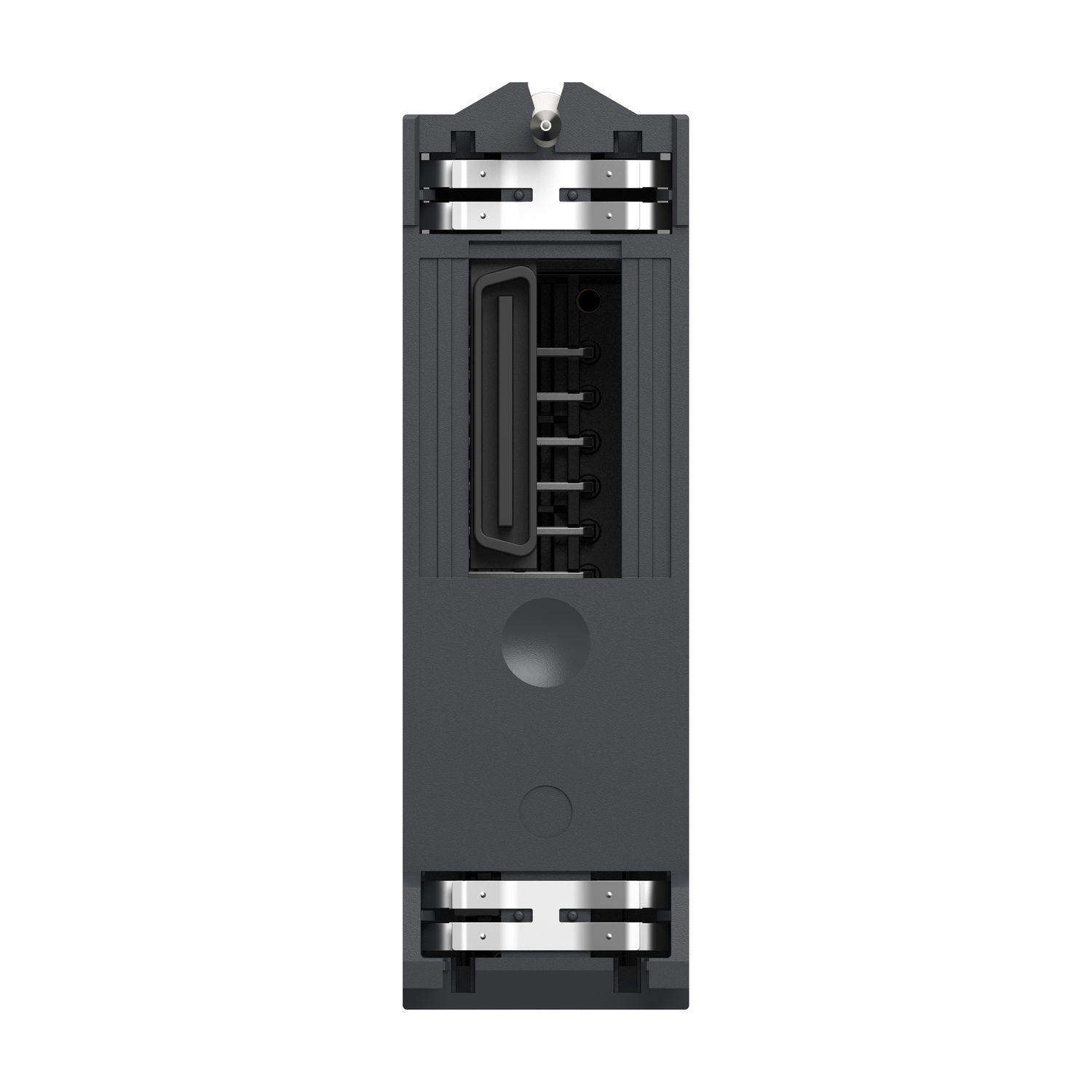

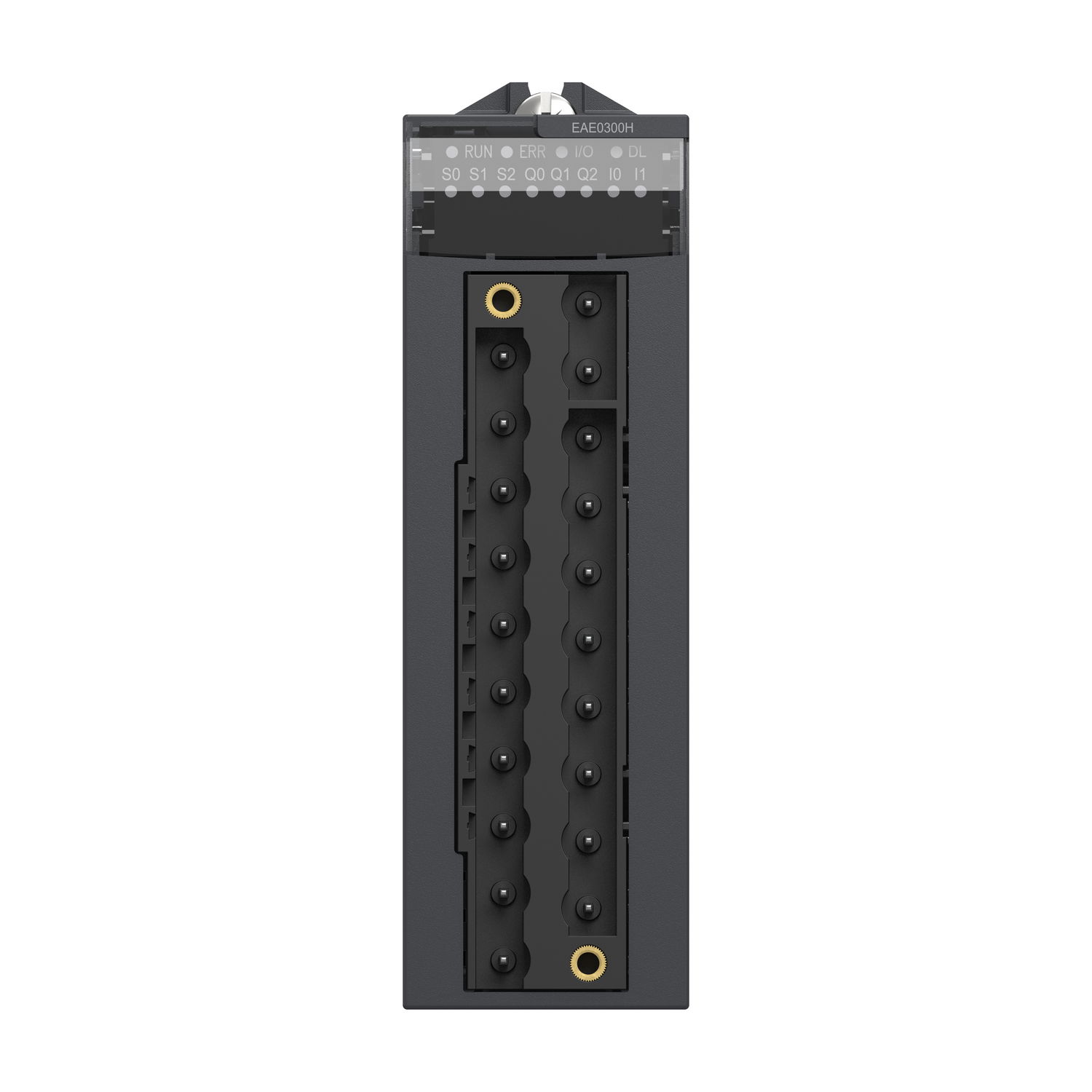

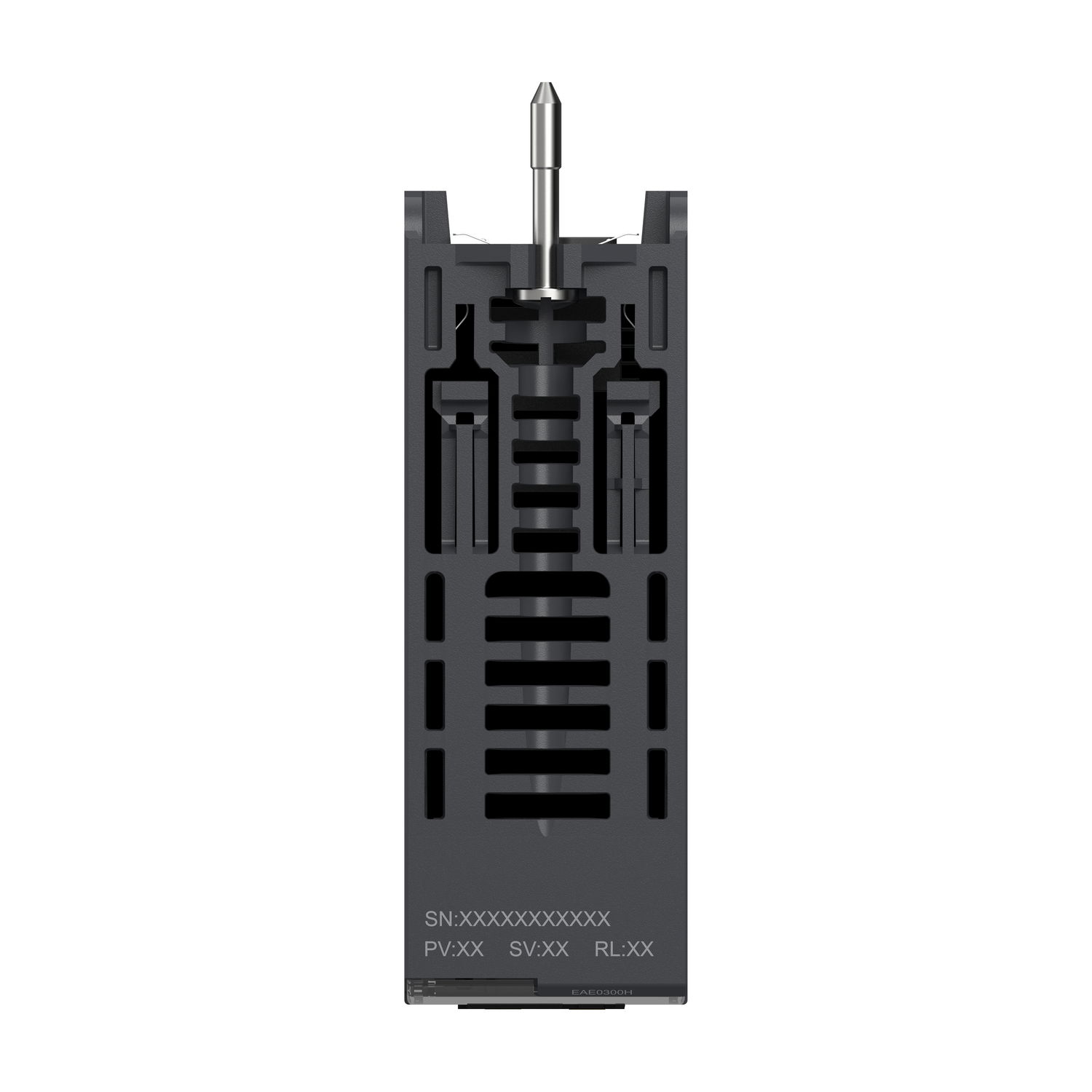

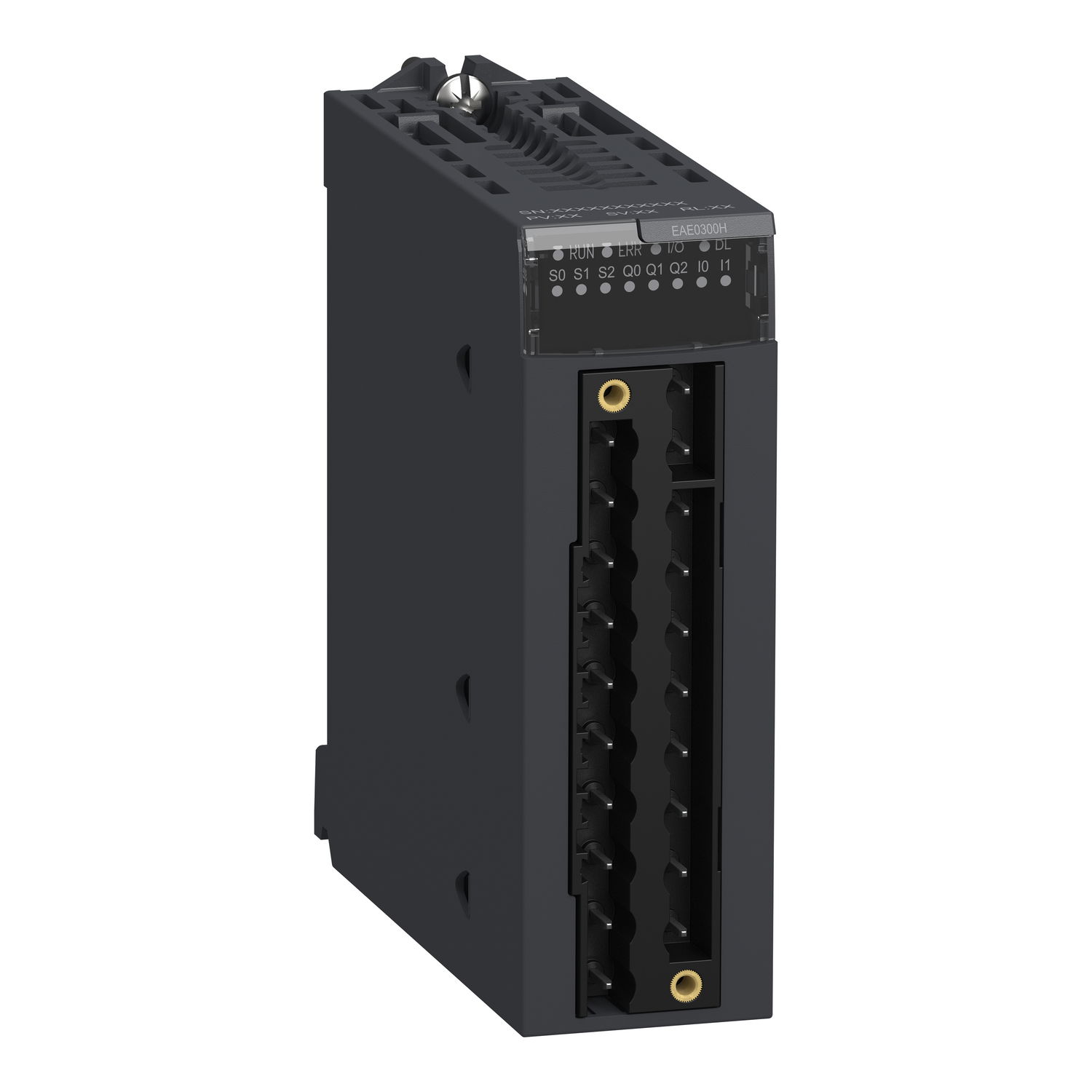

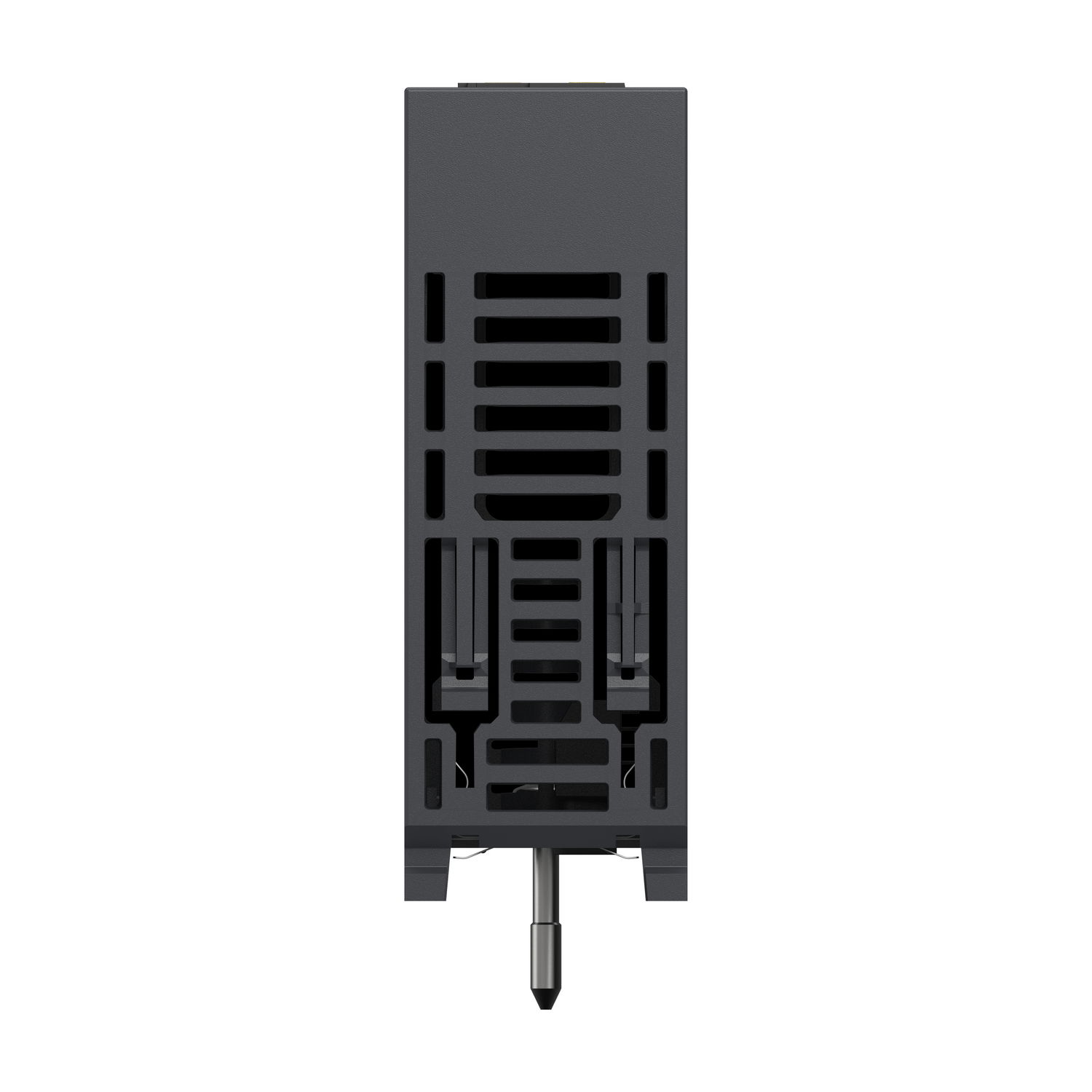

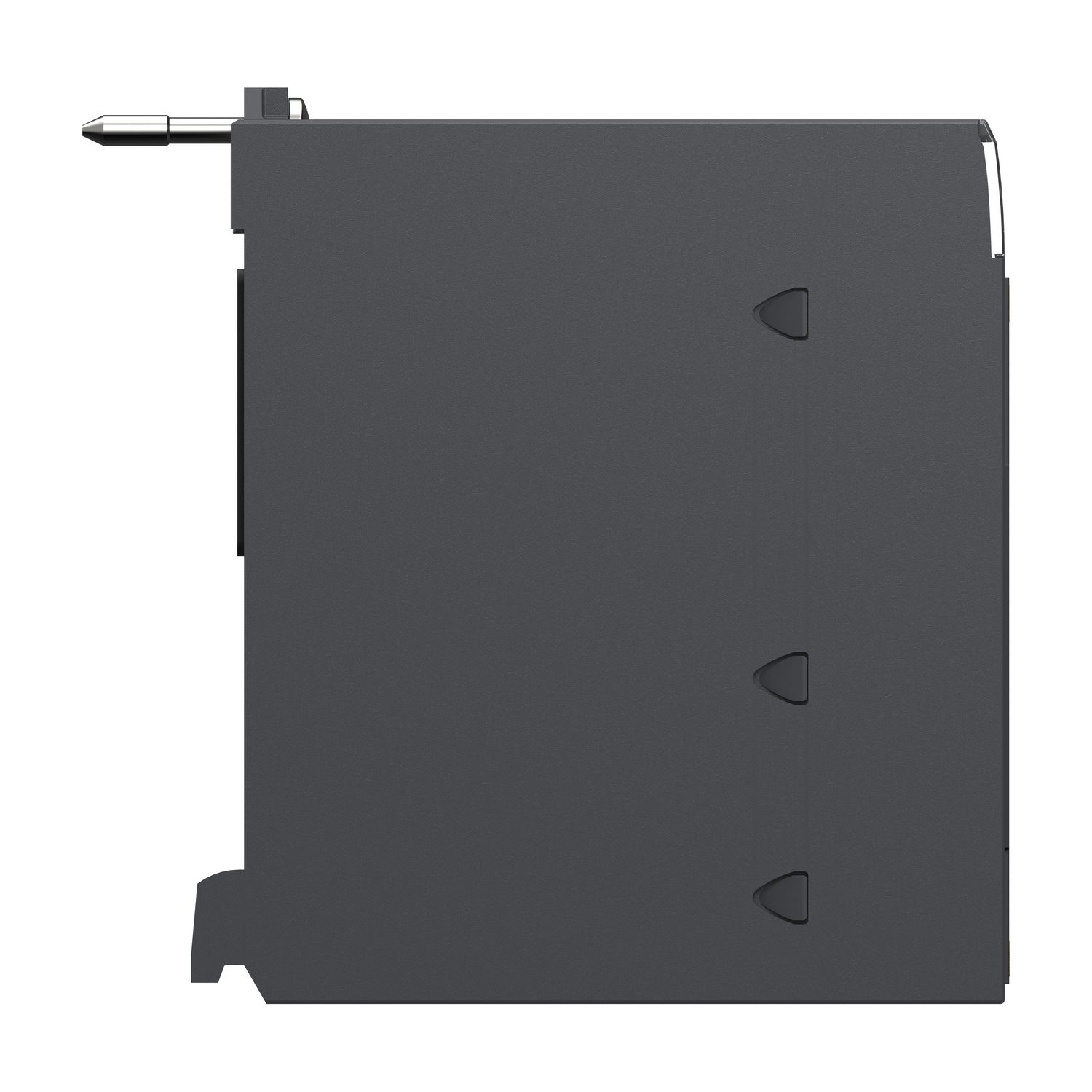

SSI encoder interface module - 3 channels - up to 31 data bits / 1 Mbauds

"This SSI encoder interface module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580." "This encoder interface module has 3 SSI channels." "This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F." "Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "Its casing provides IP20 protection of the electronics." "This module has a weight of 0.138kg and dimensions of 32x100x86mm." "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications." "This input is compatible with 24V DC SSI absolute encoder for 200mA per channel." "The product must be installed on the rack and fixed with 2 screws." "Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC)." "Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs."
