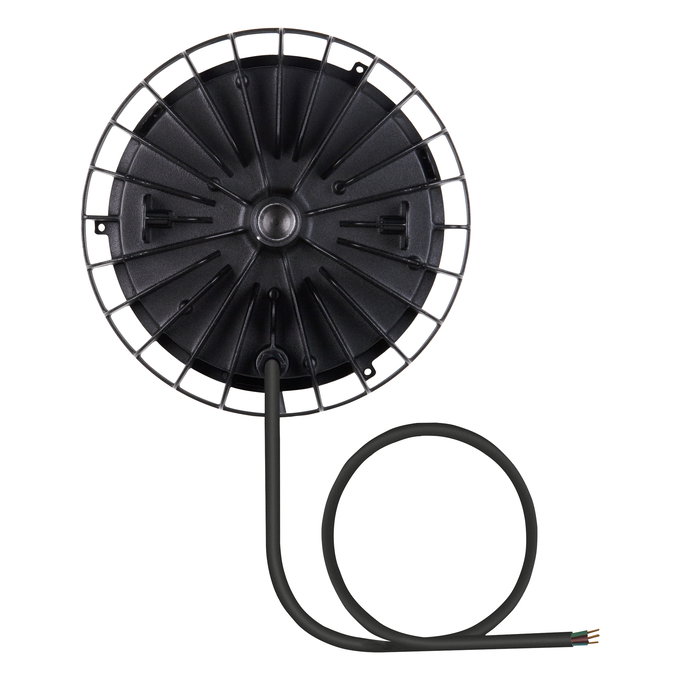

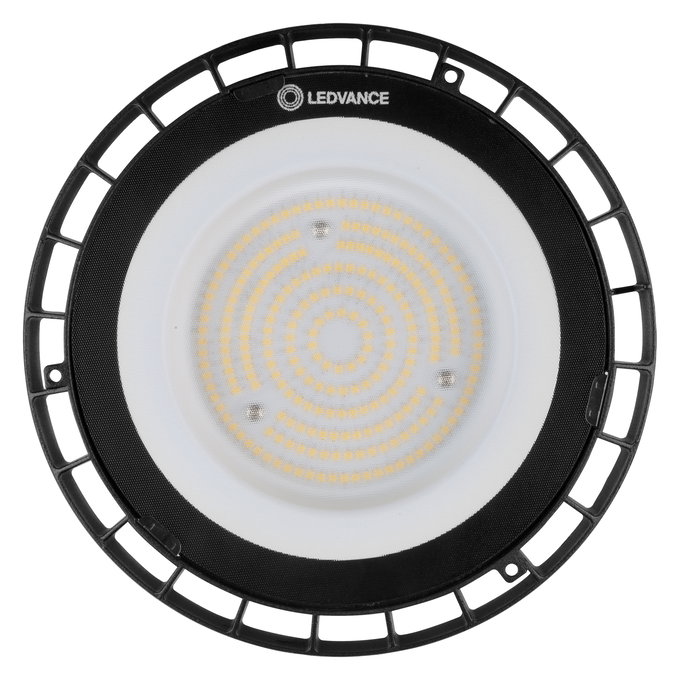

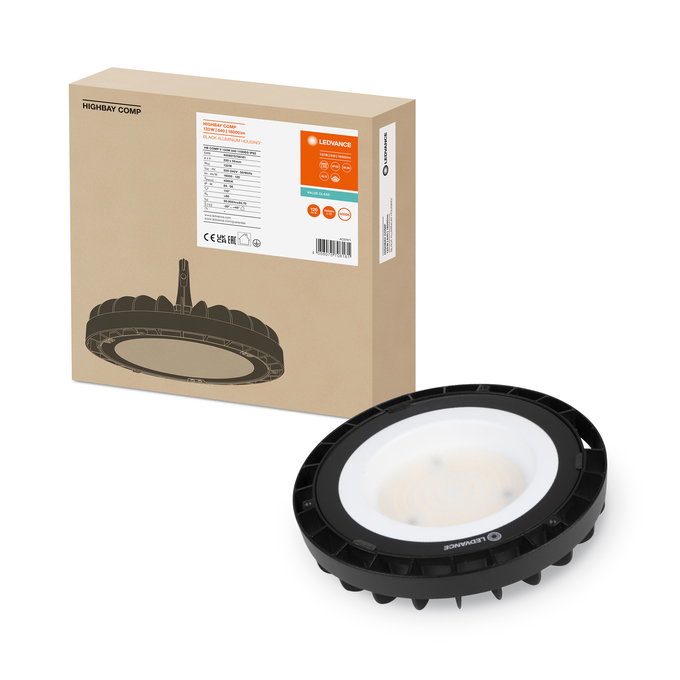

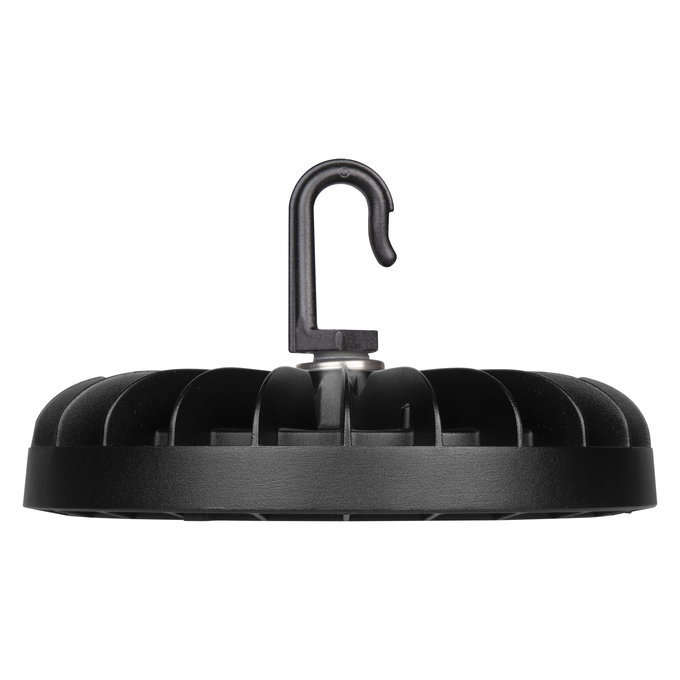

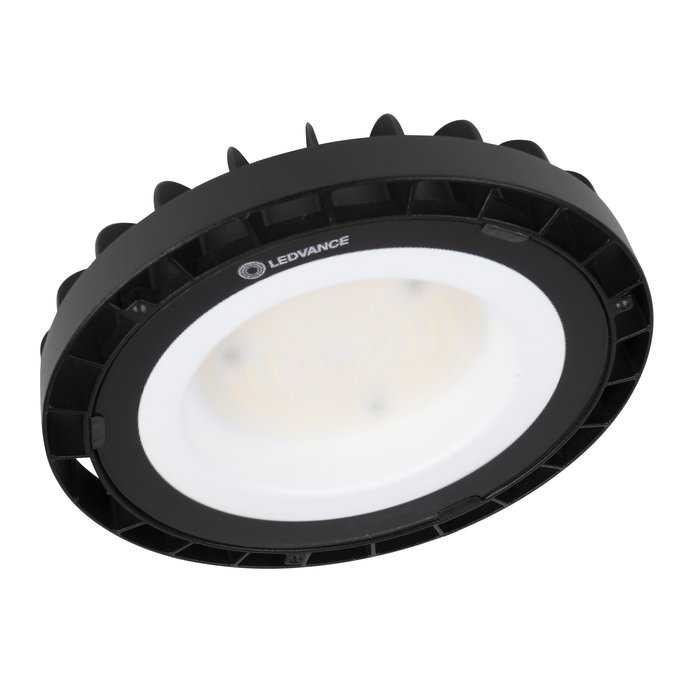

HB COMP V 133W 840 110DEG IP65
Product benefits
- Modern exclusive design
- Energy savings of up to 60 % compared to conventional high bay luminaires
- Optimized weight and size due to compact design
Areas of application
- Replacement for high bay luminaires with mercury vapor or metal halide lamps
- Warehouses
- Logistics halls
- Industry
- High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
- Operating temperature: -20…45 °C
- Black aluminum housing, tempered glass cover
- Opal cover
- Type of protection: IP65
- Lifetime (L70): up to 50,000 h
- High luminous efficacy: up to 120 lm/W
Equipment / Accessories
- Bracket available
- Reflector available
References / Links
- For Guarantee see www.ledvance.com/guarantee
Product identifiers
SKU: 4058075708181
EAN: 4058075708181
GTIN: 4058075708181
MPN: 4058075708181
Price range: £ 74.87 - £ 109.94 Excl. VAT
Categories
ETIM Group
Specifications
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 45000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | > 100000 |
Electrical data
| Nominal wattage | 133.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 580 mA |
