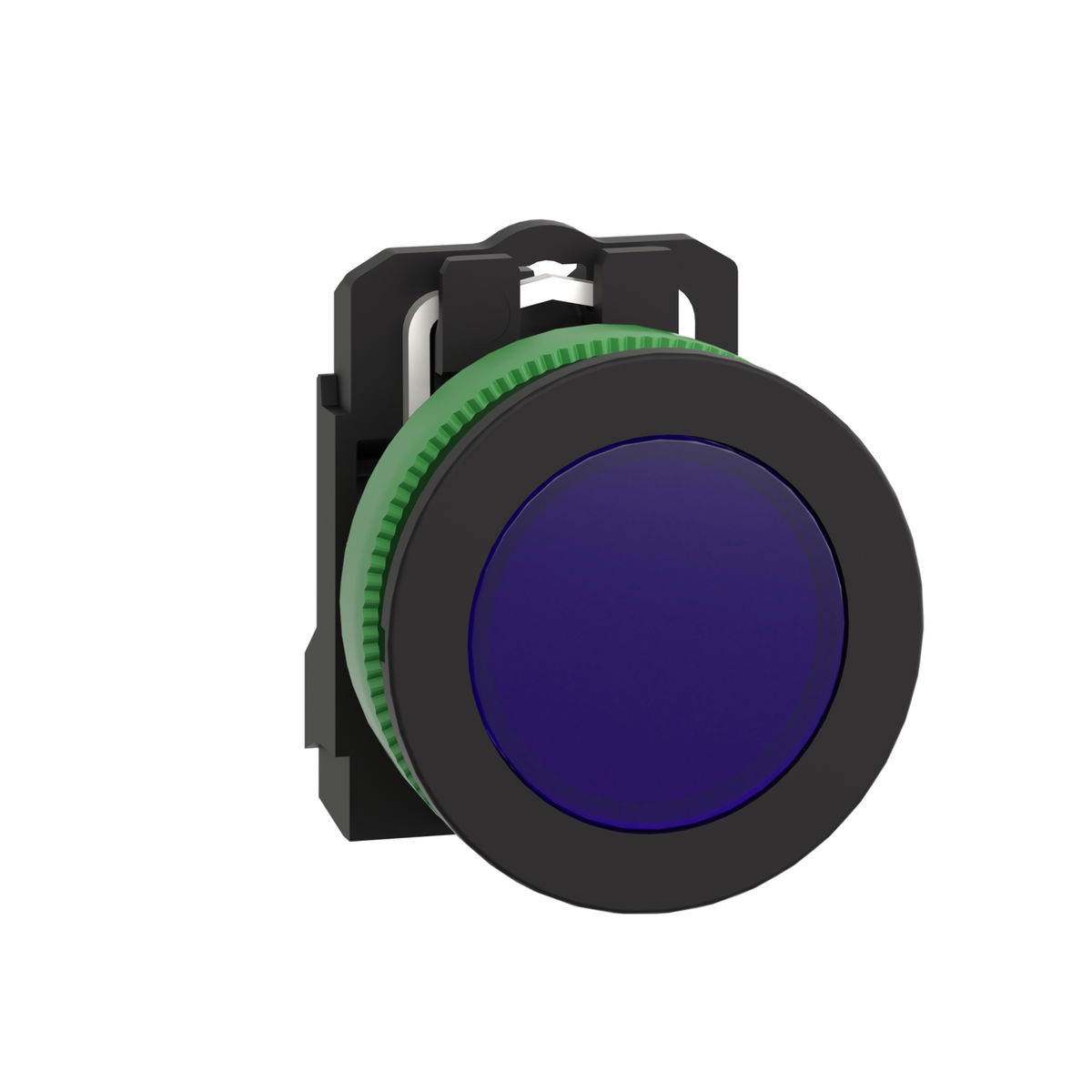

Pilot light, Harmony XB5, grey plastic, blue flush mounted, 30mm, universal LED, plain lens, 110...120V AC

Pilot light, Harmony XB5, grey plastic, blue flush mounted, 30mm, universal LED, plain lens, 110...120V AC – Image 2 of 8

Pilot light, Harmony XB5, grey plastic, blue flush mounted, 30mm, universal LED, plain lens, 110...120V AC – Image 3 of 8

Pilot light, Harmony XB5, grey plastic, blue flush mounted, 30mm, universal LED, plain lens, 110...120V AC – Image 4 of 8

Pilot light, Harmony XB5, grey plastic, blue flush mounted, 30mm, universal LED, plain lens, 110...120V AC – Image 5 of 8

Pilot light, Harmony XB5, grey plastic, blue flush mounted, 30mm, universal LED, plain lens, 110...120V AC – Image 6 of 8

Pilot light, Harmony XB5, grey plastic, blue flush mounted, 30mm, universal LED, plain lens, 110...120V AC – Image 7 of 8

Pilot light, Harmony XB5, grey plastic, blue flush mounted, 30mm, universal LED, plain lens, 110...120V AC – Image 8 of 8

1 / 8

Pilot light, Harmony XB5, grey plastic, blue flush mounted, 30mm, universal LED, plain lens, 110...120V AC

Link copied

SKU
EAN
GTIN
MPN

This flush mounted pilot light is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 110 V to 120 V AC. Customized marking option through web customization tool is available in Schneider Electric website. Improved ergonomics and aesthetics due to flush mount design. It has a plain lens and the source of light is a universal LED. The bright and long-lasting illumination makes it clearly distinguishable even at a disctance. The connection terminal is screw clamp. The shape of the head is round and blue. The bezel and the fixing collar is plastic. The weight of this pilot light is 38 grams, height is 42 mm and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.

Loyalty points: 3

Price: £ 16.71 Excl. VAT

Specifications

Colour lens	Blue
Type of lens	Flat
Voltage type	AC/DC
Hole diameter	30.5 mm
Width opening	-
Height opening	-
With front ring	yes
Colour front ring	Black
With light source	yes
Material front ring	Plastic
Type of lamp socket	LED
Construction type lens	Round
Degree of protection (IP)	IP66
Number of indicator lights	1
Rated operating voltage Ue
Degree of protection (NEMA)	13
Type of electric connection	Screw connection

Documents

Declaration of Conformity (Sustainability)

XB5FVG6 REACh Regulation
