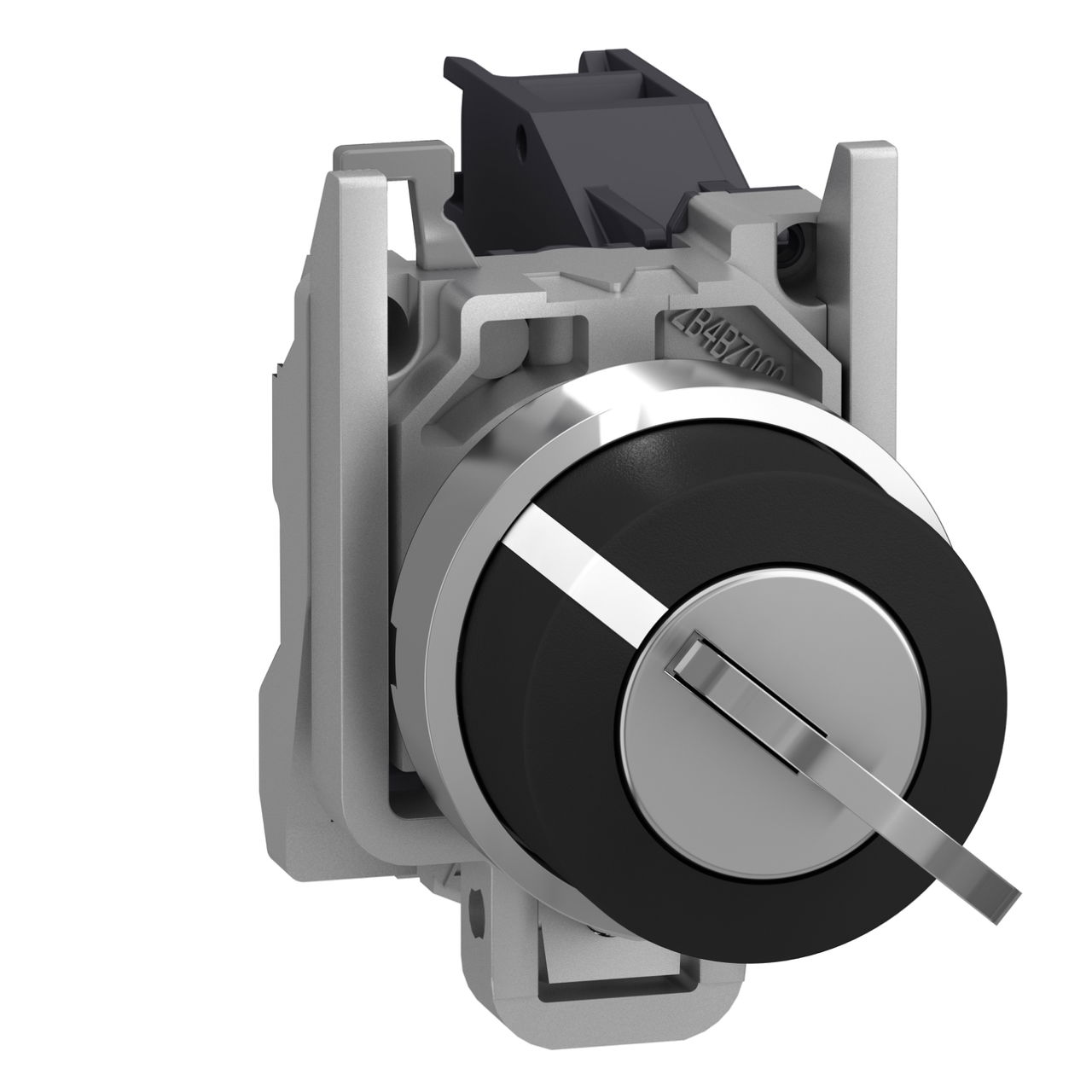

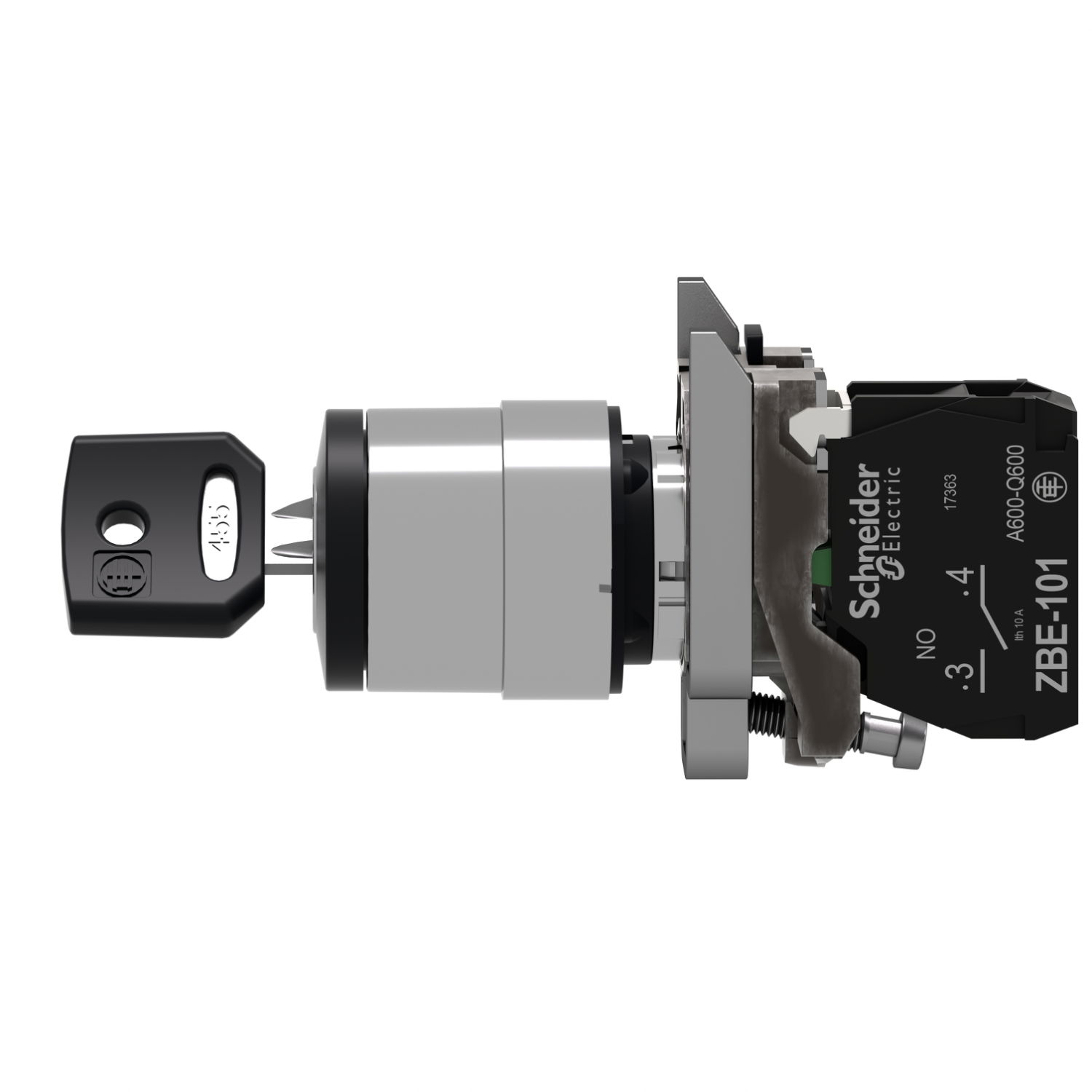

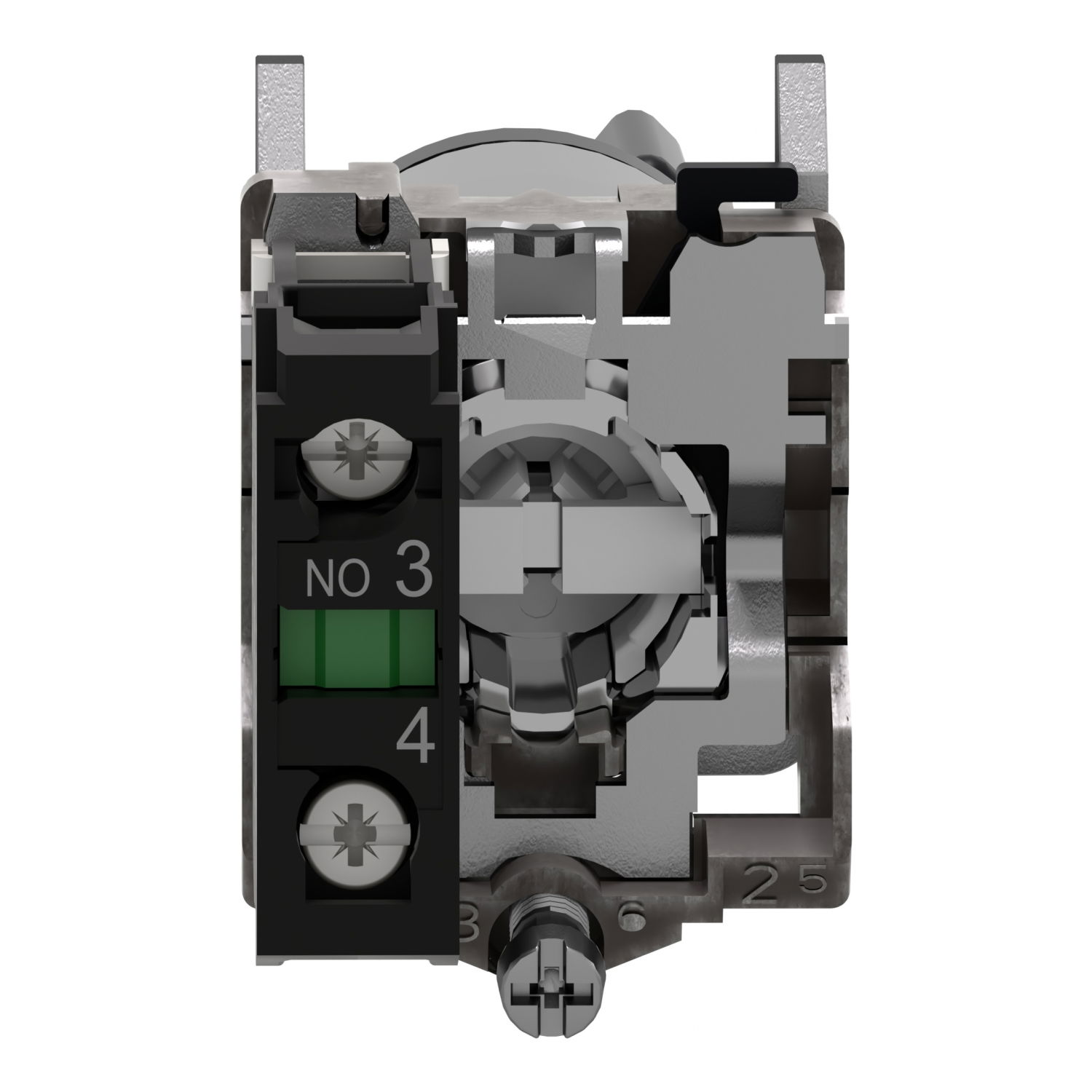

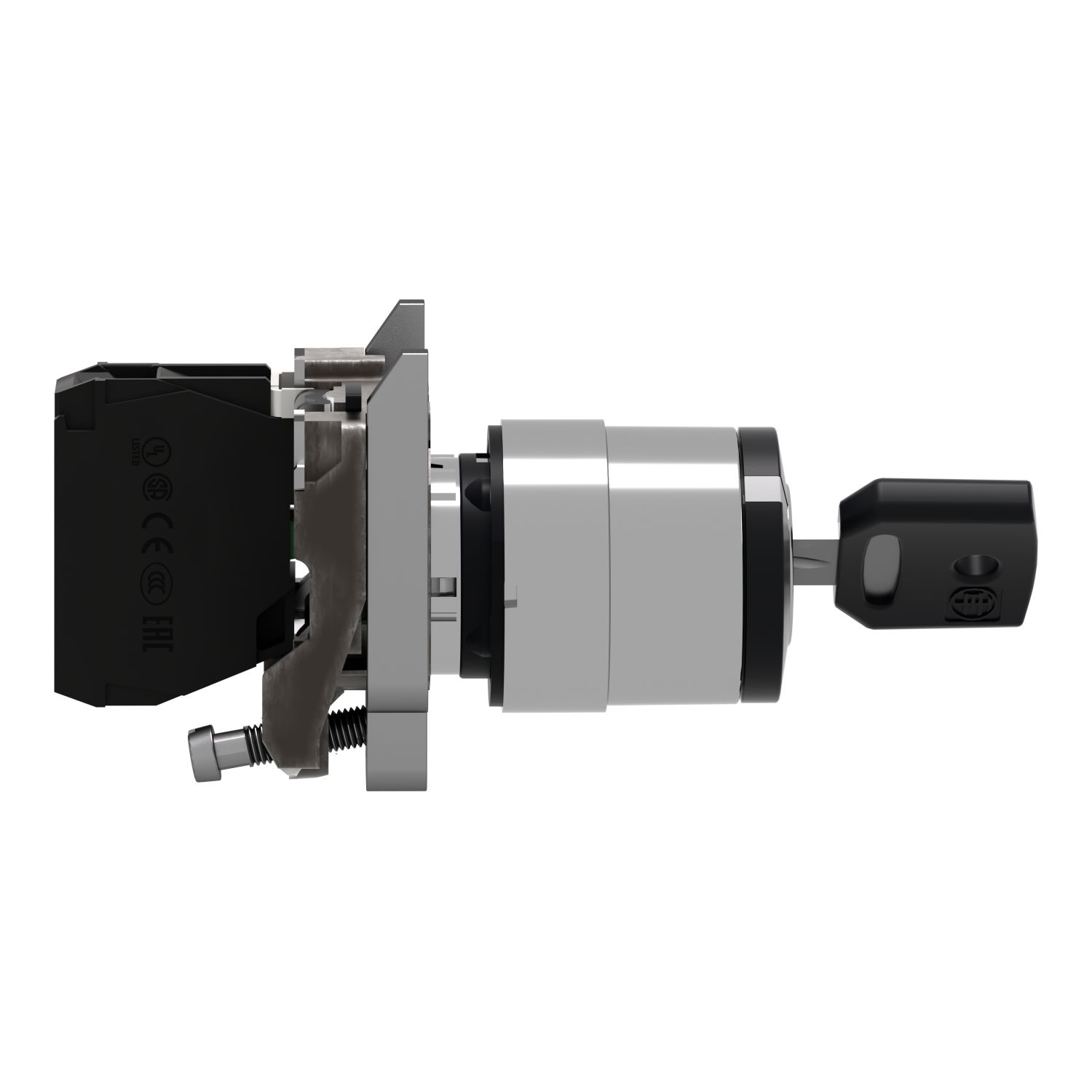

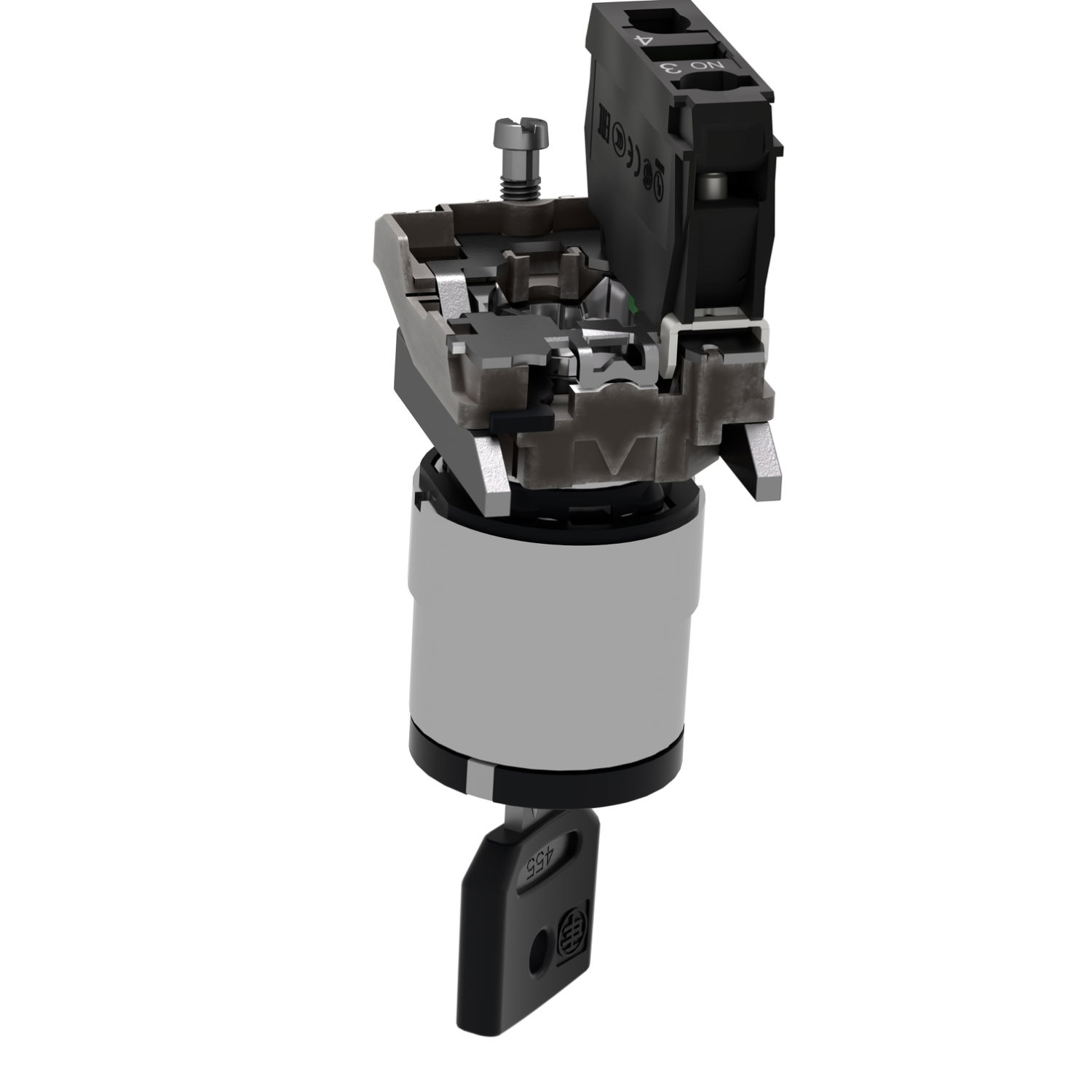

Key switch selector, metal, black, Ø22, key n°455, 2 positions, stay put, 1 NO

Name: Key switch selector, metal, black, Ø22, key n°455, 2 positions, stay put, 1 NO
Brand: Schneider Electric
SKU: XB4BG21
Availability: InStock

Key switch selector, metal, black, Ø22, key n°455, 2 positions, stay put, 1 NO by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £27.19 to £48.09 excl. VAT. Voltimum+ members earn 6 points per unit.

This Harmony XB4 modular black key selector switch (key no.455) has 2 positions, operates with a stay-put mechanism with key withdrawal on the left position. It has a metal bezel. This key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Product identifiers

SKU: XB4BG21

EAN: 3389110887136

GTIN: 3389110887136

MPN: XB4BG21

Loyalty points: 6

Price range: £ 27.19 - £ 48.09 Excl. VAT

Specifications

Power loss	-
Colour button	Black
Hole diameter	22.5 mm
Spring-return	no
Width opening	-
Height opening	-
Supply voltage
With front ring	yes
Colour front ring	Chrome
With light source	no
Material front ring	Metal
Suitable for lighting	no
Type of control element	Key
Degree of protection (IP)	IP66
Number of switch positions	2
Degree of protection (NEMA)	13
Switching function latching	yes
Type of electric connection	Screw connection
Number of contacts as change-over contact	0
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	0

Documents

Declaration of Conformity (Sustainability)

XB4BG21 REACh Regulation
