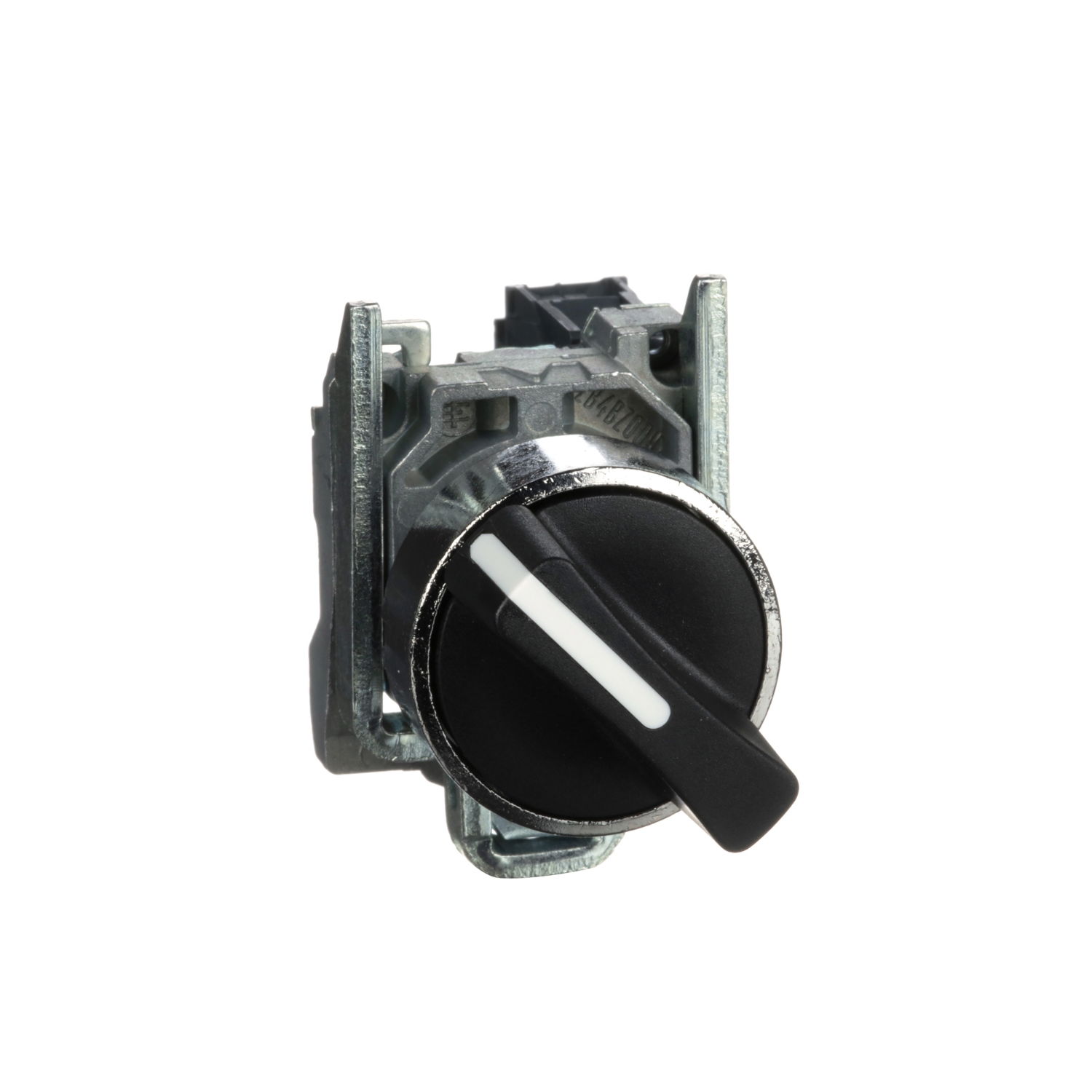

Selector switch, metal, black, Ø22, 2 positions, stay put, 1 NO

Selector switch, metal, black, Ø22, 2 positions, stay put, 1 NO – Image 2 of 13

Selector switch, metal, black, Ø22, 2 positions, stay put, 1 NO – Image 3 of 13

Selector switch, metal, black, Ø22, 2 positions, stay put, 1 NO – Image 4 of 13

Selector switch, metal, black, Ø22, 2 positions, stay put, 1 NO – Image 5 of 13

Selector switch, metal, black, Ø22, 2 positions, stay put, 1 NO – Image 6 of 13

Selector switch, metal, black, Ø22, 2 positions, stay put, 1 NO – Image 7 of 13

Selector switch, metal, black, Ø22, 2 positions, stay put, 1 NO – Image 8 of 13

Selector switch, metal, black, Ø22, 2 positions, stay put, 1 NO – Image 9 of 13

Selector switch, metal, black, Ø22, 2 positions, stay put, 1 NO – Image 10 of 13

Selector switch, metal, black, Ø22, 2 positions, stay put, 1 NO – Image 11 of 13

Selector switch, metal, black, Ø22, 2 positions, stay put, 1 NO – Image 12 of 13

Selector switch, metal, black, Ø22, 2 positions, stay put, 1 NO – Image 13 of 13

1 / 13

Popularity Top 10%

Among the top 10% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Selector switch, metal, black, Ø22, 2 positions, stay put, 1 NO

Link copied

SKU
EAN
GTIN
MPN

Selector switch, metal, black, Ø22, 2 positions, stay put, 1 NO by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at all of them. Trade prices range from £12.21 to £44.06 excl. VAT. Voltimum+ members earn 3 points per unit.

This Harmony XB4 modular black selector switch has 2 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Loyalty points: 3

Price range: £ 12.21 - £ 44.06 Excl. VAT

ETIM group

Low-voltage industrial components

Specifications

Power loss	-
Colour button	Black
Hole diameter	22.5 mm
Spring-return	no
Width opening	-
Height opening	-
Supply voltage
With front ring	yes
Colour front ring	Chrome
With light source	no
Material front ring	Metal
Suitable for lighting	no
Type of control element	Short thumb-grip
Degree of protection (IP)	IP67/IP69K
Number of switch positions	2
Degree of protection (NEMA)	13
Switching function latching	yes
Type of electric connection	Screw connection
Number of contacts as change-over contact	0
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	0
