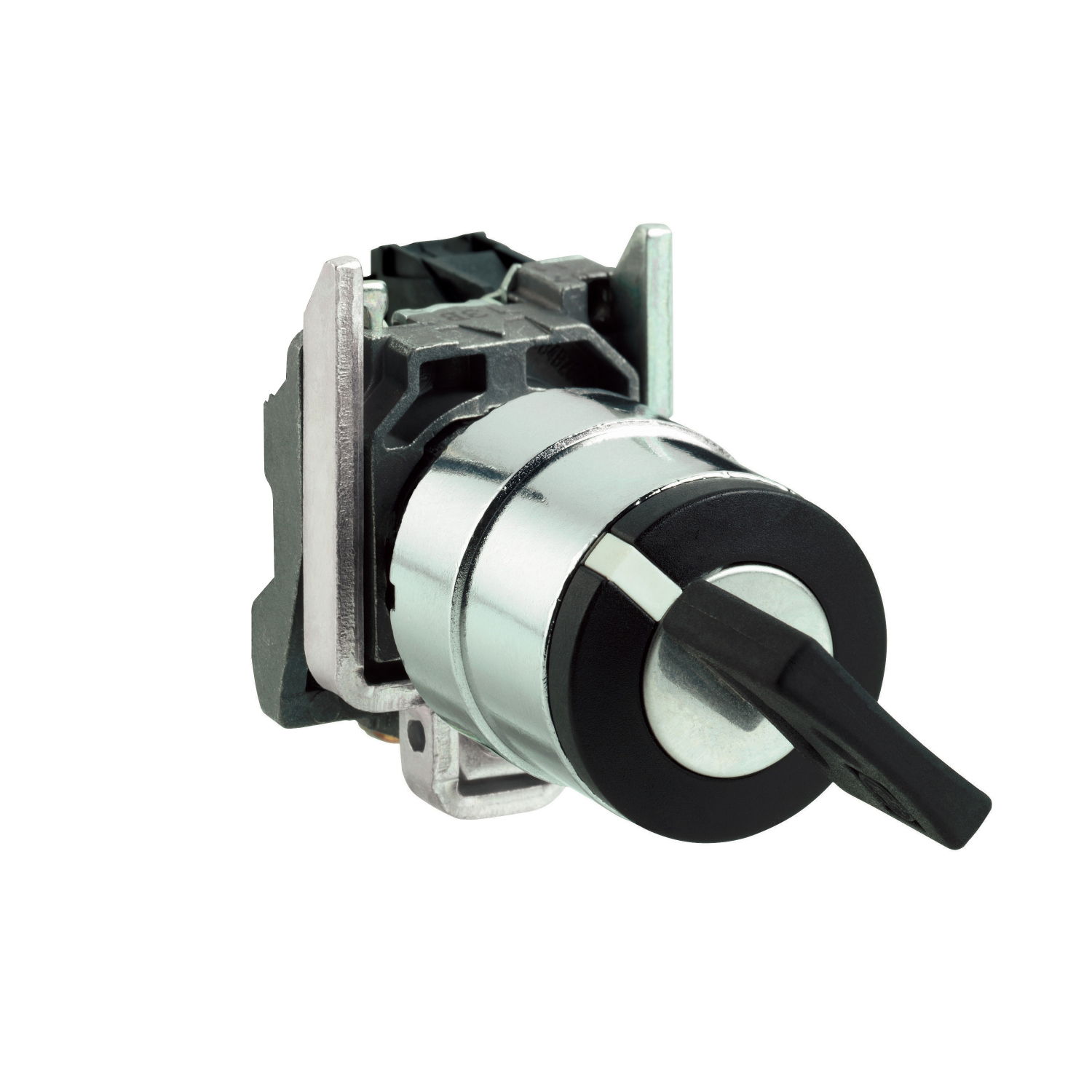

Key switch selector, metal, black, Ø22, key n°455, 2 positions, spring return right to left, 1 NO

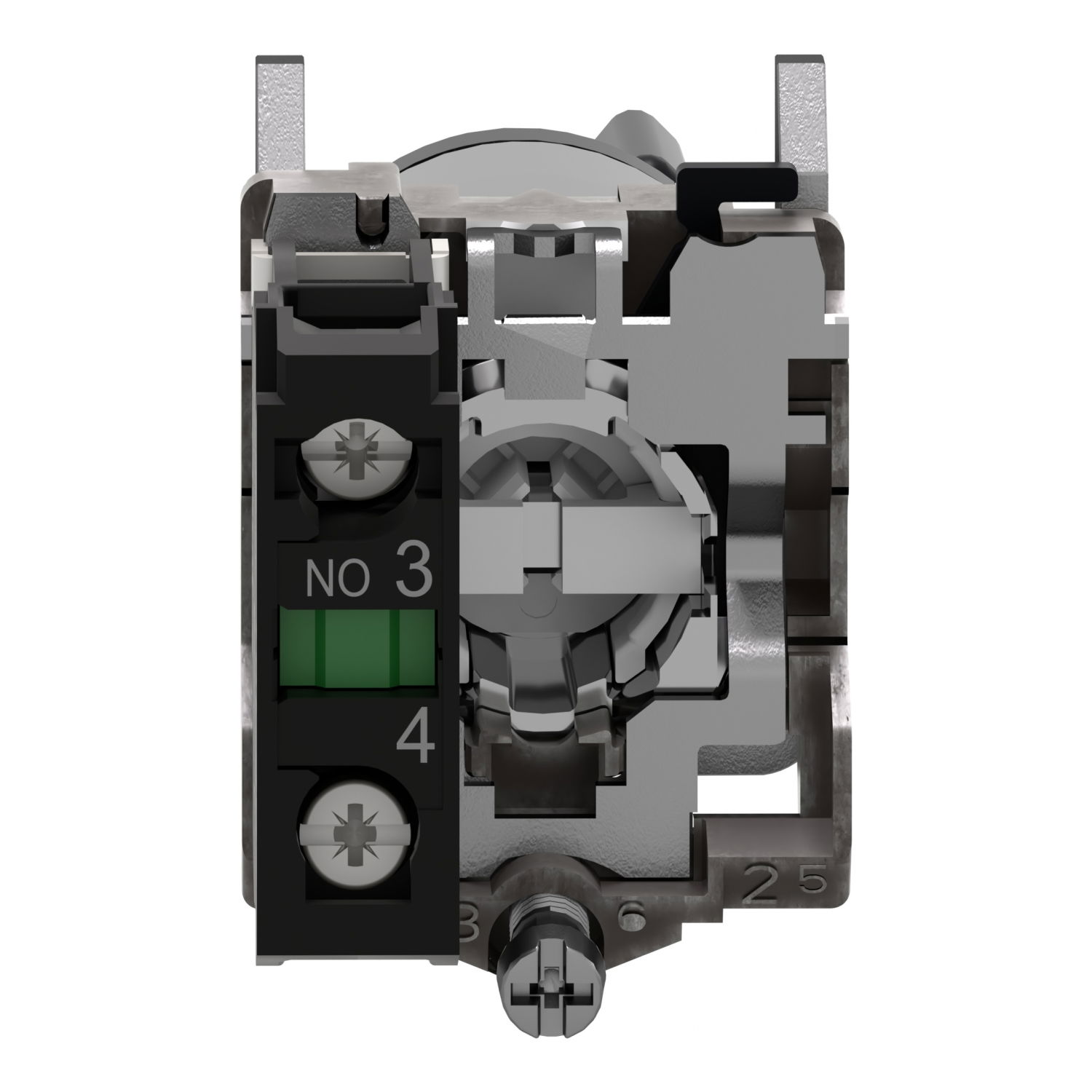

Key switch selector, metal, black, Ø22, key n°455, 2 positions, spring return right to left, 1 NO – Image 2 of 13

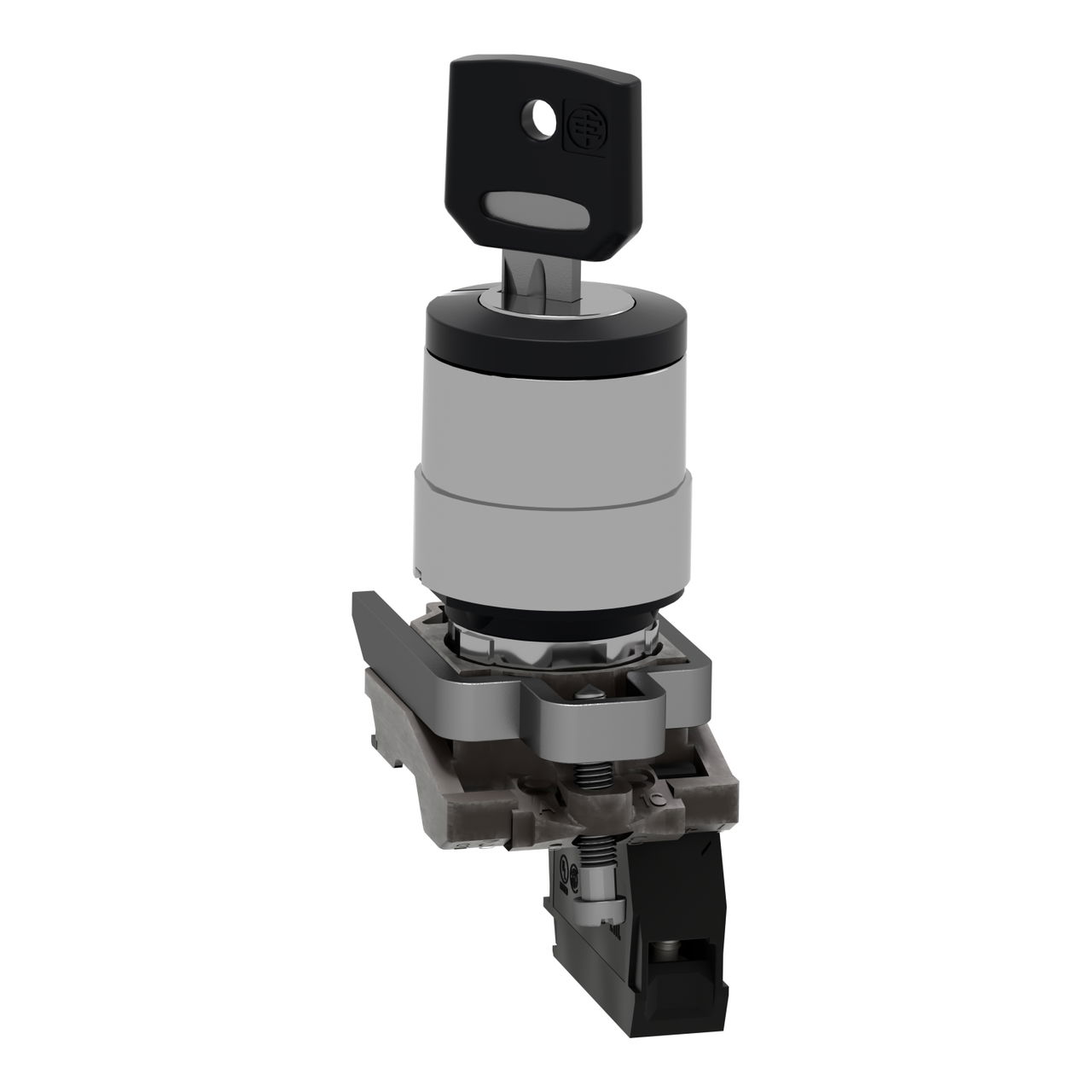

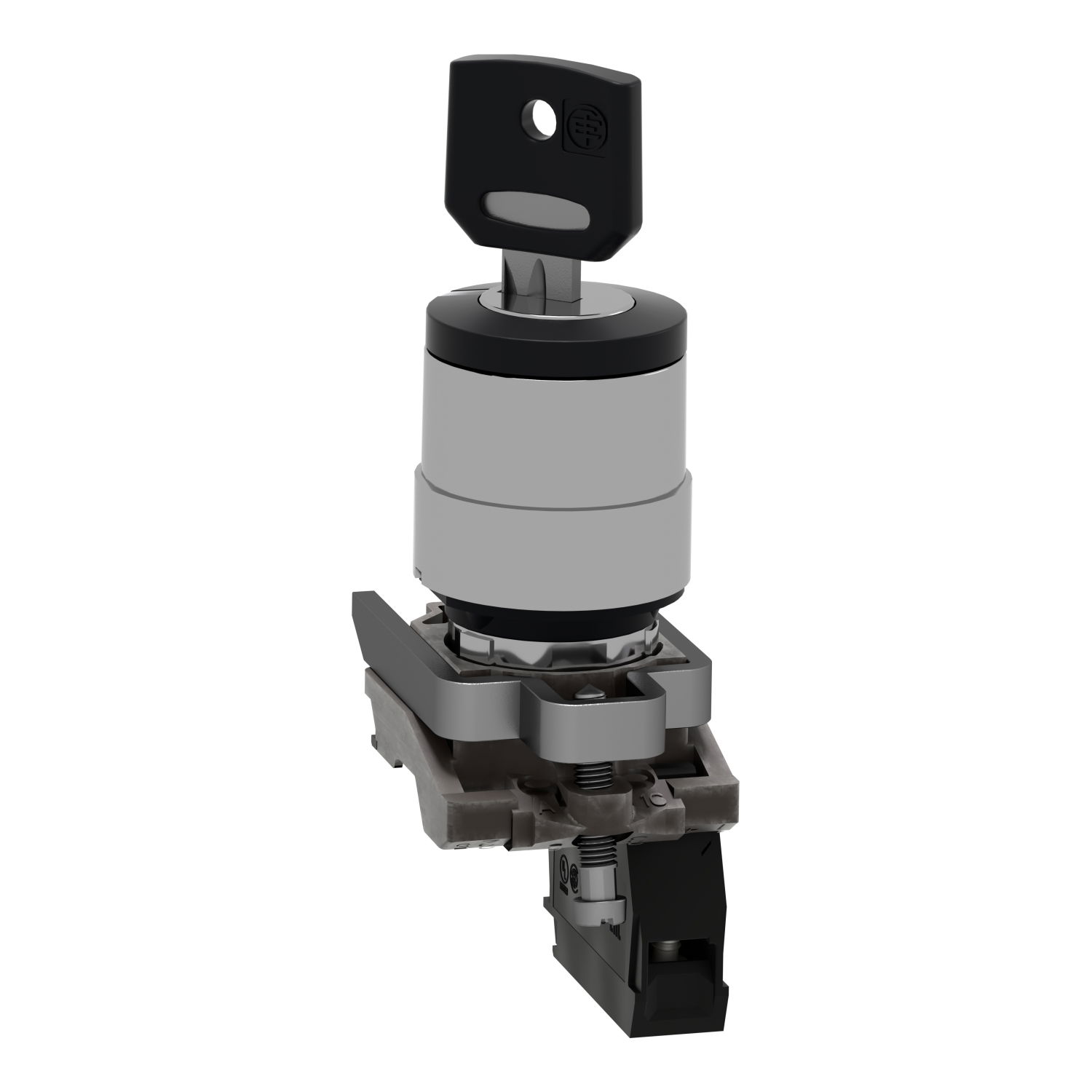

Key switch selector, metal, black, Ø22, key n°455, 2 positions, spring return right to left, 1 NO – Image 3 of 13

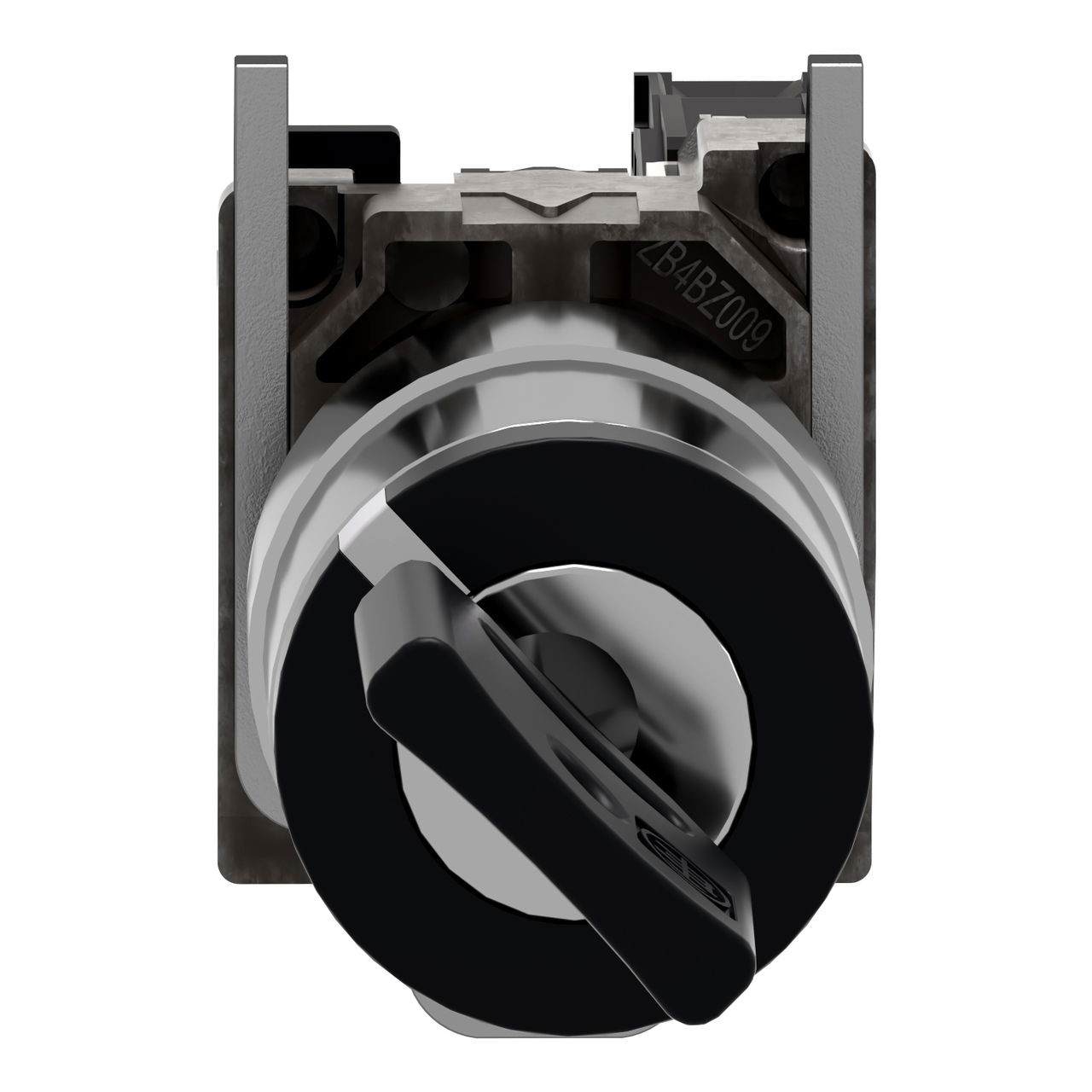

Key switch selector, metal, black, Ø22, key n°455, 2 positions, spring return right to left, 1 NO – Image 4 of 13

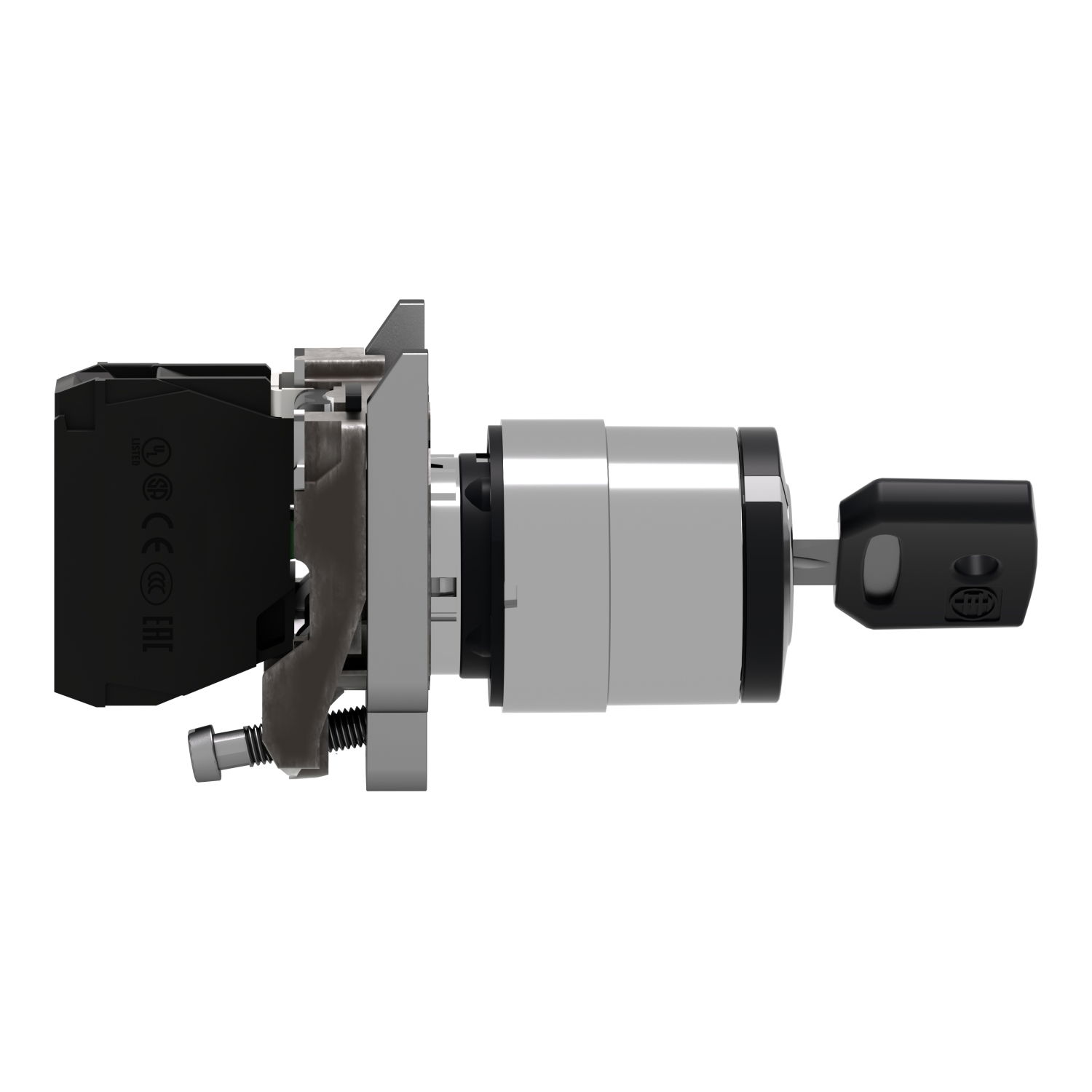

Key switch selector, metal, black, Ø22, key n°455, 2 positions, spring return right to left, 1 NO – Image 5 of 13

Key switch selector, metal, black, Ø22, key n°455, 2 positions, spring return right to left, 1 NO – Image 6 of 13

Key switch selector, metal, black, Ø22, key n°455, 2 positions, spring return right to left, 1 NO – Image 7 of 13

Key switch selector, metal, black, Ø22, key n°455, 2 positions, spring return right to left, 1 NO – Image 8 of 13

Key switch selector, metal, black, Ø22, key n°455, 2 positions, spring return right to left, 1 NO – Image 9 of 13

Key switch selector, metal, black, Ø22, key n°455, 2 positions, spring return right to left, 1 NO – Image 10 of 13

Key switch selector, metal, black, Ø22, key n°455, 2 positions, spring return right to left, 1 NO – Image 11 of 13

Key switch selector, metal, black, Ø22, key n°455, 2 positions, spring return right to left, 1 NO – Image 12 of 13

Key switch selector, metal, black, Ø22, key n°455, 2 positions, spring return right to left, 1 NO – Image 13 of 13

1 / 13

Popularity Top 30%

Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Key switch selector, metal, black, Ø22, key n°455, 2 positions, spring return right to left, 1 NO

Link copied

SKU
EAN
GTIN
MPN

Key switch selector, metal, black, Ø22, key n°455, 2 positions, spring return right to left, 1 NO by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £29.50 to £51.16 excl. VAT. Voltimum+ members earn 6 points per unit.

This Harmony XB4 modular black key selector switch (key no.455) has 2 positions, operates with a spring-return-to-left mechanism with key withdrawal on the left position. It has a metal bezel. This key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Loyalty points: 6

Price range: £ 29.50 - £ 51.16 Excl. VAT

ETIM group

Low-voltage industrial components

Specifications

Power loss	-
Colour button	Black
Hole diameter	22.5 mm
Spring-return	yes
Width opening	-
Height opening	-
Supply voltage
With front ring	yes
Colour front ring	Chrome
With light source	no
Material front ring	Metal
Suitable for lighting	no
Type of control element	Key
Degree of protection (IP)	IP66
Number of switch positions	2
Degree of protection (NEMA)	13
Switching function latching	yes
Type of electric connection	Screw connection
Number of contacts as change-over contact	0
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	0

Documents

Declaration of Conformity (Sustainability)

XB4BG61 REACh Regulation
