40mm Tower ROG Pole Buzzer Flash
1 / 12
40mm Tower ROG Pole Buzzer Flash
- SKU
- EAN
- GTIN
- MPN

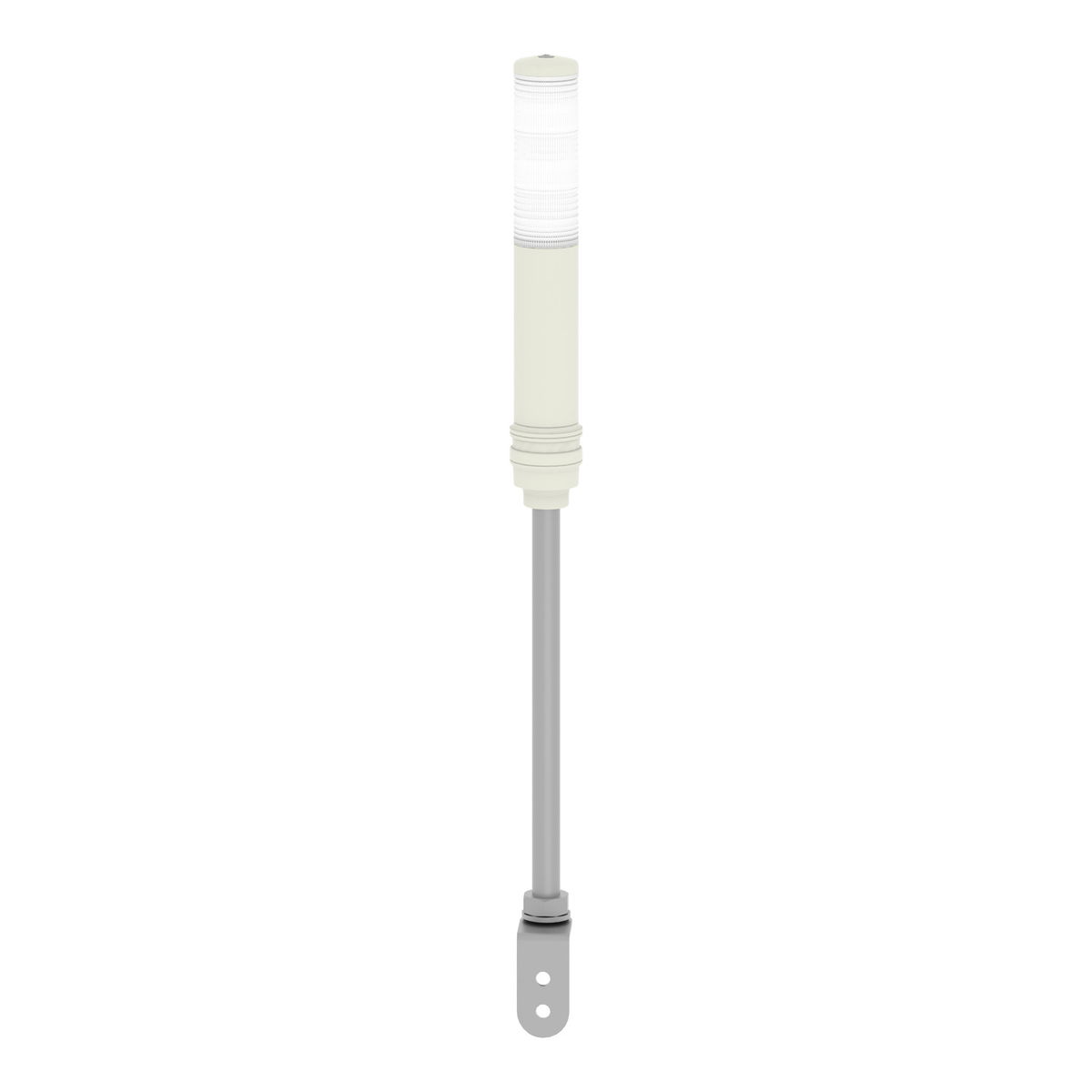

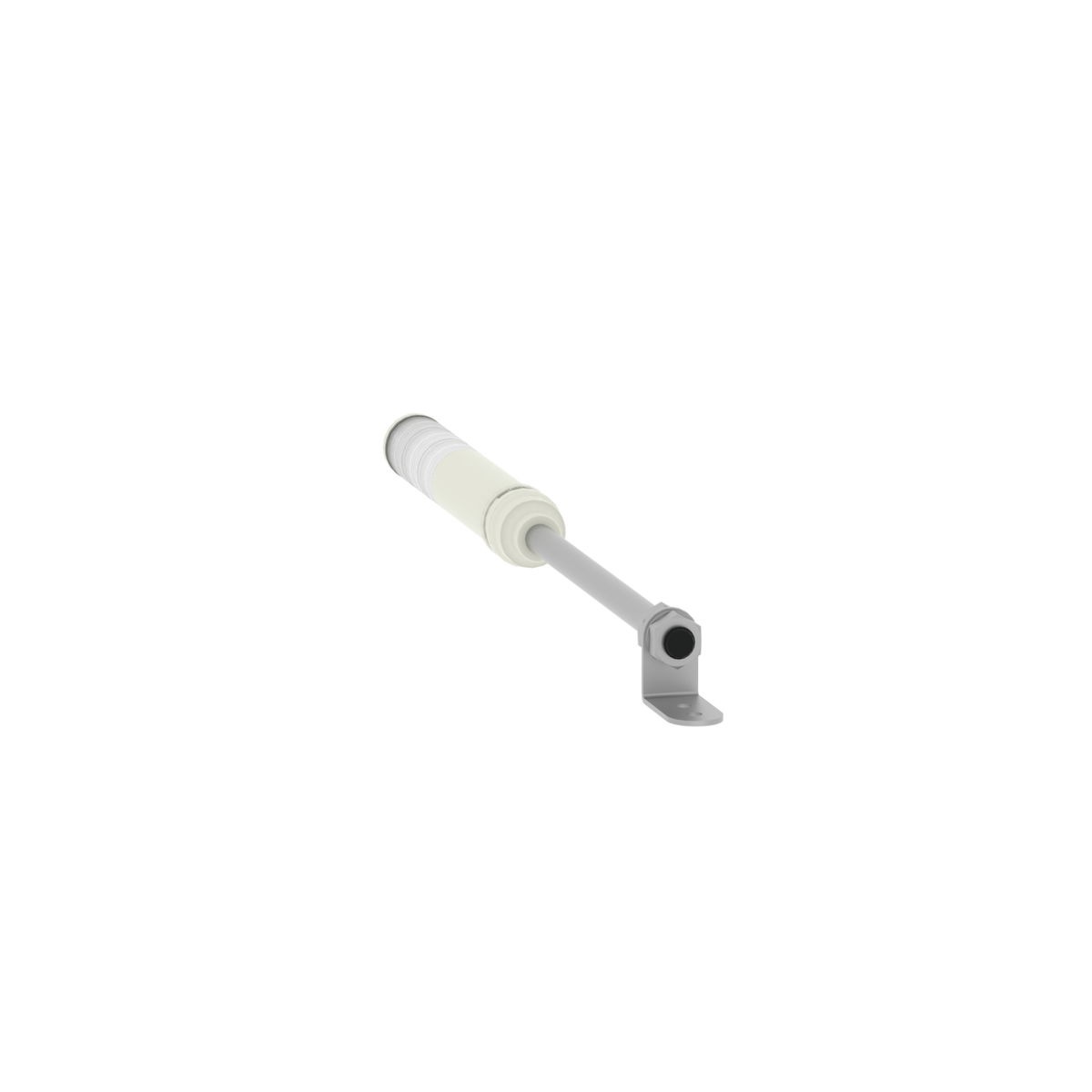

This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 40mm. It is supplied pre-assembled and pre-cabled with 3 illuminated signaling units (red, orange, green), a buzzer and a base mounted on a support tube with a bracket for mounting on horizontal (IP 54) or vertical surface (IP 23). Supply voltage is 24 V AC/DC. It is designed for long distance indication of the operating states of a machine, either visually by means of illuminated signaling units visible through 360° (super bright LED for steady or flashing light), or audibly by means of a buzzer. It is used mainly in the food-processing and medical sectors.
Loyalty points:
32
Price: £ 194.00 Excl. VAT
Categories
ETIM group
Specifications
| Depth | - |
| Width | - |
| Height | 594.5 mm |
| Loudness | 85 dB |
| Colour light 1 | Red |
| Colour light 2 | Orange |
| Colour light 3 | Green |
| Colour light 4 | - |
Documents
Instruction sheet
XVC4... Monolithic indicator banks - Diam. 40 mm, Instruction Sheet
Product data sheet
Catalog
Monolithic tower lights Harmony XVC, dia 40-60-100 catalog
Declaration of Conformity (Sustainability)
XVC4B35S EU RoHS Directive
Declaration of conformity
Manufacturer UK DOC XVC
CAD
XVC4B35S_CAD_DOC
CAD
XVC4B35S_CAD_DOC
CAD
XVC4B35S_CAD_DOC
