| Width |
- |
| Length |
- |
| EFNL0014 |
no |
| Lamp type |
LED not exchangeable |
| Reflector |
None |
| Ball-proof |
no |
| Beam angle |
Extreme wide beam >80° |
| Dimming RF |
no |
| Dimming DMX |
no |
| Dimming DSI |
no |
| Lamp holder |
None |
| Dimming DALI |
no |
| Height/depth |
93 mm |
| Power factor |
0.9 |
| Voltage type |
AC |
| Dimming 0-10 V |
no |
| Dimming 1-10 V |
no |
| Dimming Zigbee |
no |
| Housing colour |
Grey |
| Outer diameter |
273 mm |
| Type of wiring |
Ending |
| Colour of light |
White |

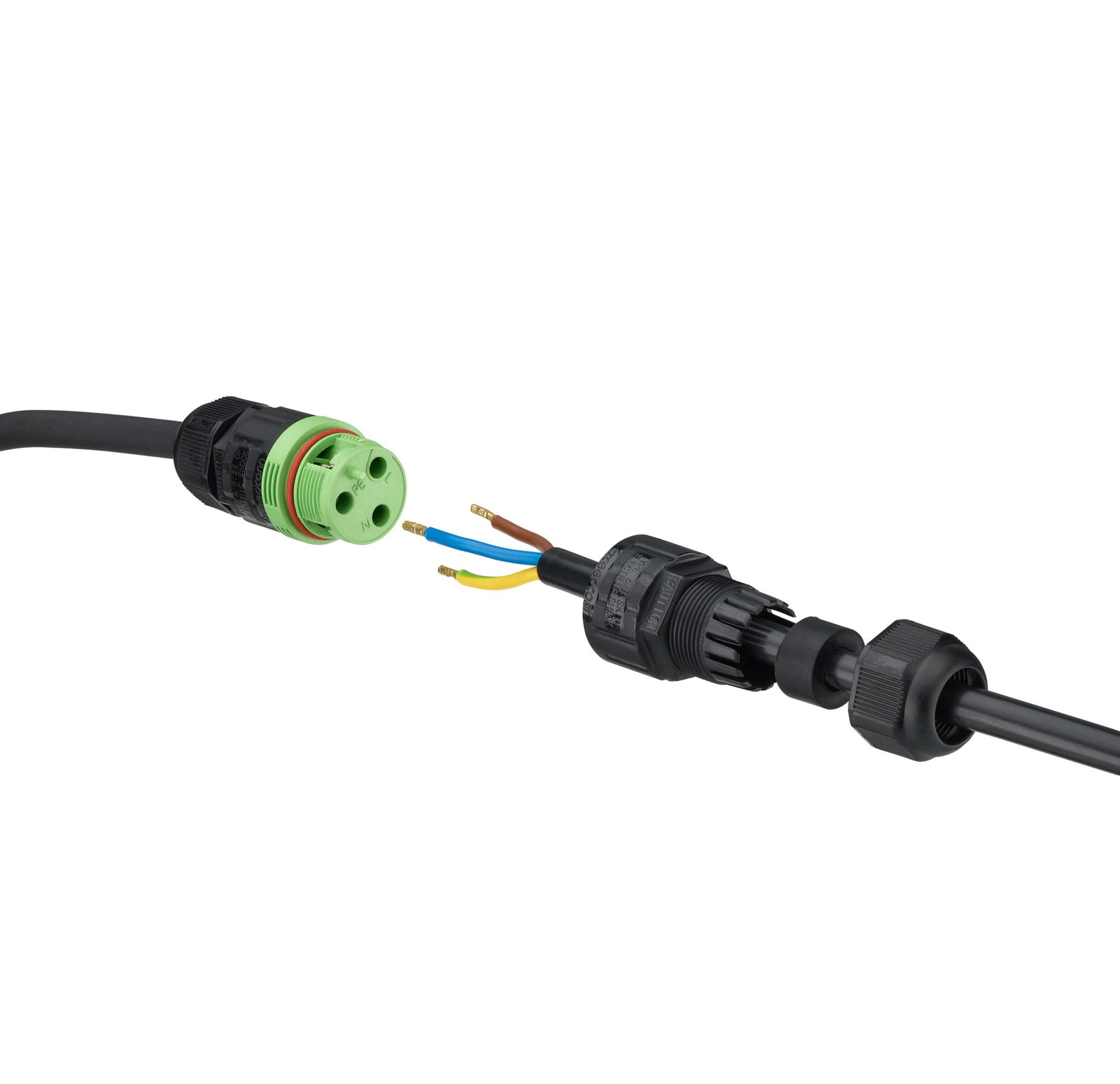

| Connection type |
Push-in clamp |
| Impact strength |
IK06 |

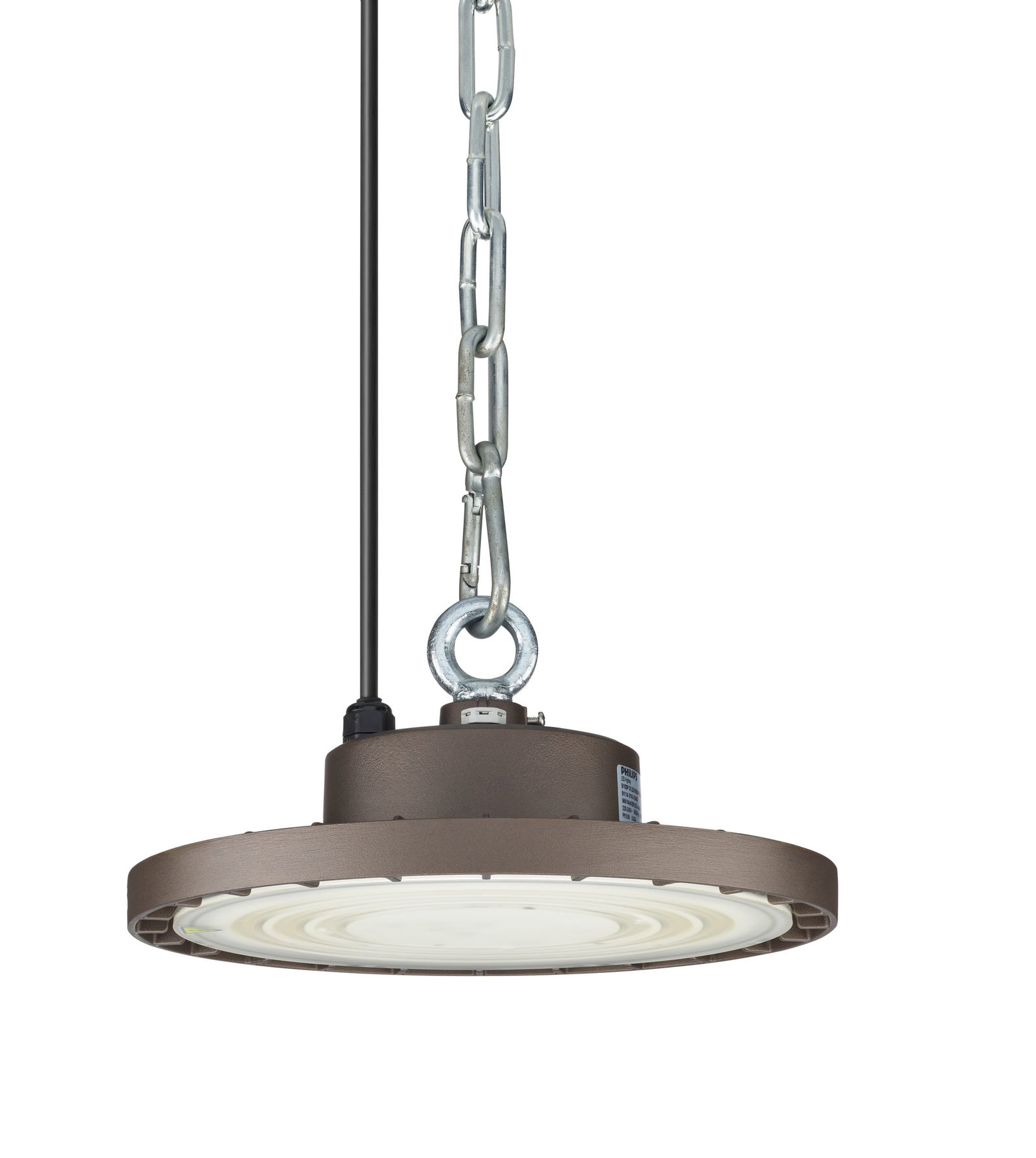

| Mounting method |
Pendant |
| No dim function |
yes |
| Nominal current |
390 - 470 mA |
| Nominal voltage |
220 - 240 V |
| Number of poles |
3 |
| Housing material |
Aluminium |
| Reflector colour |
Other |

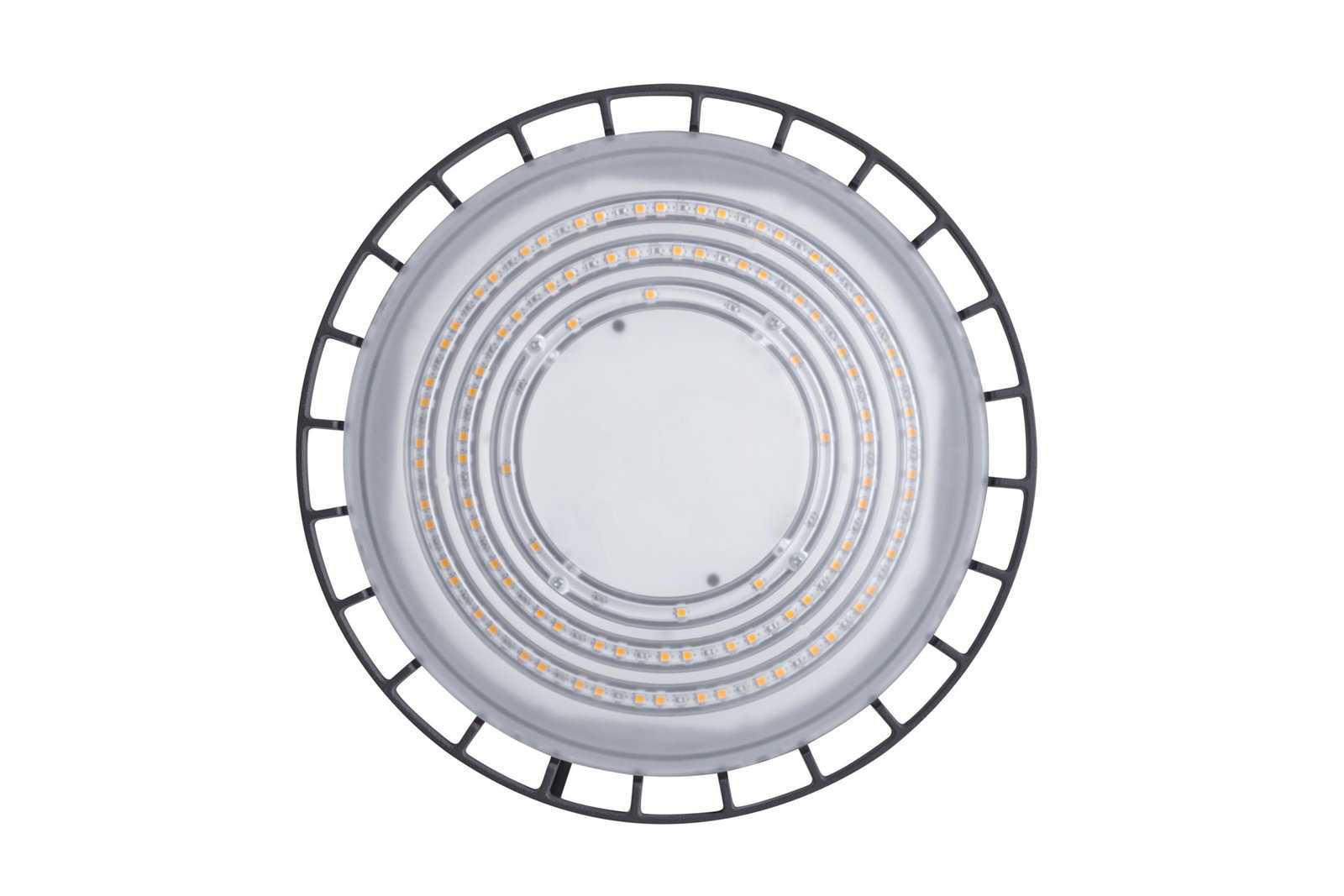

| Light distributor |
Refractor lens |
| Max. system power |
94 W |
| With control gear |
yes |
| With light source |
no |
| Colour temperature |
4000 - 4000 K |
| Dimming LineSwitch |
no |
| Light distribution |
Symmetric |
| Luminaire efficacy |
112 |
| Material reflector |
Other |
| Dimming programmable |
no |
| Type of control gear |
LED operating device current-controlled |
| Beam angle adjustable |
No |
| Dimming Touch and Dim |
no |
| With protective cover |
yes |
| Operation by Bluetooth |
no |
| Conductor cross section |
1 mm² |
| Suitable for lamp power |
77 - 94 W |
| Dimming with push-button |
no |
| Luminous flux adjustable |
No |
| Degree of protection (IP) |
IP65 |
| Exchangeable control gear |
no |
| Total harmonic distortion |
0.2 |
| Colour of light adjustable |
No |
| Colour rendering index CRI |
80-89 |
| Constant light output (CLO) |
no |
| Degree of protection (NEMA) |
- |
| Dimming Sine Wave Reduction |
no |
| Suitable for auxiliary lamp |
no |
| Suitable for emergency lighting |
no |
| Dimming mains voltage modulation |
no |
| Emergency power supply integrated |
no |
| Rated life time L70/B50 at 25 °C |
35000 h |
| Dimming potentiometer (integrated) |
no |
| Colour consistency (McAdam ellipse) |
SDCM5 |
| Dimming phase cut-on (leading edge) |
no |
| Suitable for number of light sources |
1 |
| Dimming phase cut-off (trailing edge) |
no |
| Protection class according to IEC 61140 |
I |
| Dimming manufacturer's proprietary system |
no |
| Filament test according to IEC 60695-2-11 |
650 °C - 30 s |
| Photobiological safety according to EN 62471 |
RG0 |
| Rated luminous flux according to IEC 62722-2-1 |
10500 |
| Rated ambient temperature according to IEC 62722-2-1 |
35 - 35 °C |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) |
8 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) |
13 |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) |
7.5 % |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) |
- |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) |
70 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) |
- |
| Energy efficiency class of the light source according to EU regulation 2019/2015 |
E |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 |
no |
