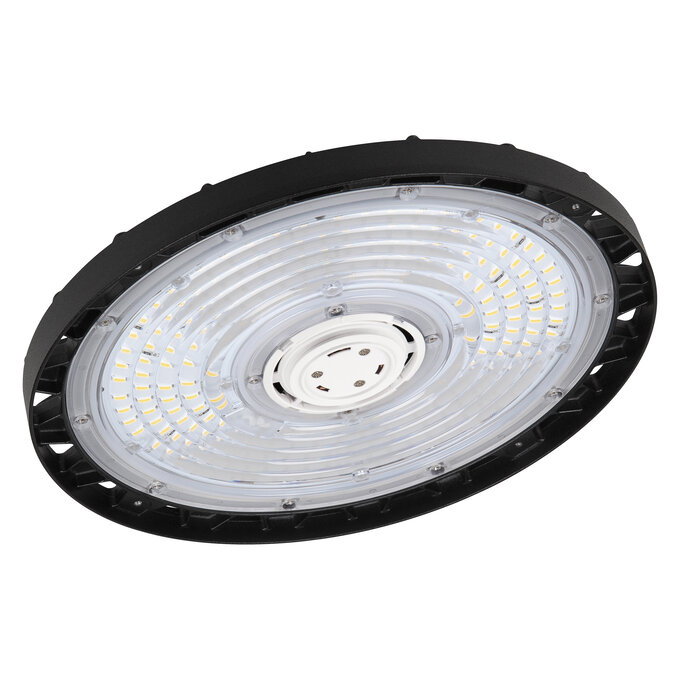

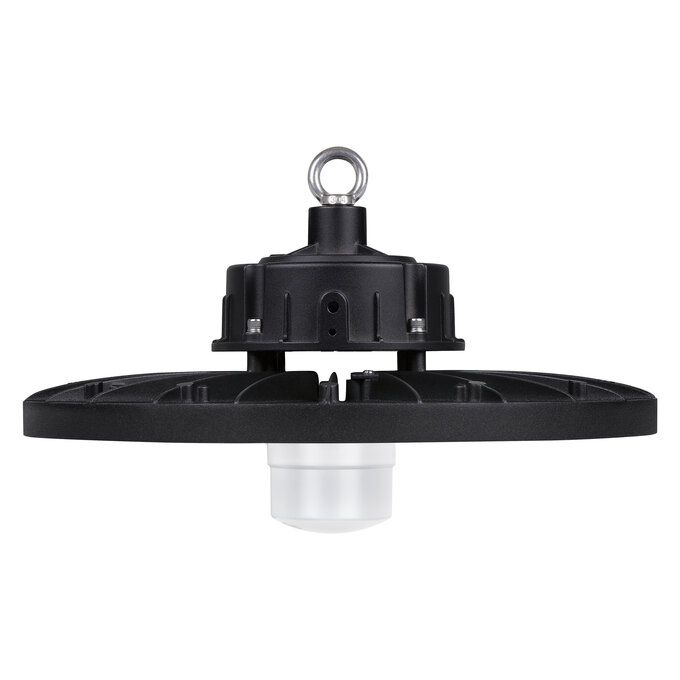

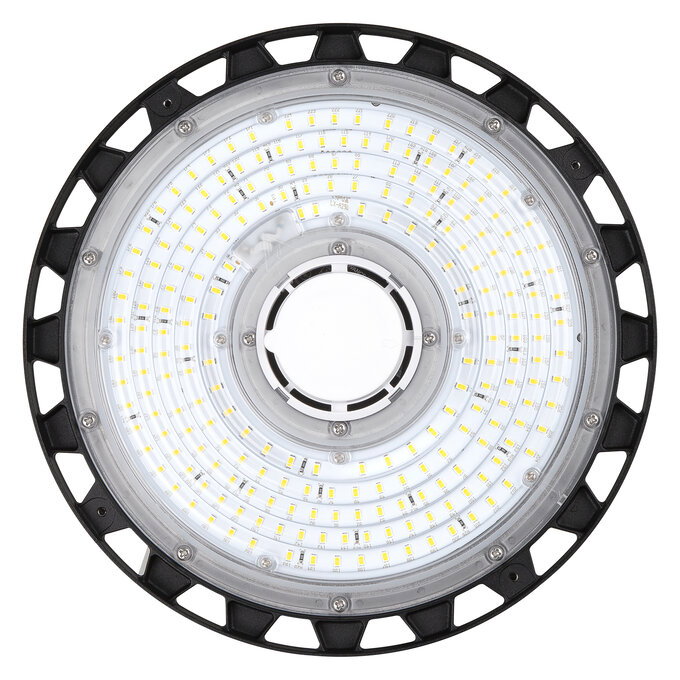

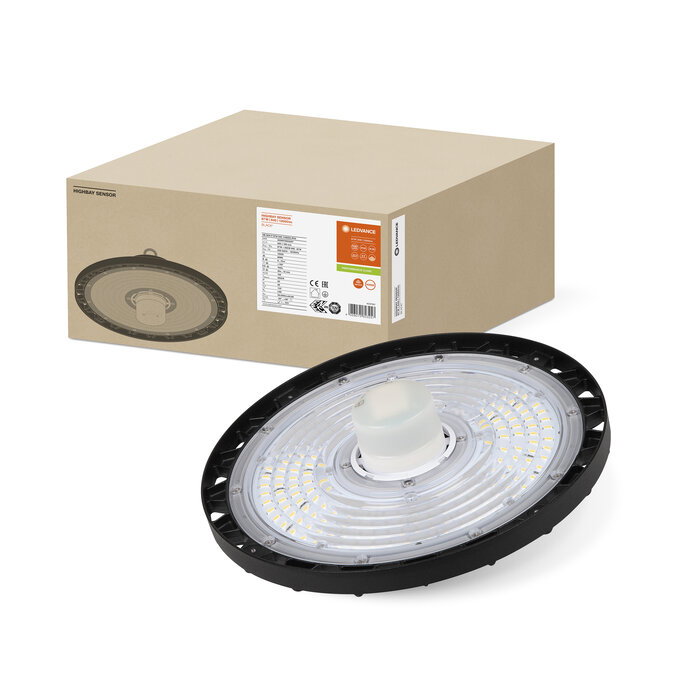

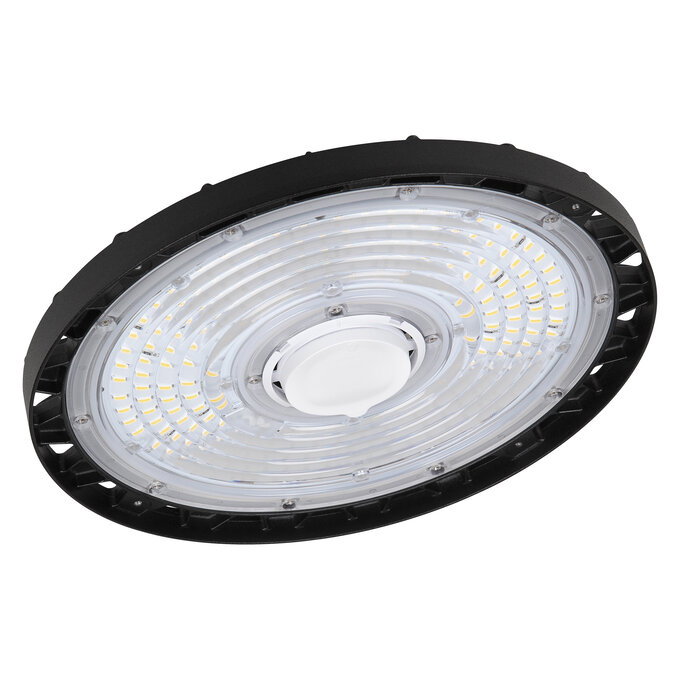

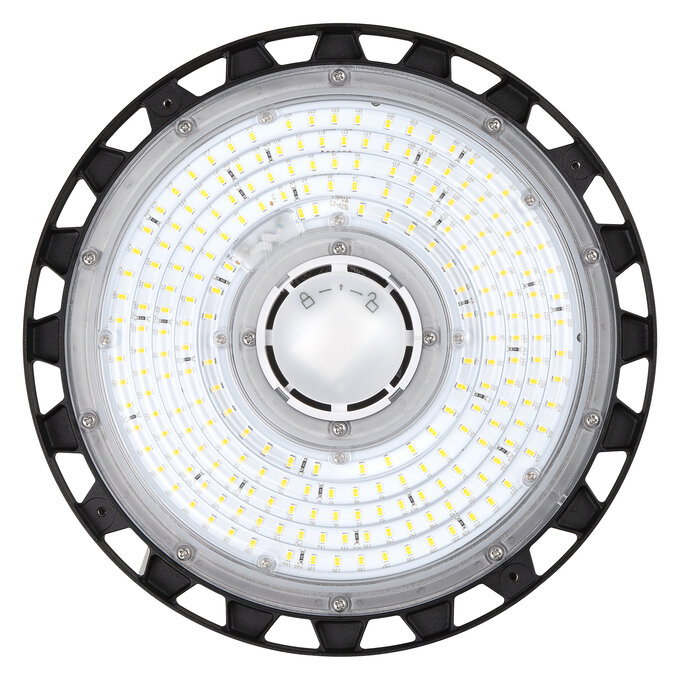

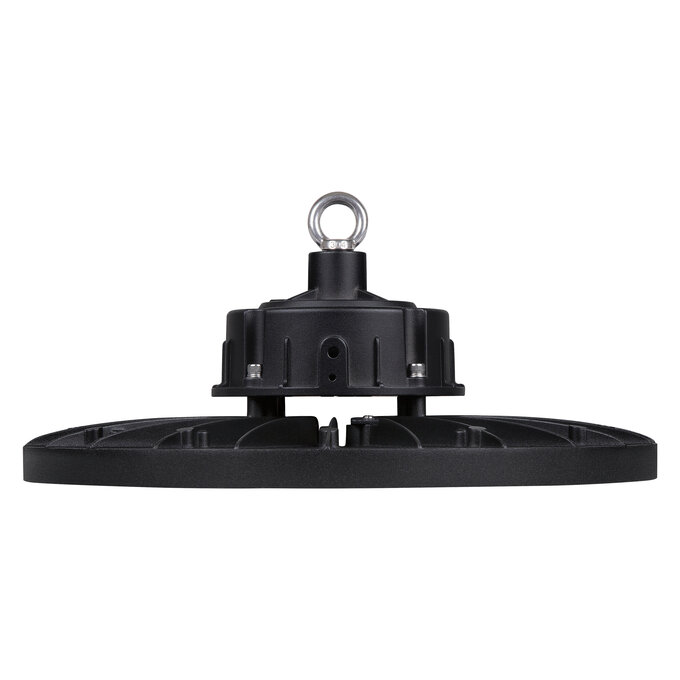

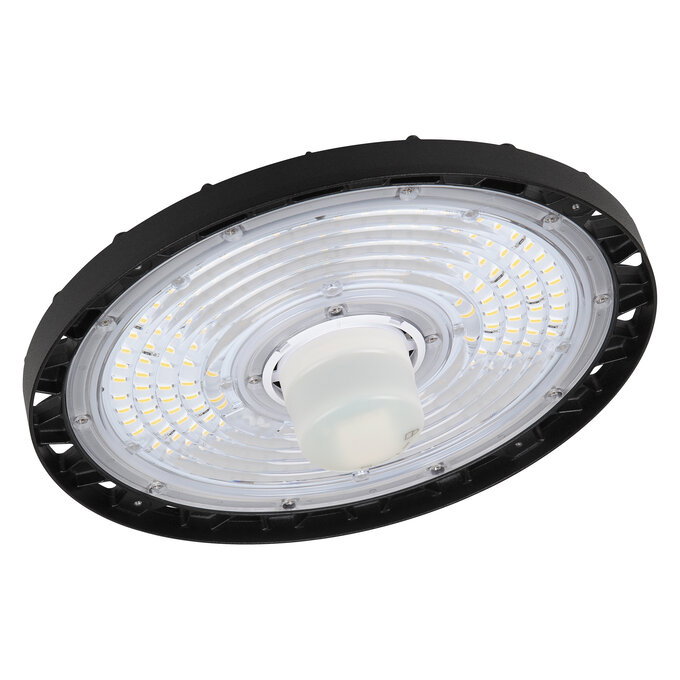

HIGH BAY SENSOR GEN 4 87W 840 110DEG IP65

HIGH BAY SENSOR GEN 4 87W 840 110DEG IP65 by LEDVANCE is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £201.26 to £255.87 excl. VAT.

High-bay luminaires in IP65 with high frequency sensor. Product features: High frequency sensor for daylight and motion detection. Different luminous flux and beam angle for mounting heights of ~ 6 m to 10 m in 4000 K. Product benefits: Multiple adjustments of sensor range, daylight detection and hold time. High luminous efficacy. Energy savings of up to 64 % compared to conventional high bay luminaires. 5 years guarantee. Suitable for use in dusty and damp locations thanks to high IP rating. Areas of application: Replacement for high bay luminaires with mercury vapor or metal halide lamps. Warehouses. Logistics halls. Industry. High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies). Equipment / Accessories: Sensor, mounting hook and mounting bracket included. Reflectors, refractors and remote control available as separate accessory.

Product identifiers

SKU: 4058075603257
EAN: 4058075603257
GTIN: 4058075603257
MPN: HB SEN P 87W 840 110DEG IP65

Price range: £ 201.26 - £ 255.87 Excl. VAT

Specifications

Width -
Length 280.00
Lamp type LED not exchangeable
Reflector None
Ball-proof no
Beam angle Extreme wide beam >80°
Dimming RF no
Dimming DMX no
Lamp holder None
Height/depth 190.00
Voltage type AC
Dimming 1-10 V yes
Housing colour Black
Type of wiring Ending
Connection type -
Mounting method -
Nominal current 400 - 400
Number of poles 5
Reflector colour -
Max. system power 87.00
With light source yes
Dimming LineSwitch no
Luminaire efficacy 150
Dimming programmable no
Beam angle adjustable No
With protective cover yes
Conductor cross section -
Dimming with push-button no
Degree of protection (IP) IP65
Total harmonic distortion -
Colour rendering index CRI 80-89
Degree of protection (NEMA) -
Suitable for auxiliary lamp no
Dimming mains voltage modulation no
Rated life time L70/B50 at 25 °C 80000
Colour consistency (McAdam ellipse) -
Suitable for number of light sources 0
Protection class according to IEC 61140 I
Filament test according to IEC 60695-2-11 850 °C - 30 s
Rated luminous flux according to IEC 62722-2-1 13000
Max. number of luminaires per miniature circuit breaker B16 (MCB) 5
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) -
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) -
Energy efficiency class of the light source according to EU regulation 2019/2015 -
