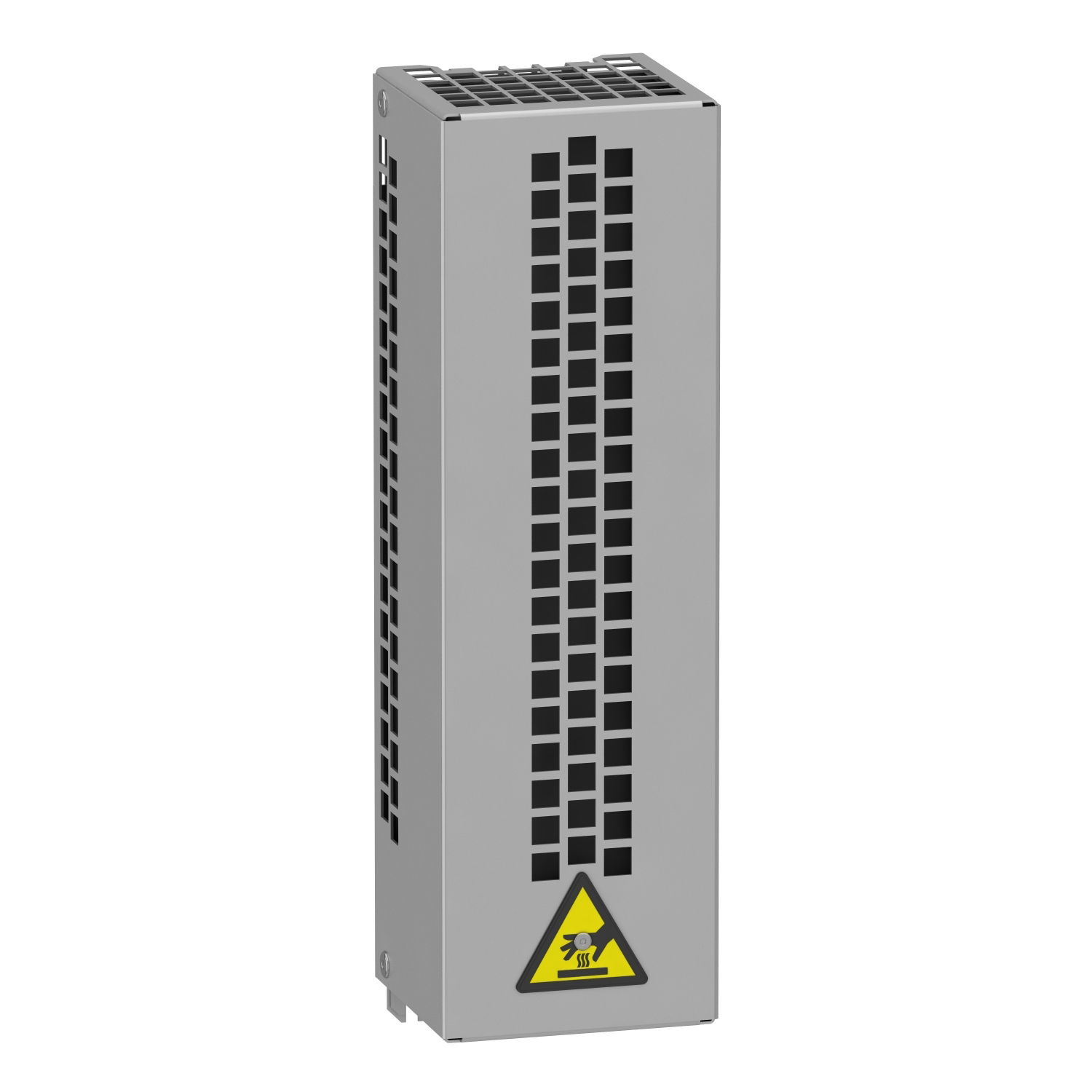

Braking resistor - 60 ohms - 0.16 kW - IP20

Braking resistor - 60 ohms - 0.16 kW - IP20 by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £147.38 excl. VAT. Voltimum+ members earn 19 points per unit.

This braking resistor is an option for variable speed drives of Altivar ranges. It has an Ohmic value of 60Ohms at 20°C and its protection index is IP20. It is compatible with Altivar Process ATV900, Altivar Machine ATV320 and 340, a,d Easy Altivar 310 and 310L ranges. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. the power available is 0.16kW at 50°c. It weighs 2kg and its dimensions are, 105mm wide, 345mm high, 100mm deep. This resistor is designed to be mounted on the outside of the enclosure.

Product identifiers

SKU: VW3A7731
EAN: 3606480802256
GTIN: 3606480802256
MPN: VW3A7731

Voltimum+ Loyalty Programme Loyalty points: 19

Price: £ 147.38 Excl. VAT

Categories

Electronic Components Resistors

ETIM group

Low-voltage industrial components

Specifications

Accessory yes
Spare part no
Type of accessory/spare part Breaking resistance

Documents

Deeplink product page

Open

Environmental compliance declaration

VW3A7731 REACh Declaration

Open

Product data sheet

Open

Catalogue

Easy Series Automation and Control Essentials Catalog-2024

Open

Environmental compliance declaration

VW3A7731 China RoHS Declaration

Open

Environmental compliance declaration

VW3A7731 EU RoHS Declaration

Open

Declaration of conformity

ATV310L - EU Declaration

Open
