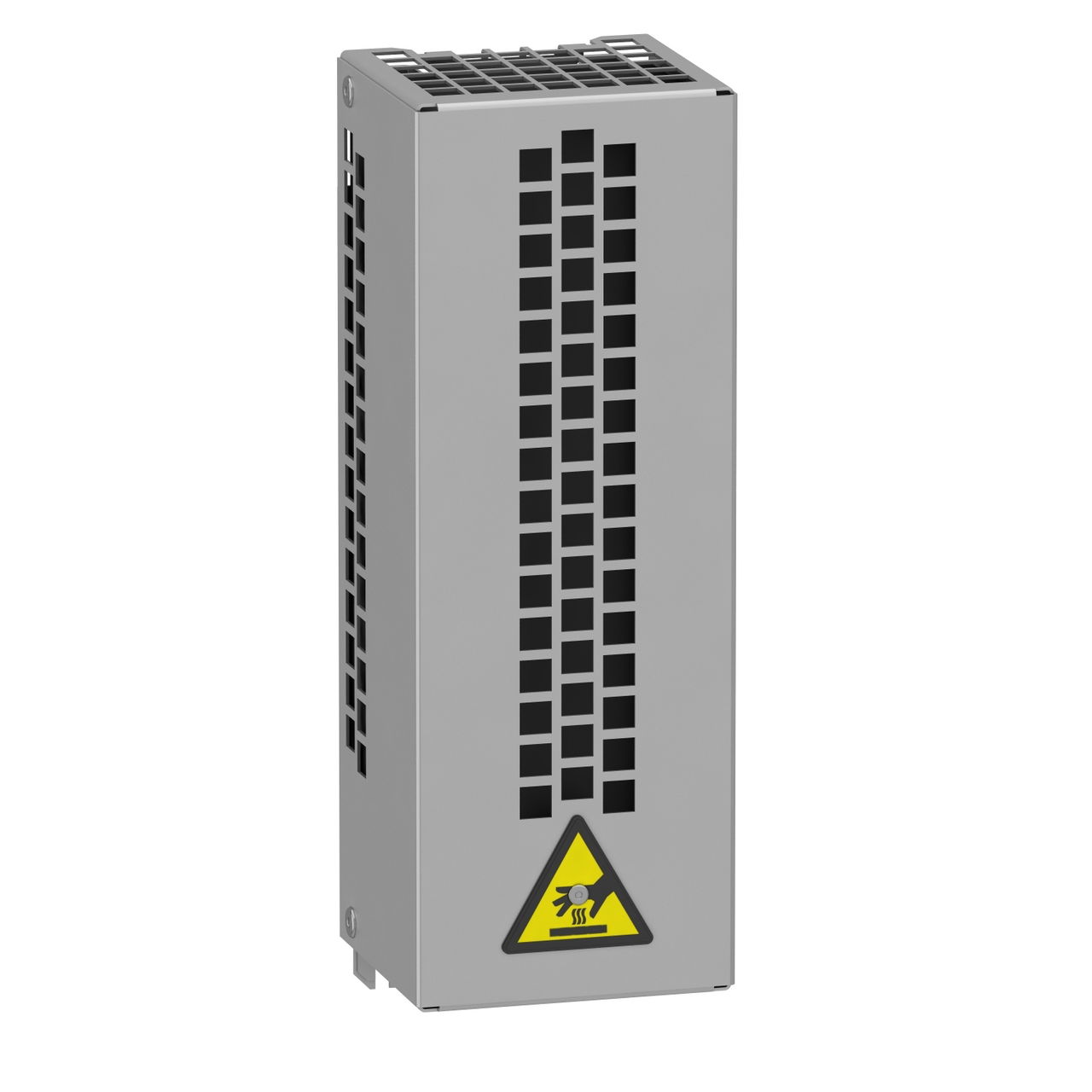

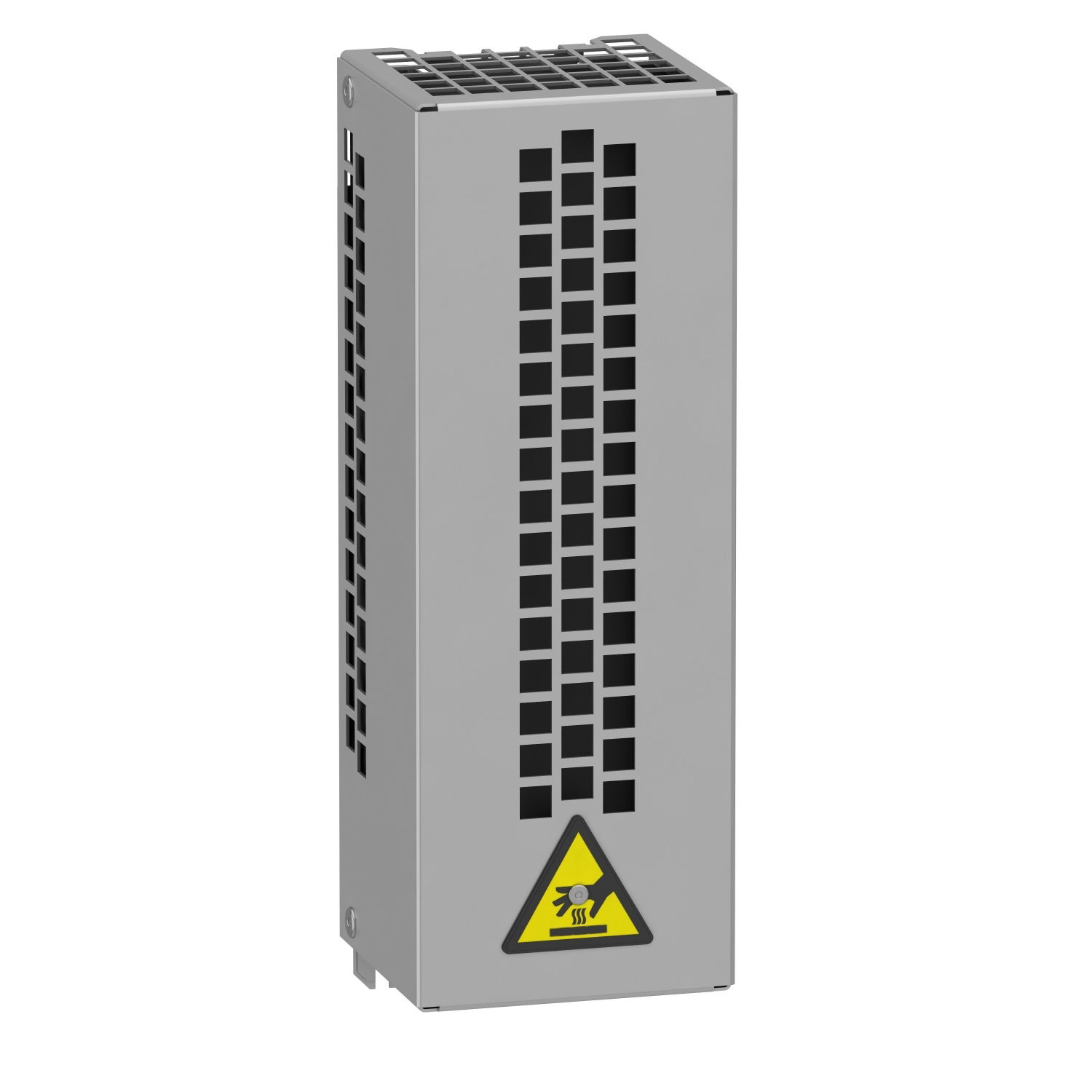

Braking resistor - 100 ohms - 0.1 kW - IP20

Link copied
SKU
EAN
GTIN
MPN

Braking resistor - 100 ohms - 0.1 kW - IP20 by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 1 more. It is currently in stock at 2 of them. Trade prices range from £92.73 to £126.17 excl. VAT. Voltimum+ members earn 16 points per unit.

This braking resistor is an option for variable speed drives of Altivar ranges. It has an Ohmic value of 100Ohms at 20°C and its protection index is IP20. It is compatible with Altivar Process ATV900, Altivar Machine ATV320 and 340, a,d Easy Altivar 310 and 310L ranges. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. the power available is 0.1kW at 50°c. It weighs 1.5kg and its dimensions are, 105mm wide, 295mm high, 100mm deep. This resistor is designed to be mounted on the outside of the enclosure.

Voltimum+ Loyalty Programme Loyalty points: 16

Price range: £ 92.73 - £ 126.17 Excl. VAT

Categories

Resistors Electronic Components

ETIM group

Low-voltage industrial components

Specifications

Accessory yes
Spare part no
Type of accessory/spare part Breaking resistance

Documents

Declaration of Conformity (Sustainability)

VW3A7730 REACh Regulation

Open

Product data sheet

Open

Catalog

Discover the catalog for Altivar ATV305 variable speed drives

Open

Declaration of Conformity (Sustainability)

VW3A7730 China RoHS Regulation

Open

Declaration of Conformity (Sustainability)

VW3A7730 EU RoHS Directive

Open

Declaration of conformity

ATV930 & ATV950 UK DECLARATION

Open
