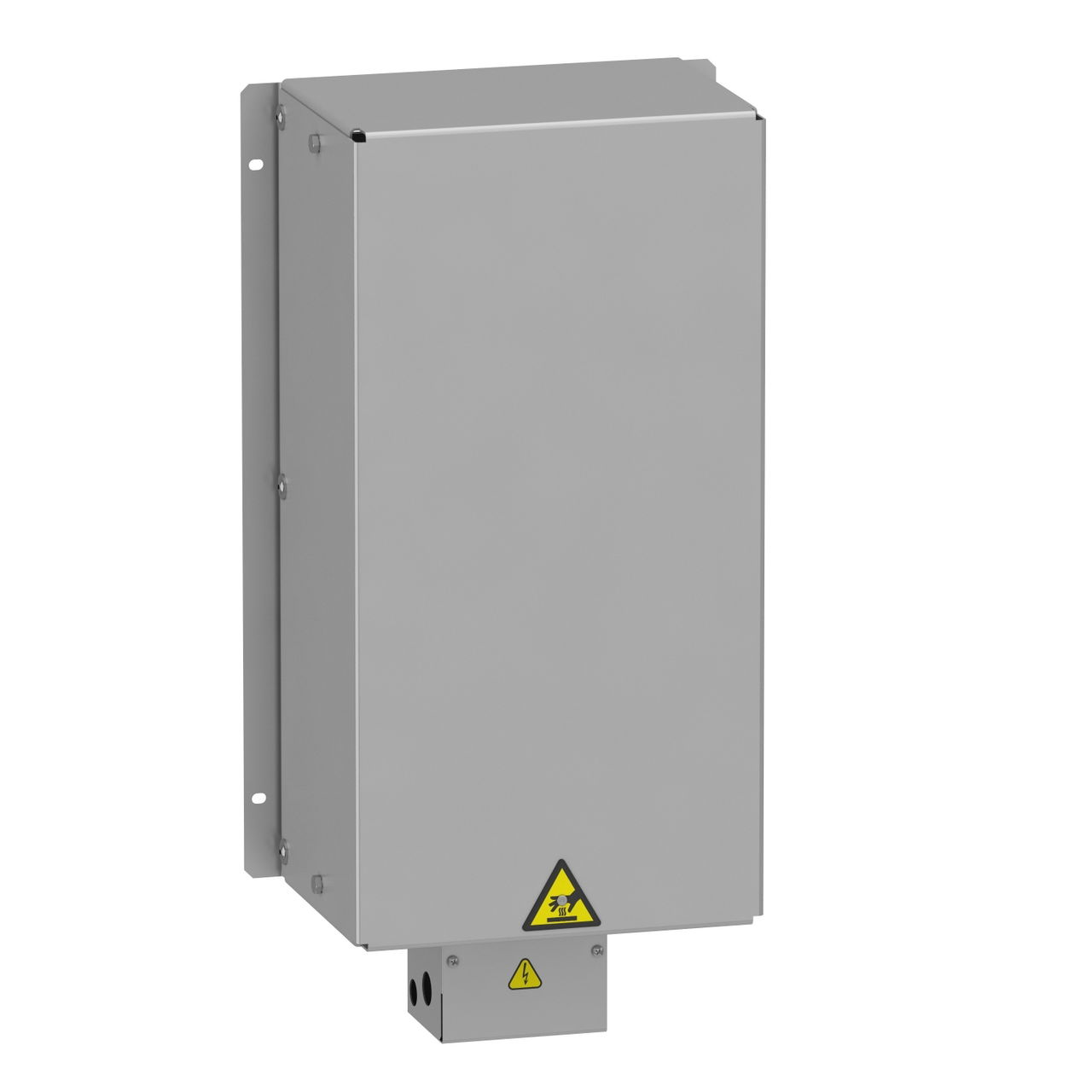

Braking resistor - 16 ohms - 2.2 kW - IP20

Braking resistor - 16 ohms - 2.2 kW - IP20 by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £1,079.00 to £1,122.91 excl. VAT. Voltimum+ members earn 147 points per unit.

This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 16Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP20. It weighs 7kg. This resistor is designed to be mounted on the outside of the enclosure.

Product identifiers

SKU: VW3A7743
EAN: 3606480802362
GTIN: 3606480802362
MPN: VW3A7743

Voltimum+ Loyalty Programme Loyalty points: 147

Price range: £ 1,079.00 - £ 1,122.91 Excl. VAT

Categories

Resistors Electronic Components

ETIM group

Low-voltage industrial components

Specifications

Accessory yes
Spare part no
Type of accessory/spare part Breaking resistance

Documents

Deeplink product page

Open

Environmental compliance declaration

VW3A7743 REACh Declaration

Open

Product data sheet

Open

Catalogue

Discover the catalog for Altivar Machine ATV320 variable speed drive

Open

Environmental compliance declaration

VW3A7743 EU RoHS Declaration

Open

Environmental compliance declaration

VW3A7743 China RoHS Declaration

Open
