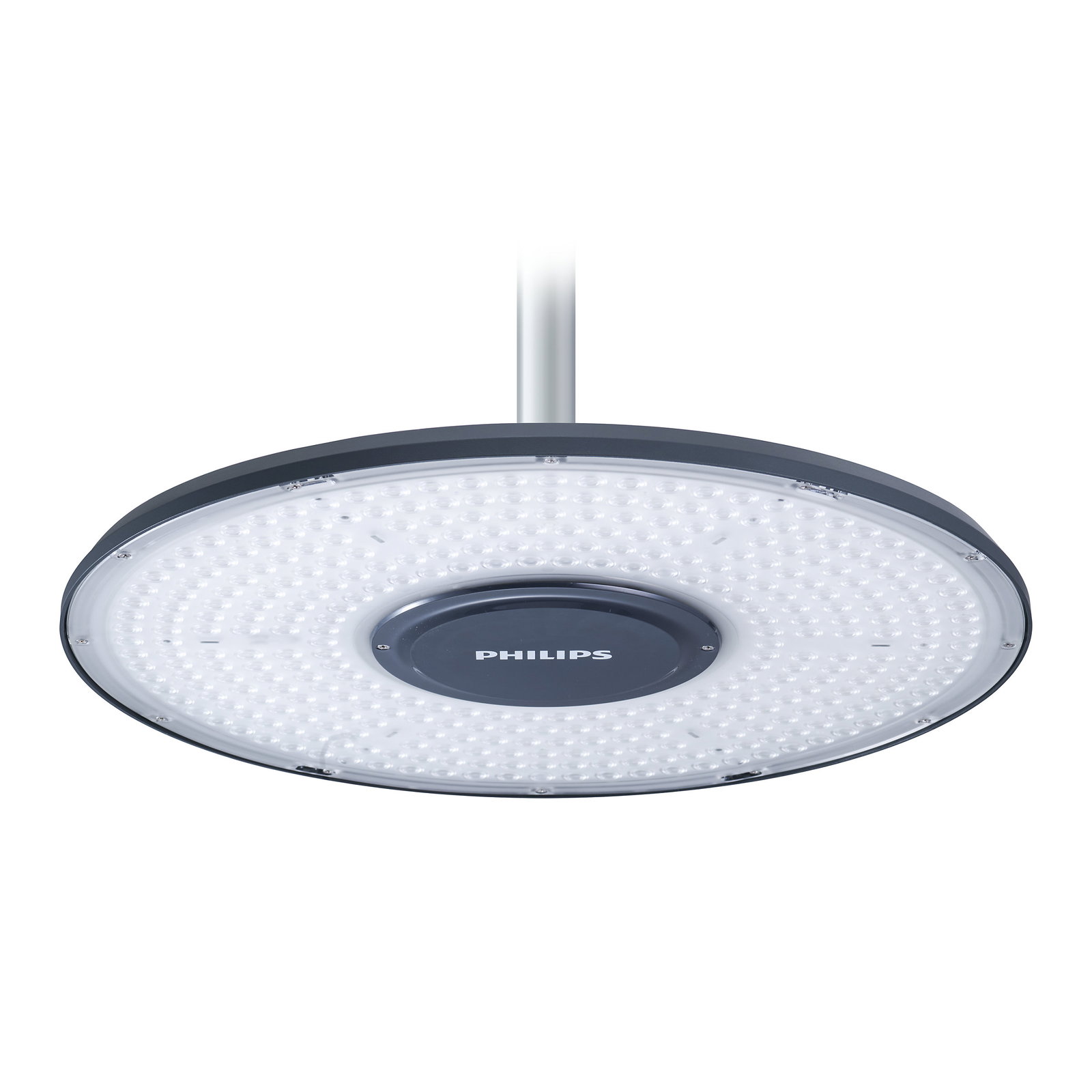

CoreLine Highbay Gen6, UltraEfficient, 155 W, 30000 lm, 4000 K, Beam angle 90°, IP66, IK08

CoreLine Highbay Gen6, UltraEfficient, 155 W, 30000 lm, 4000 K, Beam angle 90°, IP66, IK08

Aluminium die cast, Grey, Basalt grey (RAL7012), Single layer powder coating, Bracket, Surface, Suspended, Power supply unit (On/Off), 30000 lm, 155 W, 193 lm/W, 4000 K, (0.3818,0.3797) SDCM <5, Beam angle 90°, IP66 | Dust penetration-protected, jet-proof, IK08 | 5 J vandal-protected, Safety class I, Screw connector

Product identifiers

SKU: 911401556245

Price: £ 0.00 Excl. VAT

Specifications

Cable Cable 0.3 m with connector 3-pole
CE mark Yes
Dimmable No
ENEC mark ENEC mark
Connection Screw connector
Optic type Beam angle 90°
Inrush time 0.128 ms
Input Voltage 200 to 240 V
Glow-wire test Temperature 650 °C, duration 30 s
Inrush current 91.5 A
Optic material Polycarbonate
Driver included Yes
Housing material Aluminium die cast
Control interface -
Fixation material Aluminium
Maximum dim level Not applicable
Reflector material -
Initial chromaticity (0.3818,0.3797) SDCM <5
Constant light output No
Luminous flux tolerance +/-10%
Ambient temperature range -40 to +50 °C
Beam angle of light source 120 degree(s)
Luminaire light beam spread 90°
Power consumption tolerance +/-10%
Mech. impact protection code IK08 | 5 J vandal-protected
Driver/power unit/transformer Power supply unit (On/Off)
Luminous efficacy (rated) (nom.) 193 lm/W
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 35000 h L85
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 75000 h L80
