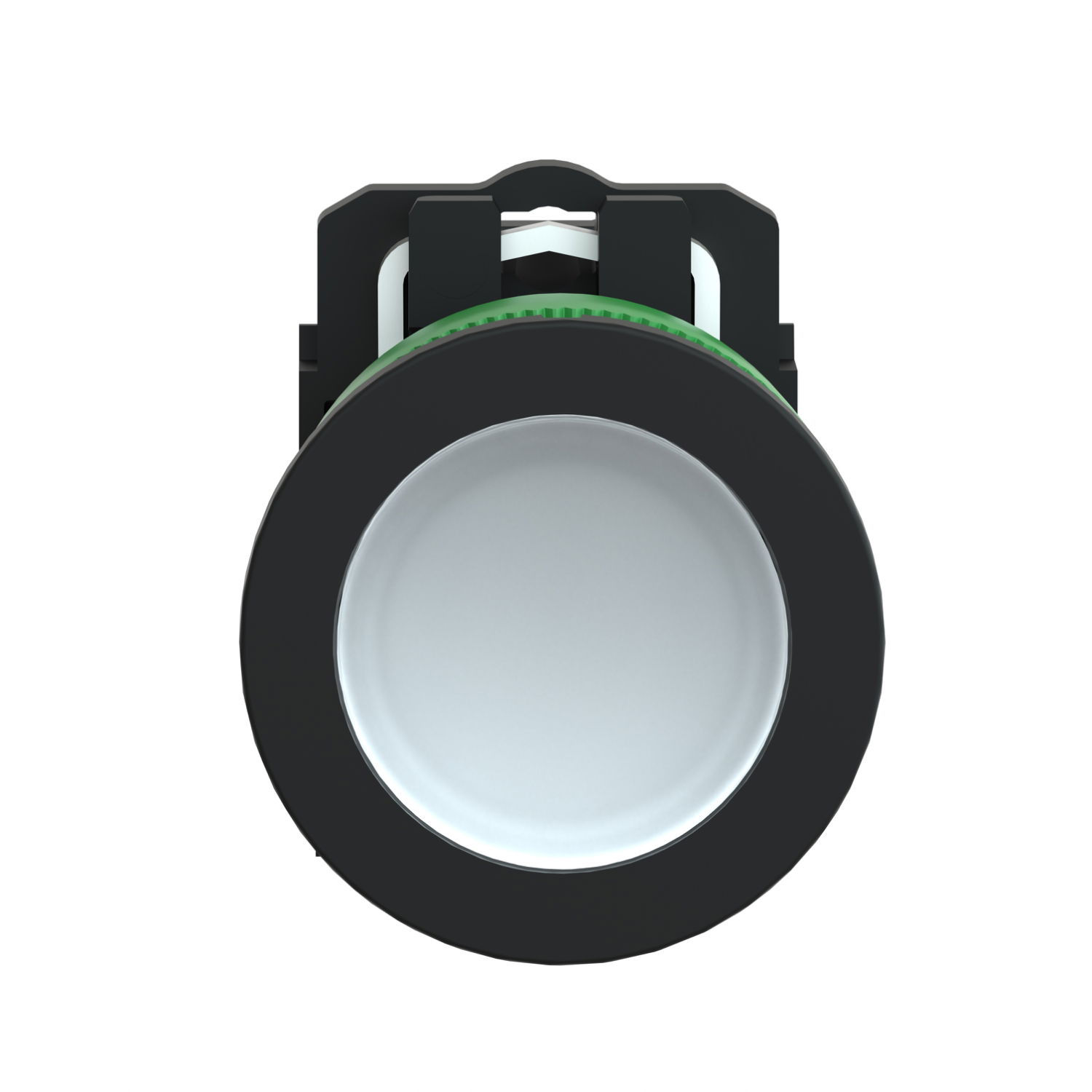

Pilot light, Harmony XB5, grey plastic, white flush mounted, 30mm, universal LED, 230...240V AC – Image 5 of 13

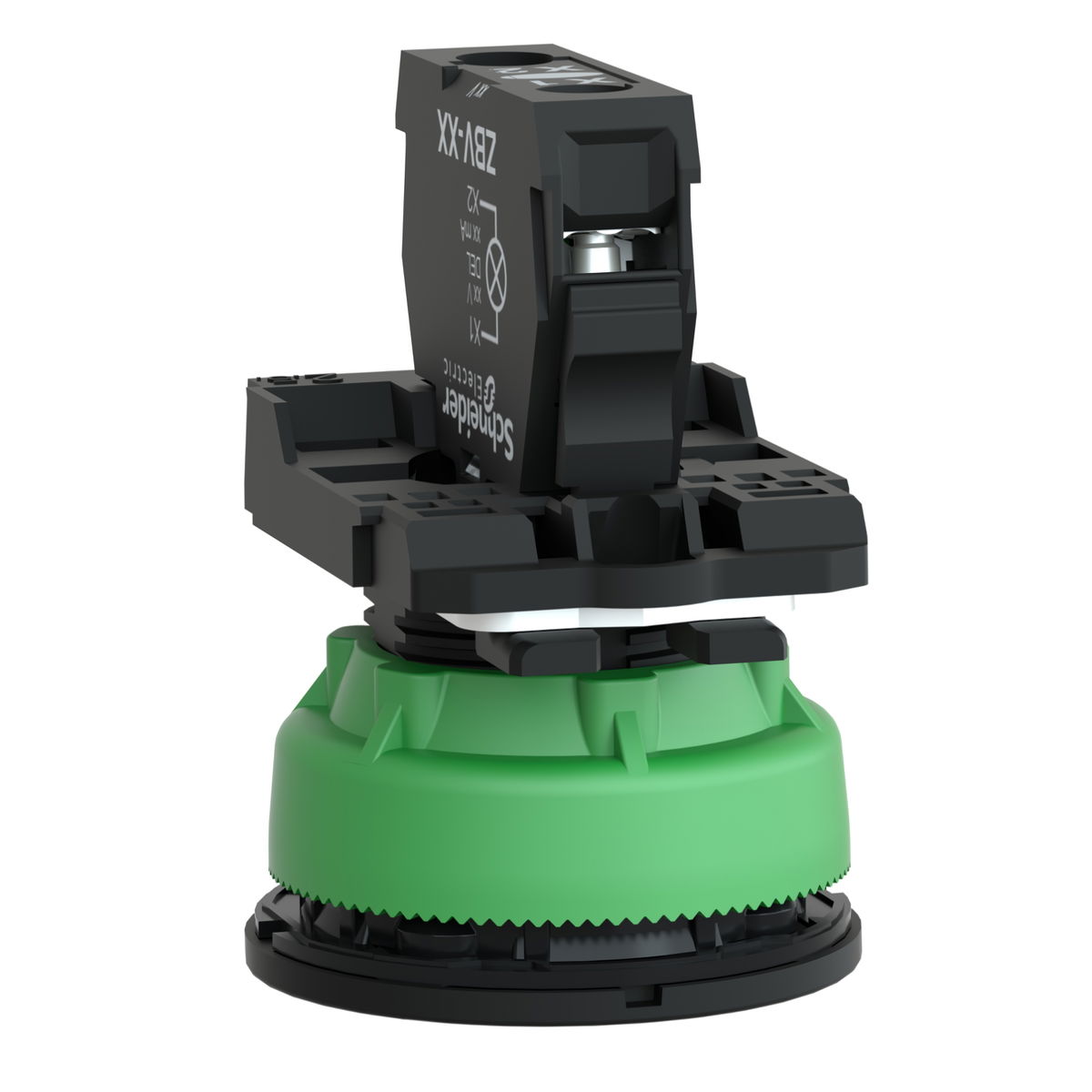

Pilot light, Harmony XB5, grey plastic, white flush mounted, 30mm, universal LED, 230...240V AC – Image 6 of 13

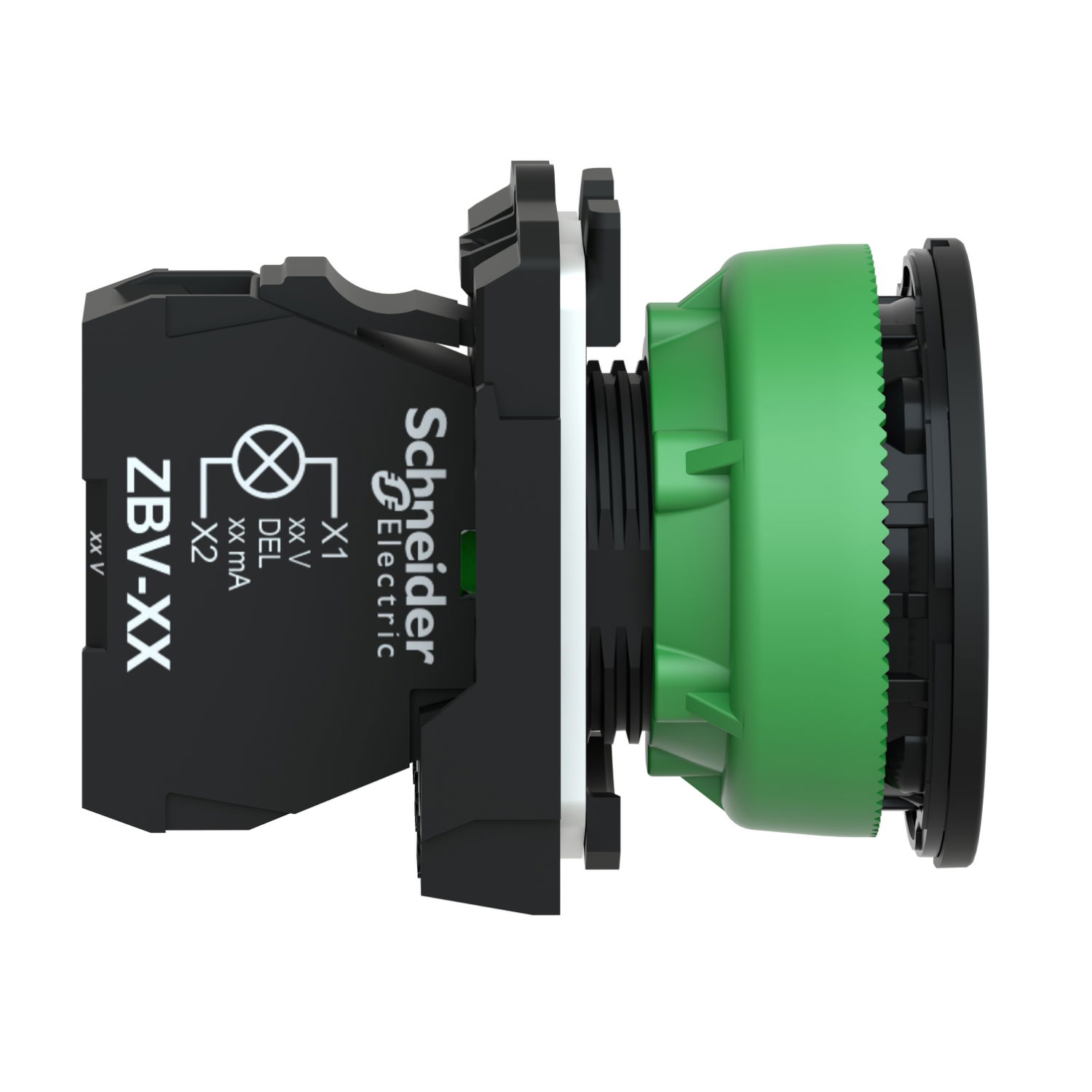

Pilot light, Harmony XB5, grey plastic, white flush mounted, 30mm, universal LED, 230...240V AC – Image 7 of 13

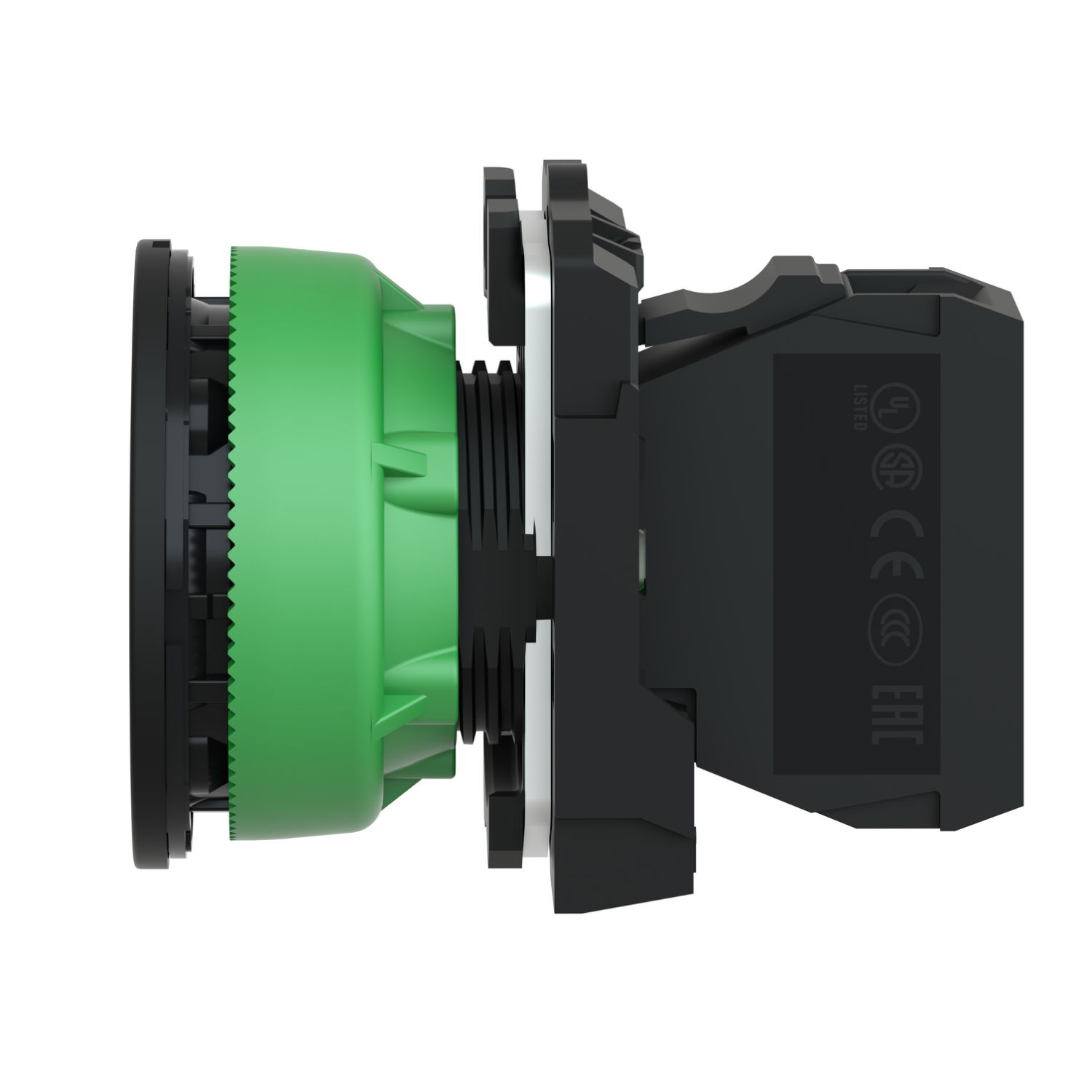

Pilot light, Harmony XB5, grey plastic, white flush mounted, 30mm, universal LED, 230...240V AC – Image 8 of 13

Pilot light, Harmony XB5, grey plastic, white flush mounted, 30mm, universal LED, 230...240V AC – Image 9 of 13

Pilot light, Harmony XB5, grey plastic, white flush mounted, 30mm, universal LED, 230...240V AC – Image 10 of 13

Pilot light, Harmony XB5, grey plastic, white flush mounted, 30mm, universal LED, 230...240V AC – Image 11 of 13

Pilot light, Harmony XB5, grey plastic, white flush mounted, 30mm, universal LED, 230...240V AC – Image 12 of 13

Pilot light, Harmony XB5, grey plastic, white flush mounted, 30mm, universal LED, 230...240V AC – Image 13 of 13

1 / 13

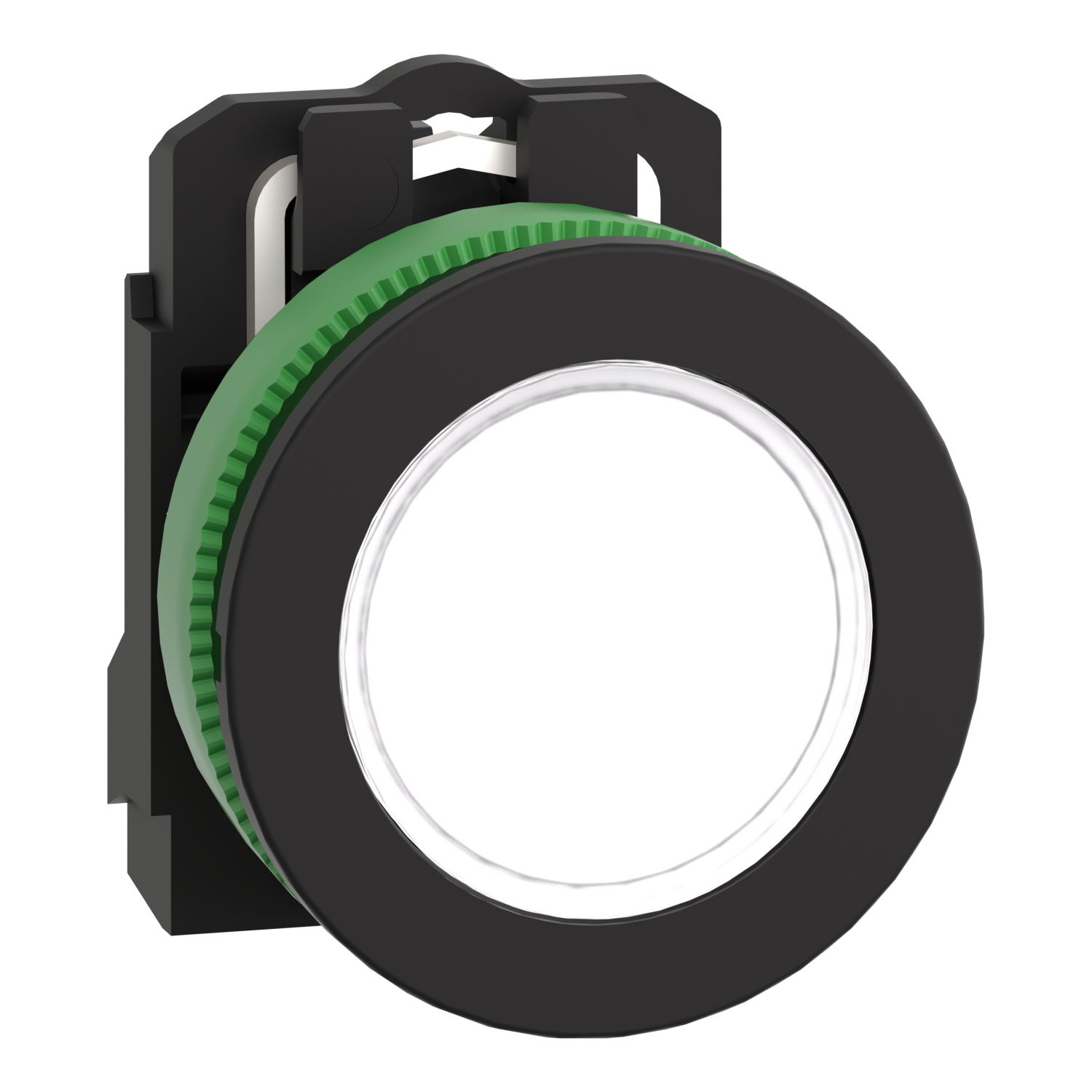

Pilot light, Harmony XB5, grey plastic, white flush mounted, 30mm, universal LED, 230...240V AC

Link copied

SKU
EAN
GTIN
MPN

Pilot light, Harmony XB5, grey plastic, white flush mounted, 30mm, universal LED, 230...240V AC by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £29.62 excl. VAT. Voltimum+ members earn 4 points per unit.

This flush mounted pilot light is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 230 V to 240 V AC. Customized marking option through web customization tool is available in Schneider Electric website. Improved ergonomics and aesthetics due to flush mount design. It has a plain lens and the source of light is a universal LED. The bright and long-lasting illumination makes it clearly distinguishable even at a disctance. The connection terminal is screw clamp. The shape of the head is round and white. The bezel and the fixing collar is plastic. The weight of this pilot light is 38 grams, height is 42 mm and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.

Loyalty points: 4

Price: £ 29.62 Excl. VAT

Specifications

Colour lens	White
Type of lens	Flat
Voltage type	AC/DC
Hole diameter	30.5 mm
Width opening	-
Height opening	-
With front ring	yes
Colour front ring	Black
With light source	yes
Material front ring	Plastic
Type of lamp socket	LED
Construction type lens	Round
Degree of protection (IP)	IP66
Number of indicator lights	1
Rated operating voltage Ue
Degree of protection (NEMA)	13
Type of electric connection	Screw connection

Documents

Declaration of Conformity (Sustainability)

XB5FVM1 REACh Regulation
