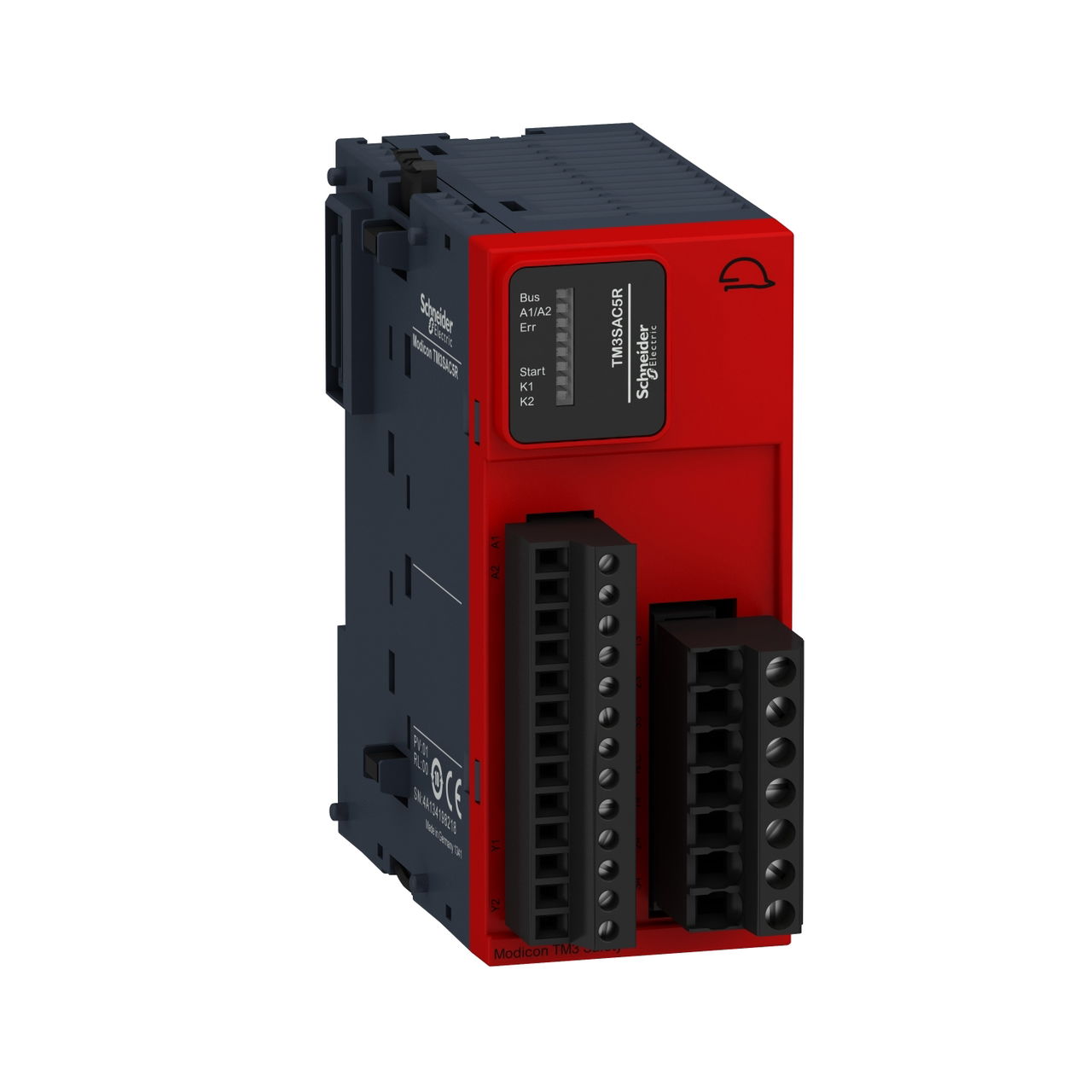

Modicon TM3 Safety module - 1 Function, Cat 3 PL d/SIL CL2 (screw) 24Vdc
This TM3 safety expansion module monitors emergency shutdown pushbuttons and limit switches to conform to PLd / Category 3. It meets the requirements of PL d/Category 3 conforming to EN/ISO 13849-1 and SILCL 2 conforming to EN/IEC 62061. It has a module locking latch, 2 TM3 bus connectors designed to provide continuity of the link between connected modules, a symmetrical rail locking clip, display block for the module channels and diagnostics. It completes your Modicon M221, M241 or M251 PLC configuration with a dedicated safety I/O, without the need to use a complete safety controller. It has removable terminals for easier and better control wires tightening, thus improving installation reliability.
Product identifiers
SKU: TM3SAC5R
EAN: 3606485392974
GTIN: 3606485392974
MPN: TM3SAC5R
Loyalty points:
75
Price range: £ 160.86 - £ 203.09 Excl. VAT
Categories
Features
|
Depth
|
73 mm
|
|
Model
|
Other
|
|
Width
|
43.7 mm
|
|
Height
|
94 mm
|
|
EFDE0031
|
TRUE
|
|
Release-delay
|
|
|
With start input
|
FALSE
|
|
Control voltage 1
|
|
|
Control voltage 2
|
|
|
Evaluation inputs
|
Other
|
|
Power consumption
|
1.1 W
|
|
Supply voltage DC
|
|
|
Operating voltage DC
|
|
|
Rated switch current
|
1.1 A
|
|
With muting function
|
FALSE
|
|
With feedback circuit
|
FALSE
|
|
With detachable clamps
|
FALSE
|
|
Supply voltage AC 50 Hz
|
|
|
Supply voltage AC 60 Hz
|
|
|
With approval for BG BIA
|
FALSE
|
|
Type of control voltage 1
|
DC
|
|
Type of control voltage 2
|
DC
|
|
Operating voltage AC 50 Hz
|
|
|
Operating voltage AC 60 Hz
|
|
|
SIL according to IEC 61508
|
2
|
|
Suitable for rail mounting
|
TRUE
|
|
Type of electric connection
|
Screw connection
|
|
Voltage type (supply voltage)
|
DC
|
|
With approval according to UL
|
TRUE
|
|
Voltage type (operating voltage)
|
DC
|
|
Suitable for monitoring of valves
|
FALSE
|
|
Stop category according to IEC 60204
|
1
|
|
Type of safety according to IEC 61496-1
|
None
|
|
Suitable for monitoring of tactile sensors
|
FALSE
|
|
Suitable for monitoring of magnetic switches
|
FALSE
|
|
Suitable for monitoring of position switches
|
FALSE
|
|
Performance level according to EN ISO 13849-1
|
Level d
|
|
Suitable for monitoring of proximity switches
|
FALSE
|
|
Suitable for monitoring of emergency-stop circuits
|
TRUE
|
|
Number of outputs, safety related, delayed, with contact
|
-
|
|
Number of outputs, safety related, delayed, semiconductors
|
-
|
|
Number of outputs, safety related, undelayed, with contact
|
3
|
|
Number of outputs, safety related, undelayed, semiconductors
|
-
|
|
Number of outputs, signalling function, delayed, with contact
|
-
|
|
Suitable for monitoring of optoelectronic protection equipment
|
FALSE
|
|
Number of outputs, signalling function, delayed, semiconductors
|
-
|
|
Number of outputs, signalling function, undelayed, with contact
|
-
|
|
Number of outputs, signalling function, undelayed, semiconductors
|
-
|
