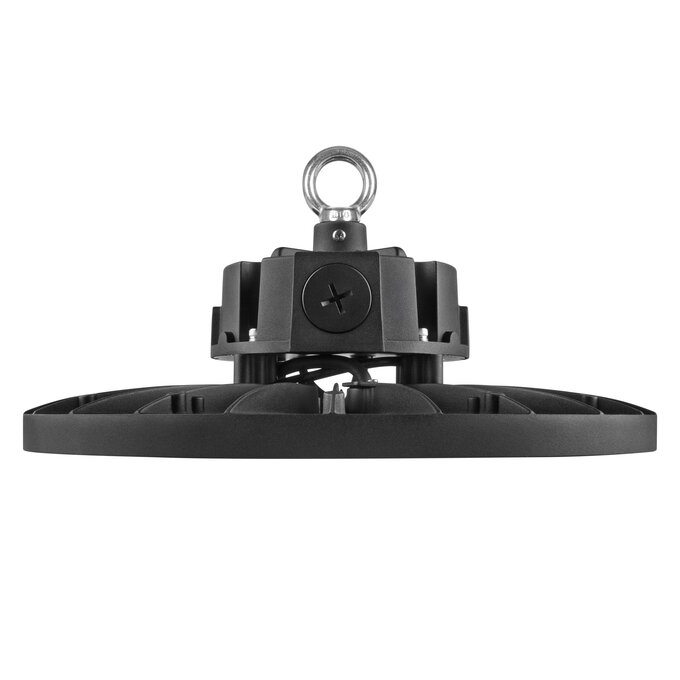

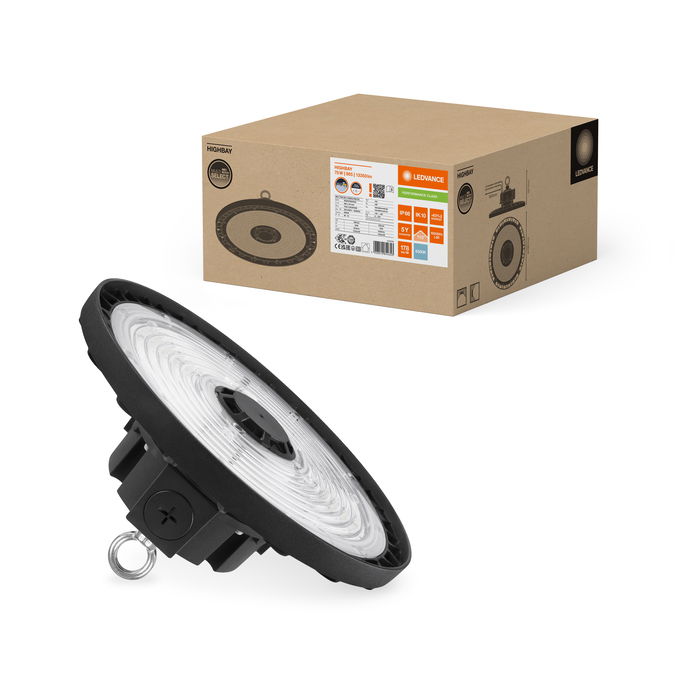

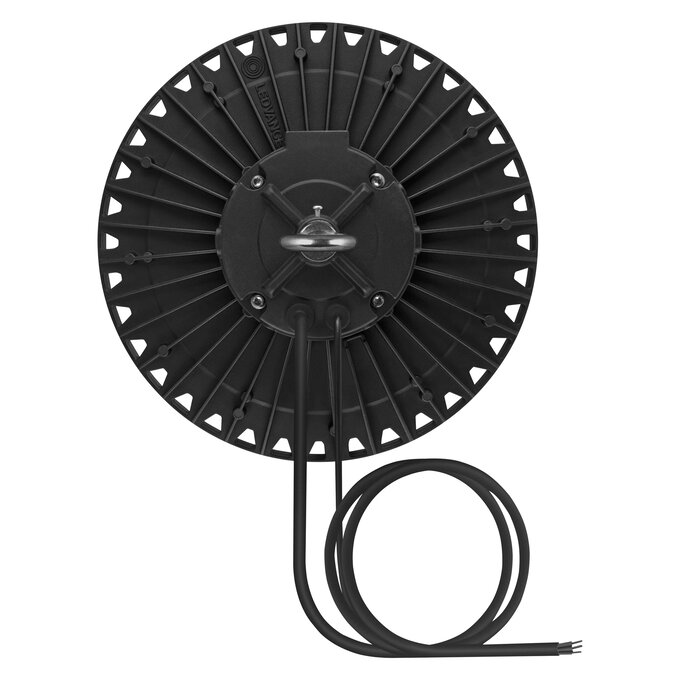

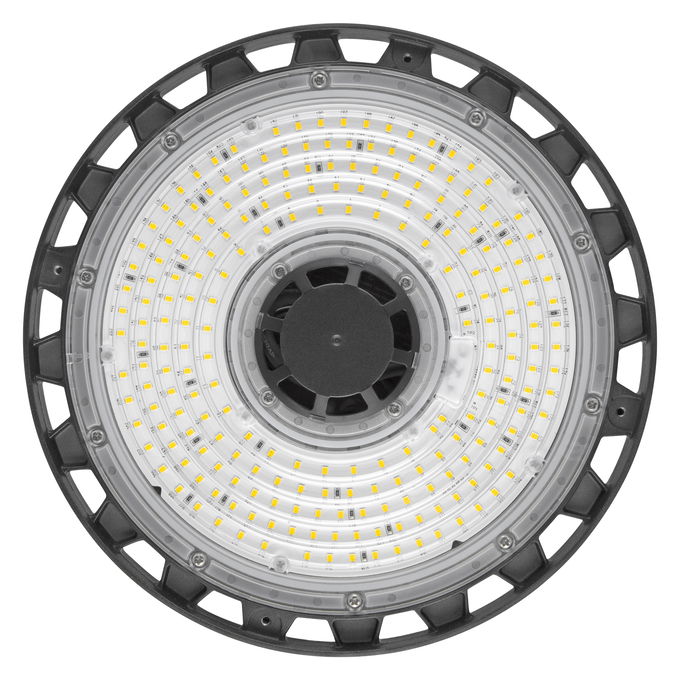

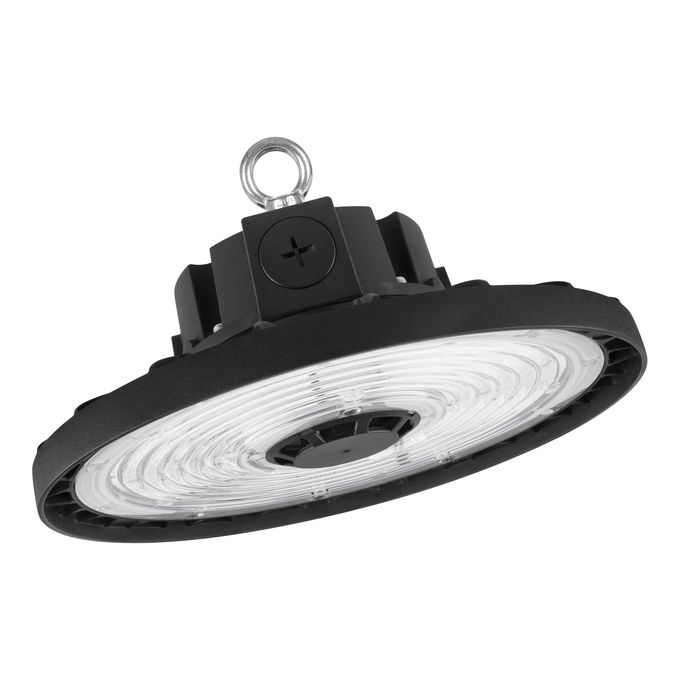

HB P 75W 865 110DEG IP66 PS
1 / 5
HB P 75W 865 110DEG IP66 PS
HB P 75W 865 110DEG IP66 PS by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £538.71 excl. VAT.
Product benefits
- Highly versatile due to selectable lumen steps (Multi Lumen) on the housing
- Improved UGR compared to previous generations, down to UGR ≤ 19 (<150W, 70°) in combination with reflector
- High luminous efficacy
- Energy savings of up to 70 % compared to conventional high bay luminaires
- Optimized weight and size due to compact design
Areas of application
- Replacement for high bay luminaires with mercury vapor or metal halide lamps
- Warehouses, logistic halls
- Industry
- High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
- Multi Lumen function: lumen steps selectable
- Different luminous flux and beam angle for mounting heights of ~ 6 m to 18 m in 4000 K or 6500 K
- 0-10 V dimmable
- Lifetime (L80/B10): up to 100,000 h (at 35 °C)
Equipment / Accessories
- Mounting hook included
- Mounting brackets, reflectors and refractors available as separate accessory
References / Links
- For Guarantee see www.ledvance.com/guarantee
Product identifiers
SKU: 4058075844353
EAN: 4058075844353
GTIN: 4058075844353
MPN: 4058075844353
Price: £ 538.71 Excl. VAT
Categories
ETIM group
Specifications
Lifespan
| Lifespan L70/B50 at 25 °C | 120000 h 1) |
| Lifespan L80/B10 at 25 °C | 100000 h 1) |
| Lifespan L90/B10 at 25 °C | 49000 h |
| Number of switching cycles | 200000 |
Control gear
| Output current | 305 mA |
| ECG - Output ripple current | < 5 % |
Electrical data
| Nominal wattage | 75 W / 53 W |
| Nominal voltage | 220…240 V |
