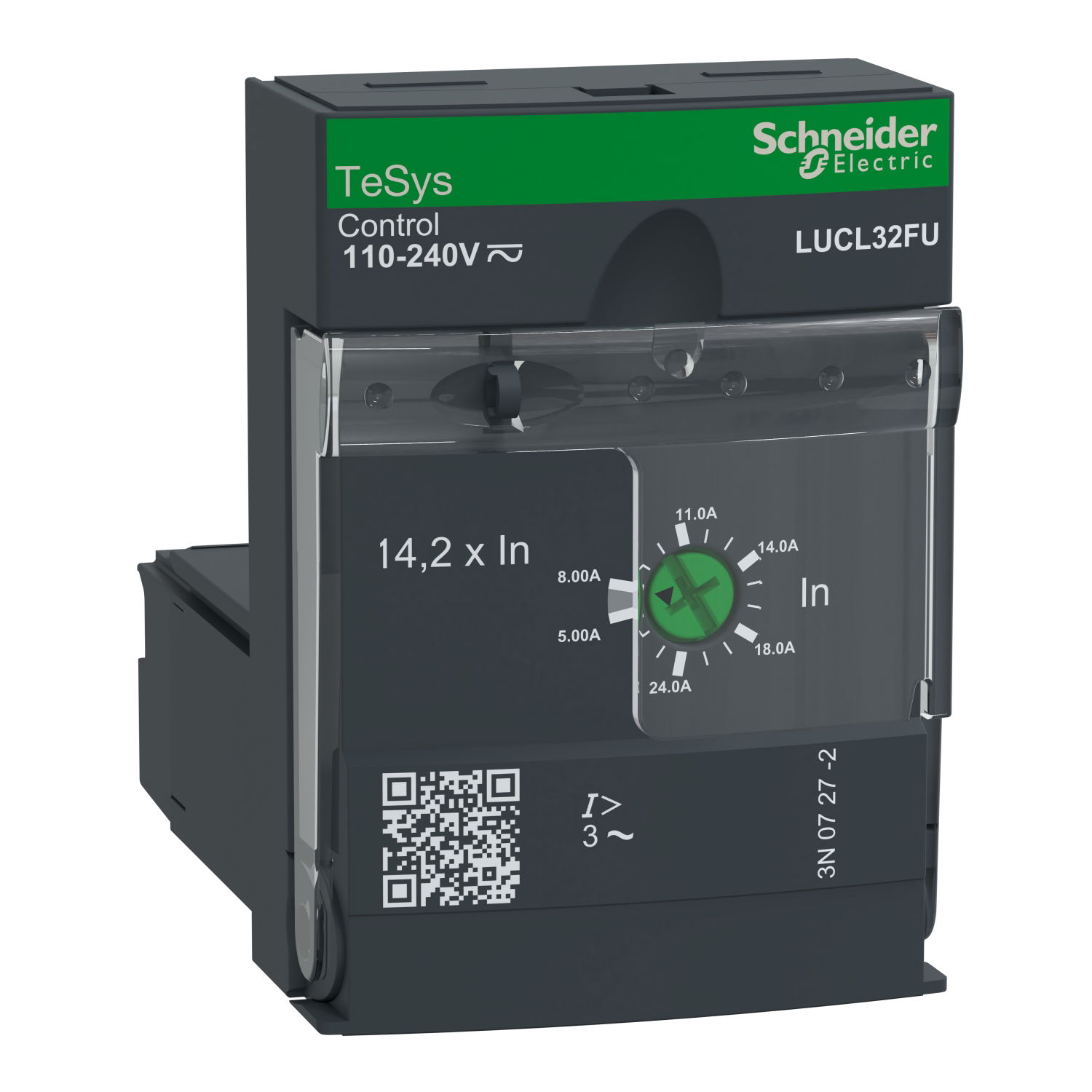

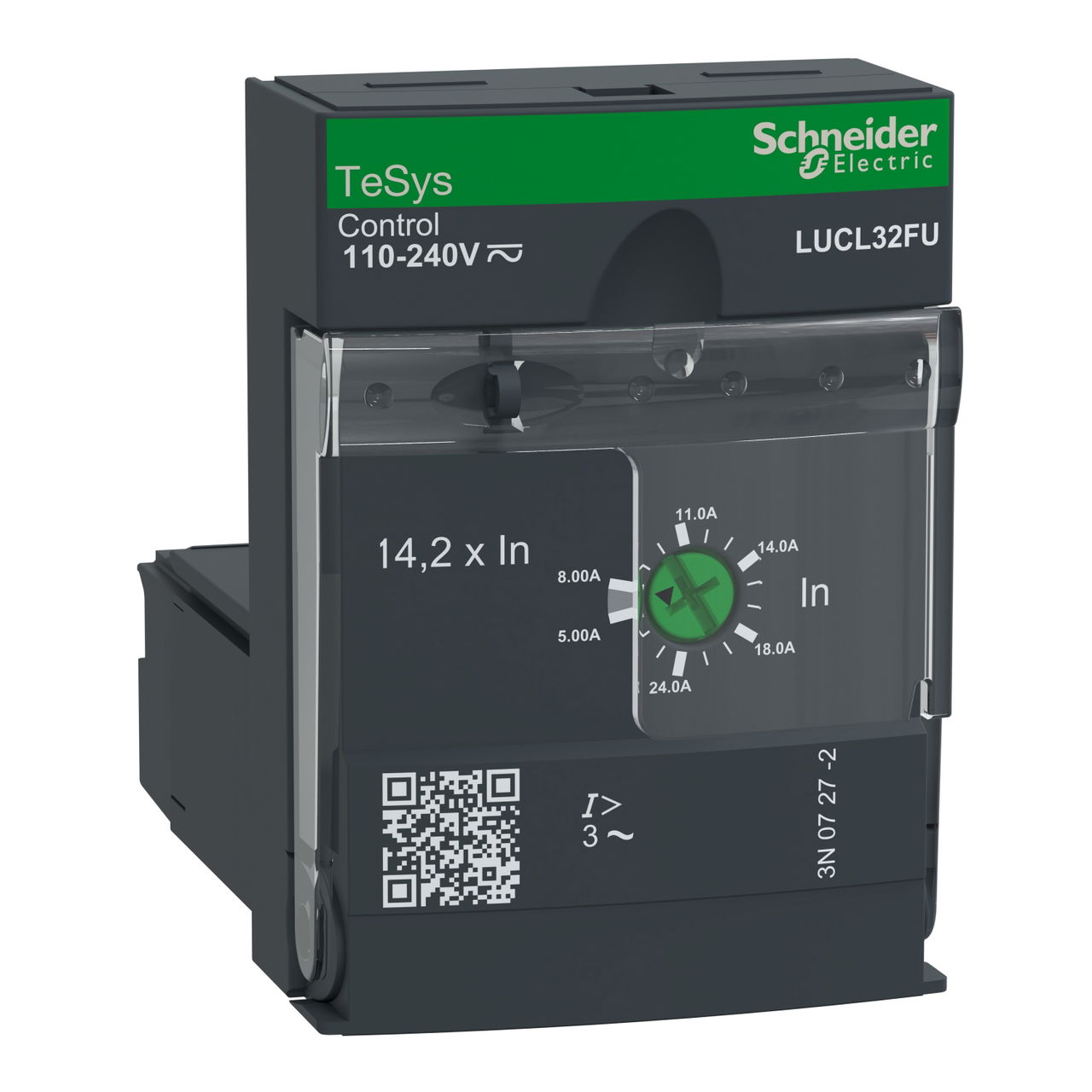

Standard control unit, TeSys U, 8-32A, 3P motors, magnetic protection, coil 110-240V AC/DC
TeSys U magnetic control unit to be inserted in power bases LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. It provides short circuit protection to motors with a rated current In 8-32A (In adjustable by dial), overcurrent protection level at 14.2 x In. To be used when a power base is connected to a motor drive or a soft starter providing overload protection. To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),
Product identifiers
SKU: LUCL32FU
EAN: 3389119408097
GTIN: 3389119408097
MPN: LUCL32FU
Loyalty points:
67
Price range: £ 140.38 - £ 194.01 Excl. VAT
ETIM Group
Specifications
| Depth | 60 mm |
| Width | 45 mm |
| Height | 66 mm |
| Number of poles | 3 |
| Supply voltage DC | |
| Operating voltage DC | |
| Rated switch current | - |
| Supply voltage AC 50 Hz |
