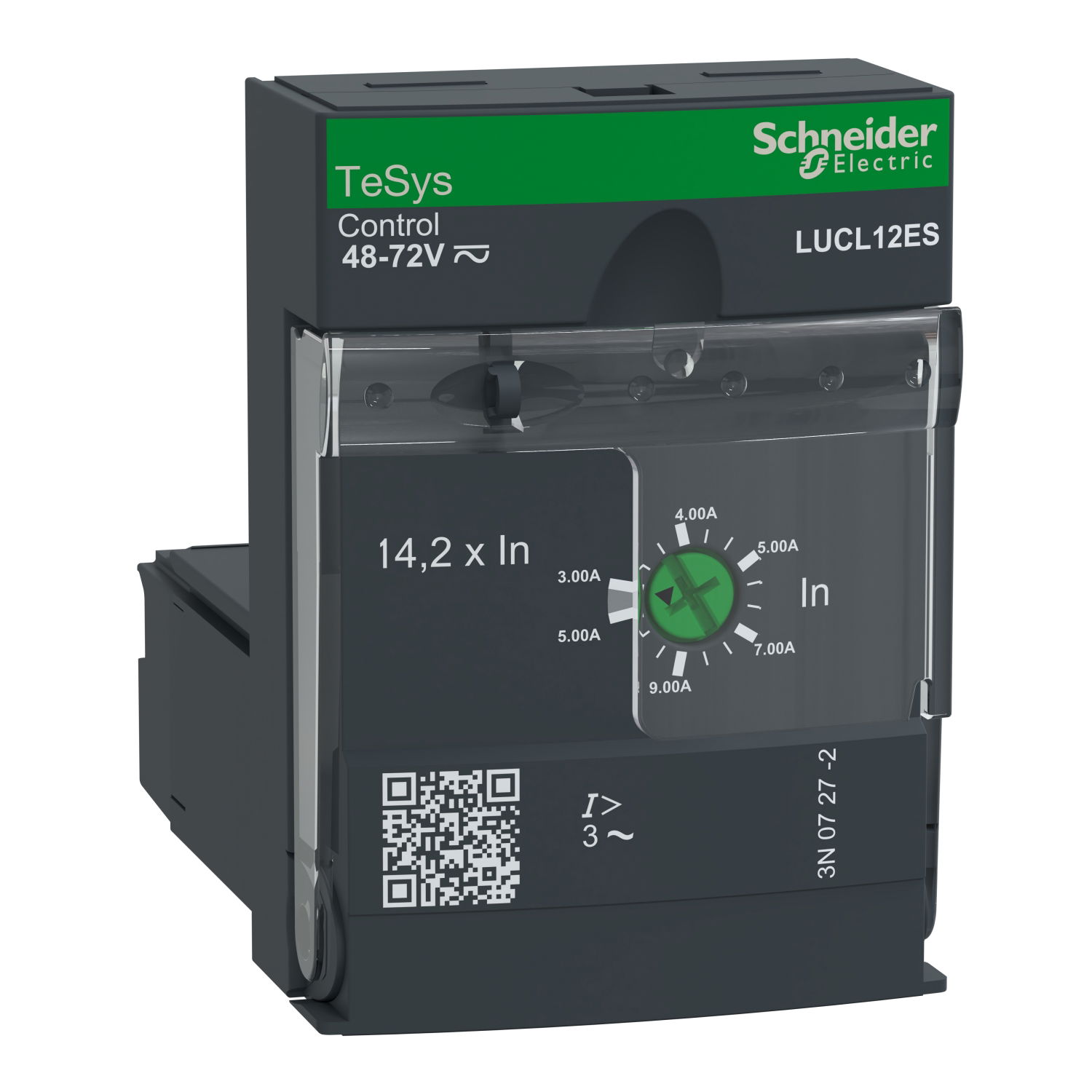

Standard control unit, TeSys U, 3-12A, 3P motors, magnetic protection, coil 48-72V AC/DC

Standard control unit, TeSys U, 3-12A, 3P motors, magnetic protection, coil 48-72V AC/DC by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £121.12 to £122.33 excl. VAT. Voltimum+ members earn 14 points per unit.

TeSys U magnetic control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. It provides short circuit protection to motors with a rated current In 3-12A (In adjustable by dial), overcurrent protection level at 14.2 x In. To be used when a power base is connected to a motor drive or a soft starter providing overload protection. To be used with a 48V AC / 48-72V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),

Product identifiers

SKU: LUCL12ES
EAN: 3389119407960
GTIN: 3389119407960
MPN: LUCL12ES

Voltimum+ Loyalty Programme Loyalty points: 14

Price range: £ 121.12 - £ 122.33 Excl. VAT

Categories

Contactors & Motor Starters Switchgear & Circuit Protection

ETIM group

Low-voltage industrial components

Specifications

Depth 60 mm
Width 45 mm
Height 66 mm
Number of poles 3
Supply voltage DC
Operating voltage DC
Rated switch current -
Supply voltage AC 50 Hz
Type of motor protection Other
Operating voltage AC 60 Hz
Voltage type (supply voltage) AC/DC
Short-circuit release function Undelayed
Voltage type (operating voltage) AC
Current setting delayed short-circuit release
Number of auxiliary contacts as change-over contact -
Number of auxiliary contacts as normally closed contact -
