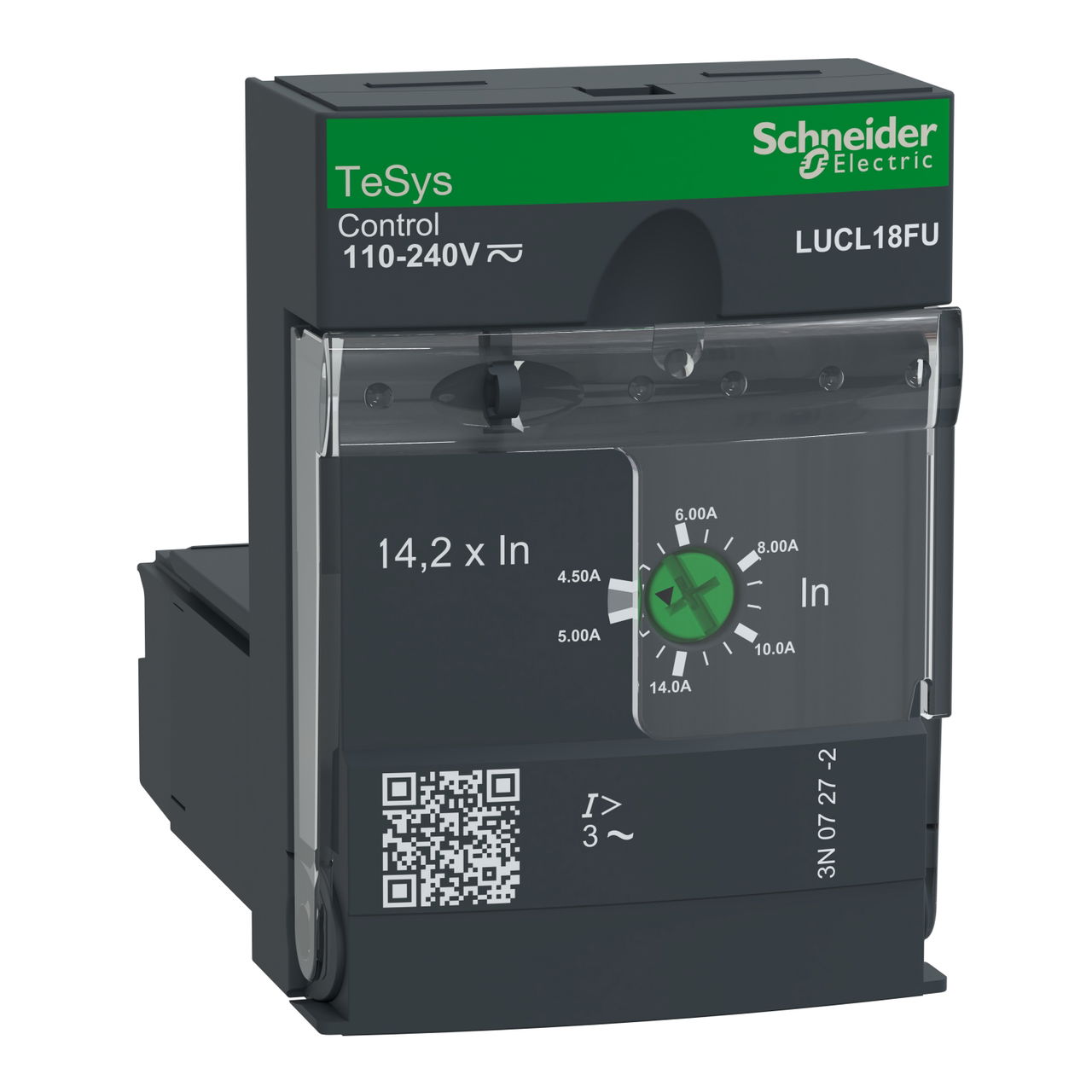

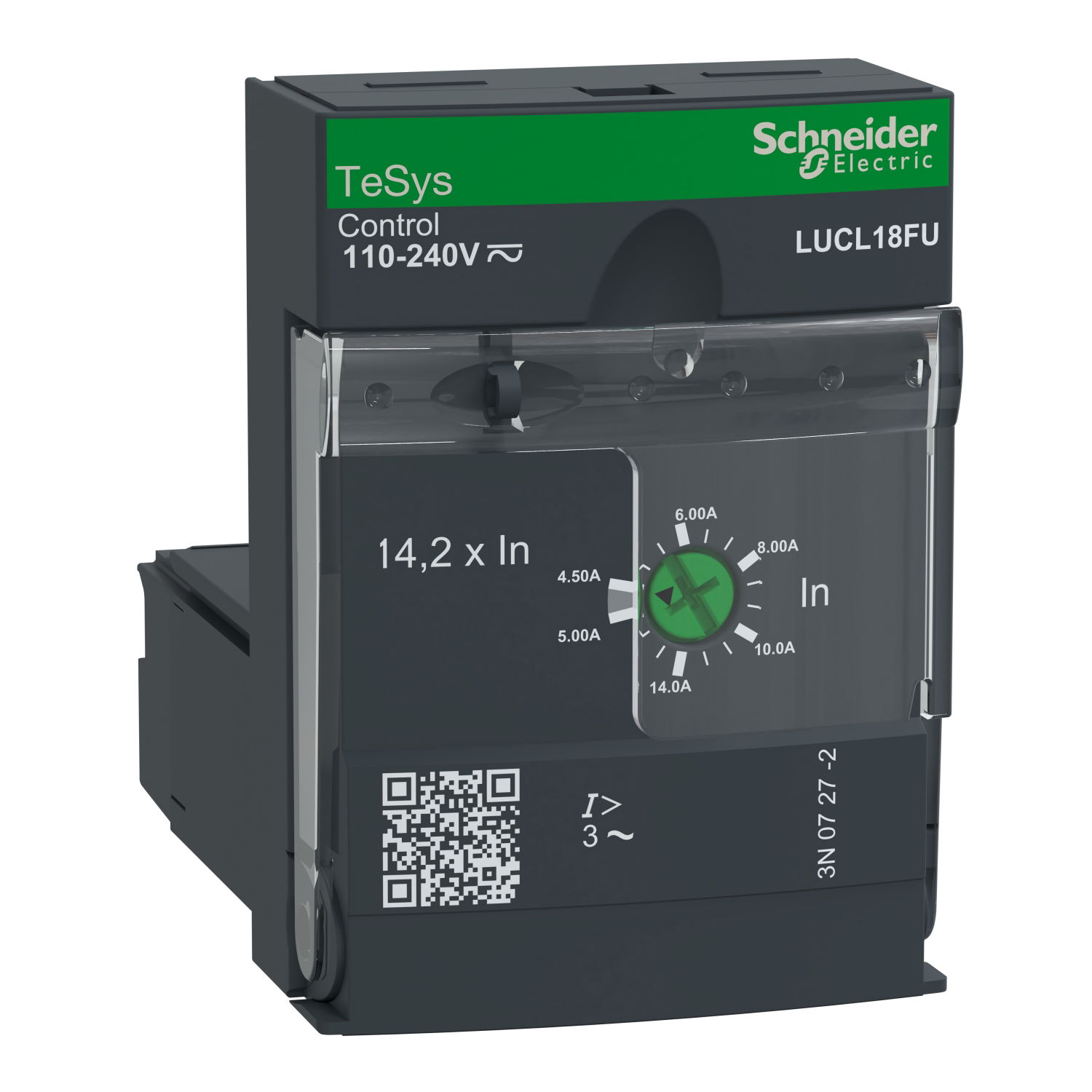

Standard control unit, TeSys U, 4.5-18A, 3P motors, magnetic protection, coil 110-240V AC/DC

Standard control unit, TeSys U, 4.5-18A, 3P motors, magnetic protection, coil 110-240V AC/DC by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £135.03 to £148.45 excl. VAT. Voltimum+ members earn 18 points per unit.

TeSys U magnetic control unit to be inserted in power bases LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 7.5kW@400V. It provides short circuit protection to motors with a rated current In 4.5-18A (In adjustable by dial), overcurrent protection level at 14.2 x In. To be used when a power base is connected to a motor drive or a soft starter providing overload protection. To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),

Product identifiers

SKU: LUCL18FU
EAN: 3389119408011
GTIN: 3389119408011
MPN: LUCL18FU

Voltimum+ Loyalty Programme Loyalty points: 18

Price range: £ 135.03 - £ 148.45 Excl. VAT

Categories

Contactors & Motor Starters Switchgear & Circuit Protection

ETIM group

Low-voltage industrial components

Specifications

Depth 60 mm
Width 45 mm
Height 66 mm
Number of poles 3
Supply voltage DC
Operating voltage DC
Rated switch current -
Supply voltage AC 50 Hz
Type of motor protection Other
Operating voltage AC 60 Hz
Voltage type (supply voltage) AC/DC
Short-circuit release function Undelayed
Voltage type (operating voltage) AC
Current setting delayed short-circuit release
Number of auxiliary contacts as change-over contact -
Number of auxiliary contacts as normally closed contact -

Documents

Declaration of Conformity (Sustainability)

LUCL18FU REACh Regulation

Open

Instruction sheet

TeSys U - LUCL magnetic control unit - Instruction sheet

Open

Product data sheet

Open

Catalog

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

Open

Declaration of Conformity (Sustainability)

LUCL18FU EU RoHS Directive

Open

Declaration of conformity

PP_EUdec__EU1007946-1-TeSysU-LUB

Open

Environmental Disclosure

TeSys Ultra Non reversing power base + Control unit - Product Environmental Profile

Open

Circularity Profile

TeSys Ultra Non reversing power base + Control unit - End of Life Instructions

Open
