Indicator bank with buzzer + 3 illuminated units - Ø 45 mm - 24 V AC/DC

Link copied

SKU
EAN
GTIN
MPN

Indicator bank with buzzer + 3 illuminated units - Ø 45 mm - 24 V AC/DC by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £166.22 excl. VAT. Voltimum+ members earn 23 points per unit.

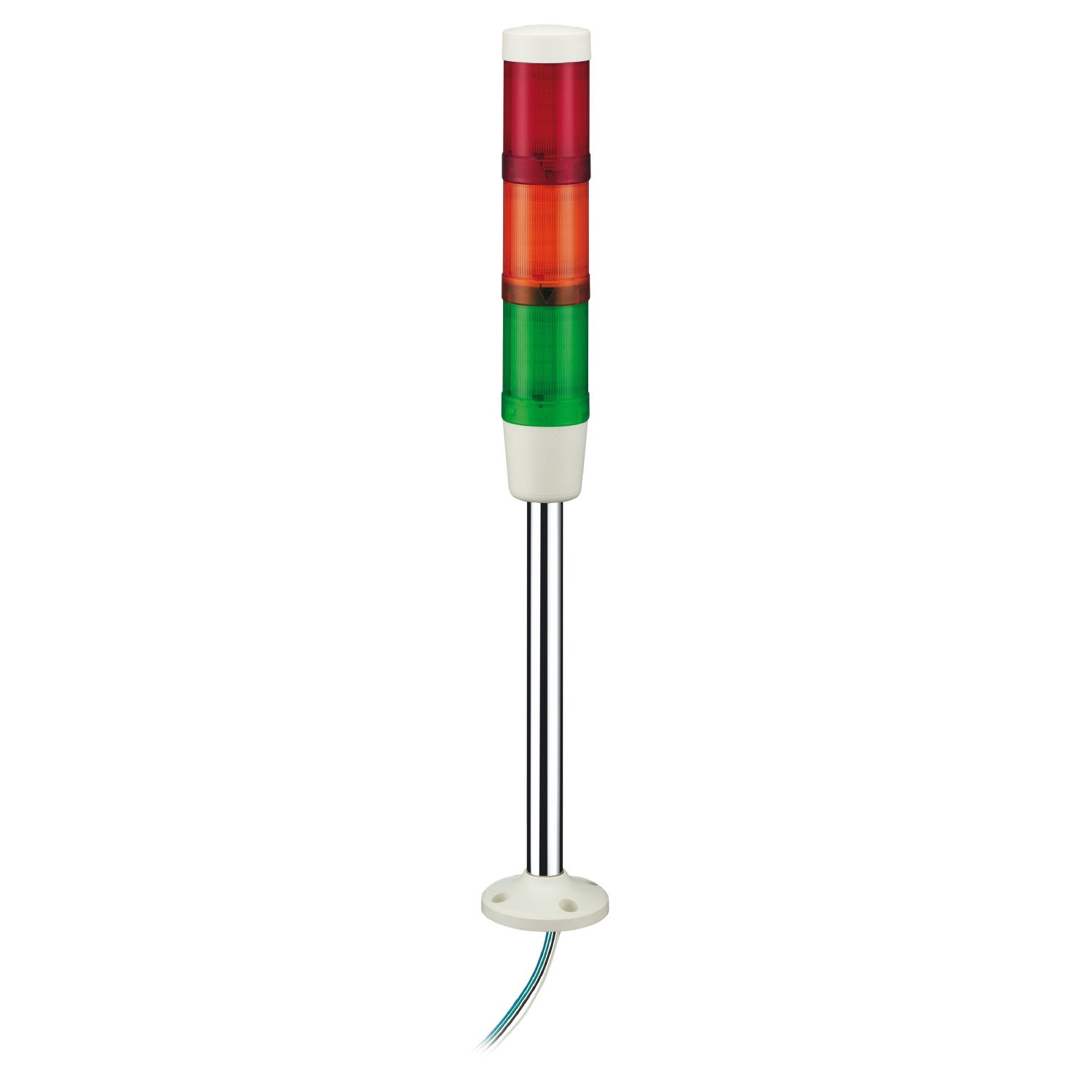

This modular tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVM diameter 45mm. It is supplied pre-assembled and pre-cabled with 3 illuminated units (red, orange, green), a buzzer integrated in a base unit mounted on a 250mm aluminium support tube with plastic fixing plate for mounting on horizontal surface (IP 54). Supply voltage is 24 V AC/DC. It is designed for long distance indication of the operating states of a machine, either visually by means of illuminated signaling units visible through 360° (super bright LED for steady light only) or audibly by means of a buzzer.

Loyalty points: 23

Price: £ 166.22 Excl. VAT

Specifications

Depth	-
Width	-
Height	-
Loudness	80 dB
Colour light 1	Red
Colour light 2	Orange
Colour light 3	Green
Colour light 4	-
Colour light 5	-
Outer diameter	45 mm
Function acoustic	yes
Operating voltage DC
Function flashing light	no
Function revolving light	no
Degree of protection (IP)	IP54
Function continuous light	yes
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Degree of protection (NEMA)	-
Number of signal tower elements	3
Voltage type (operating voltage)	AC/DC

Documents

Instruction sheet

XVM B/M/G Pre-assembled and pre-cabled indicator banks, Instruction Sheet
