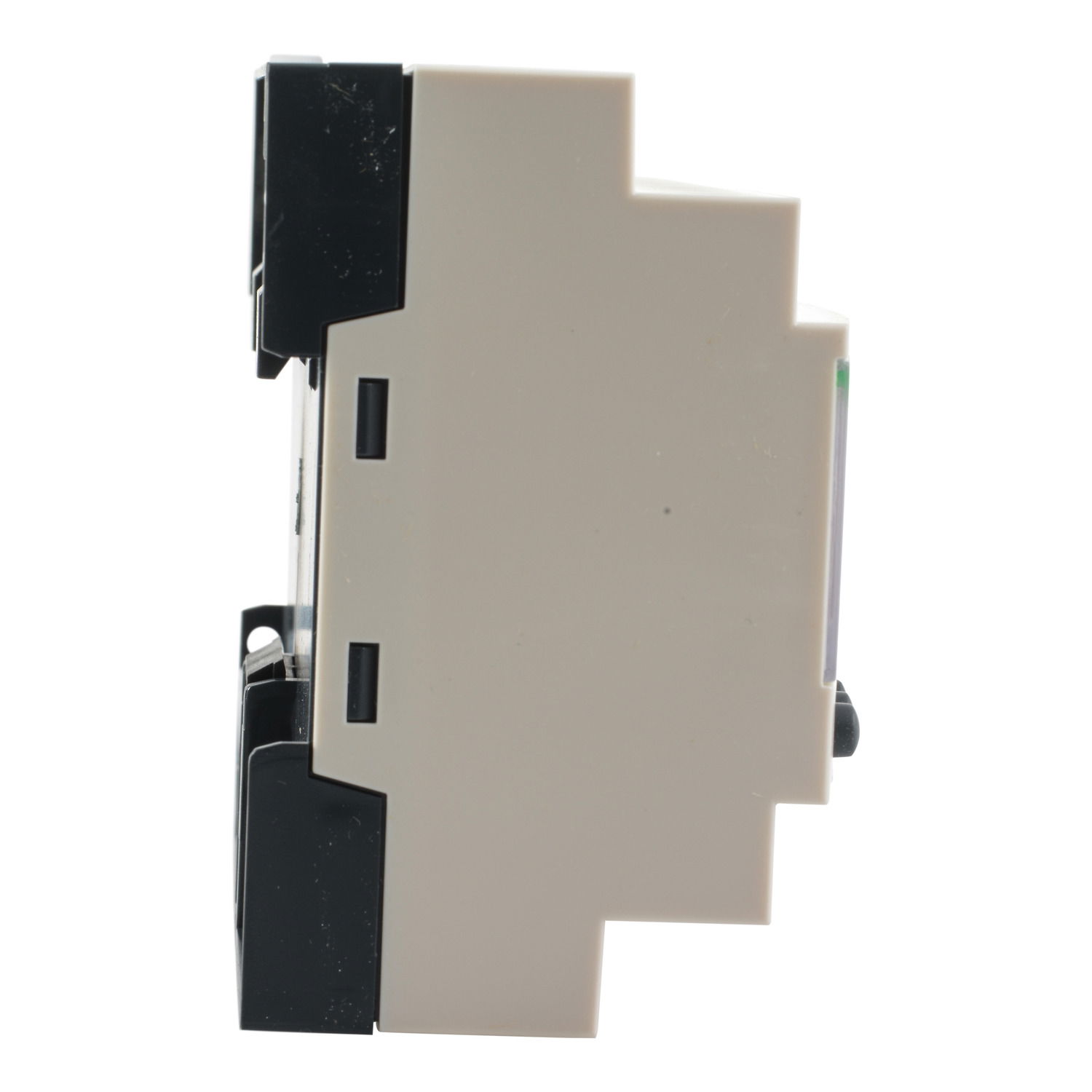

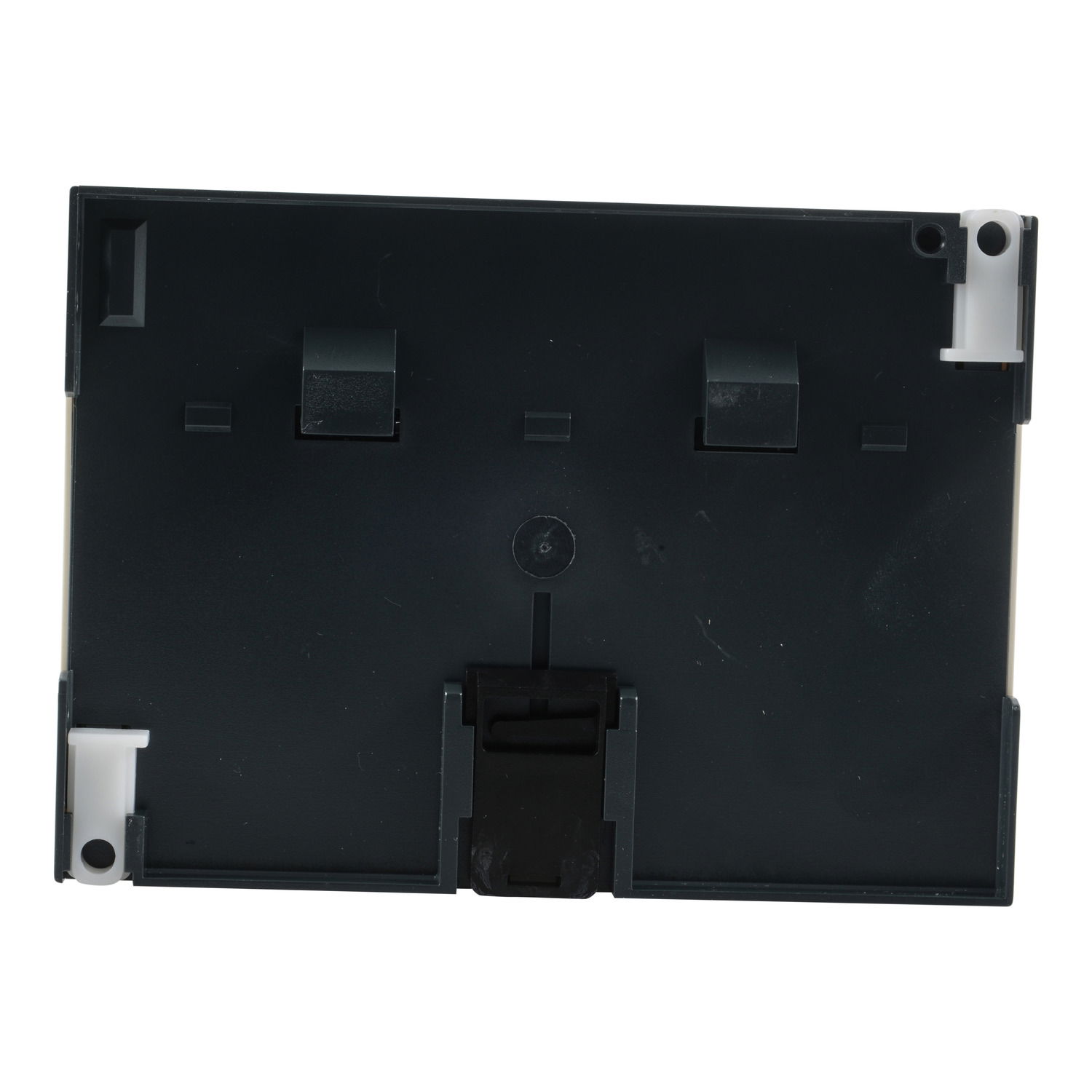

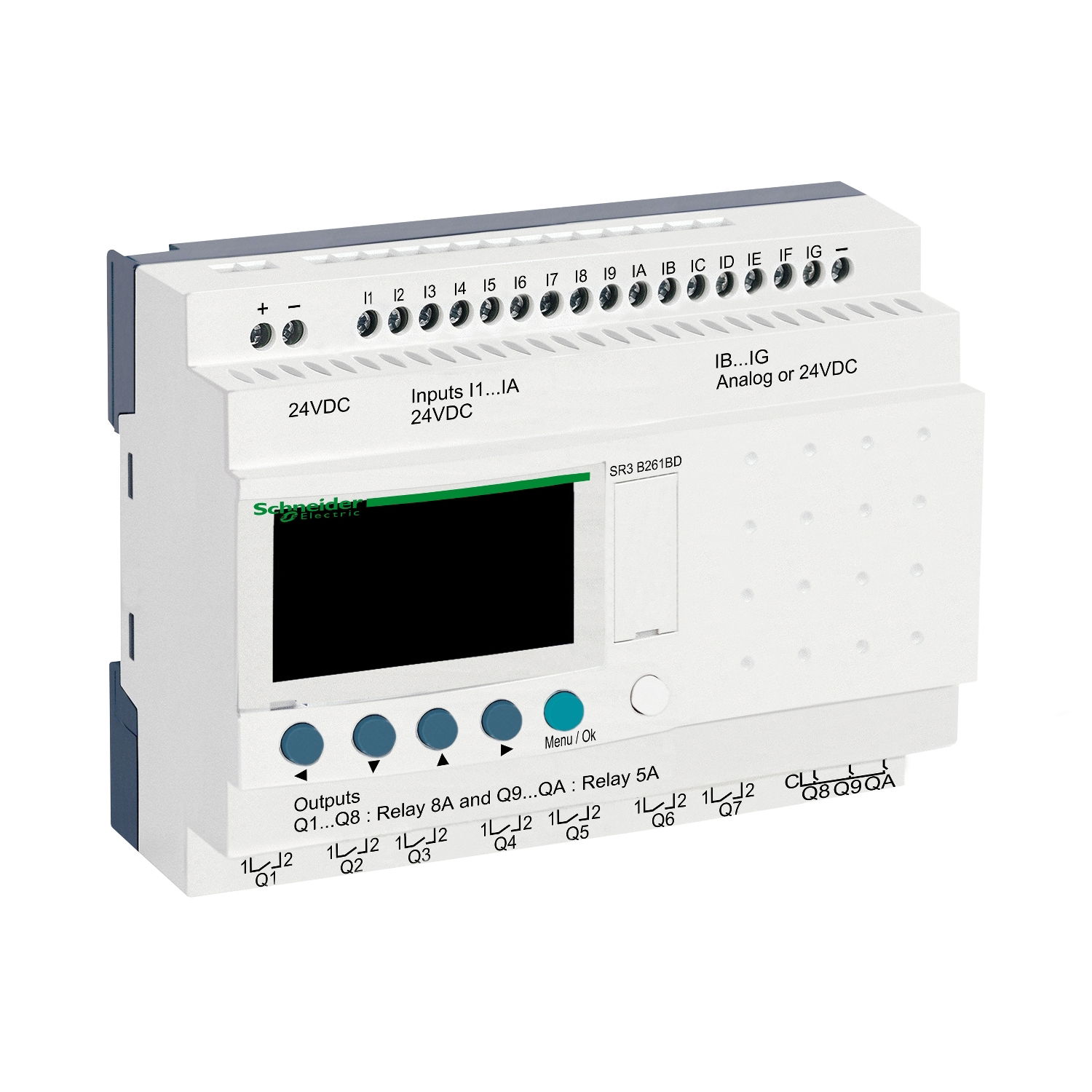

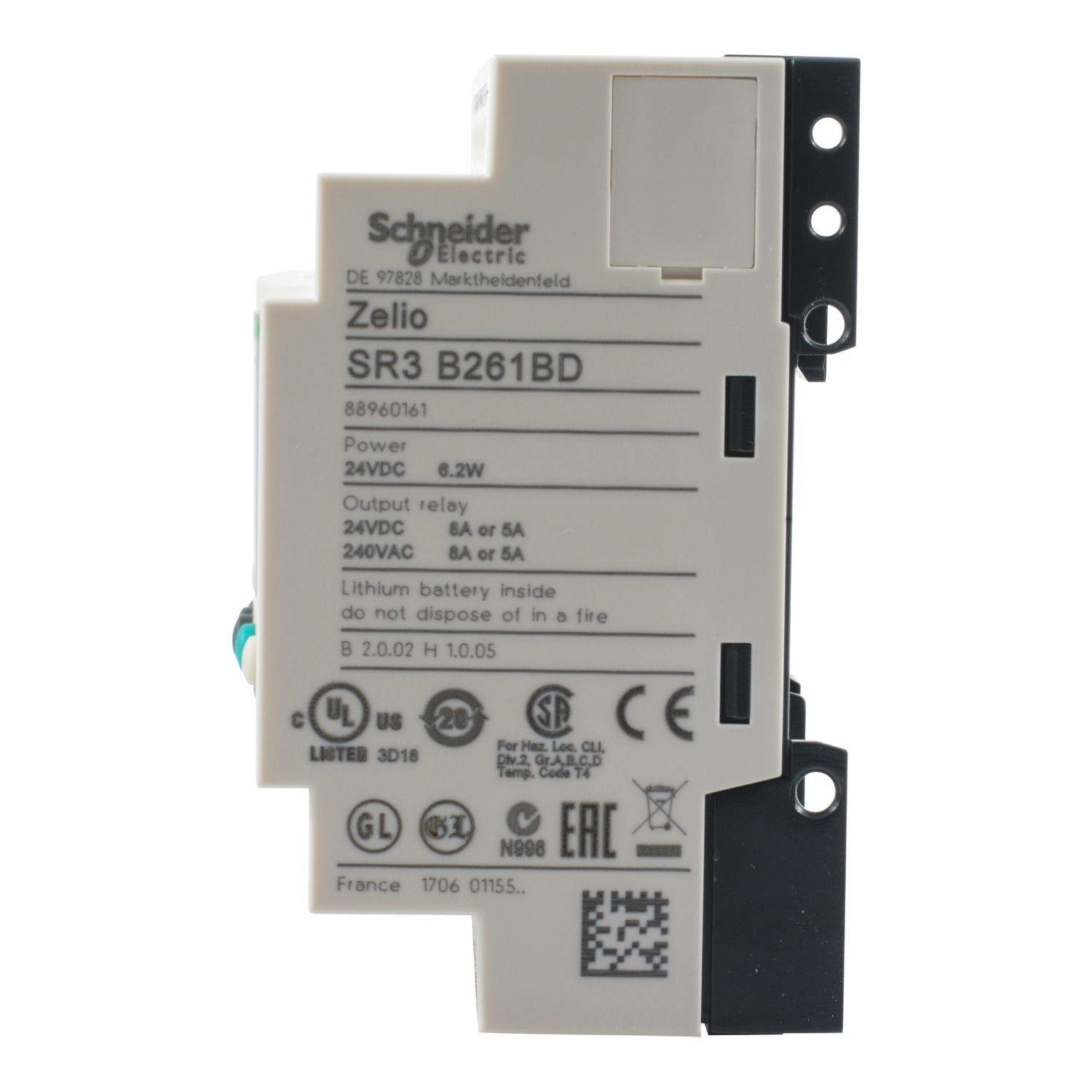

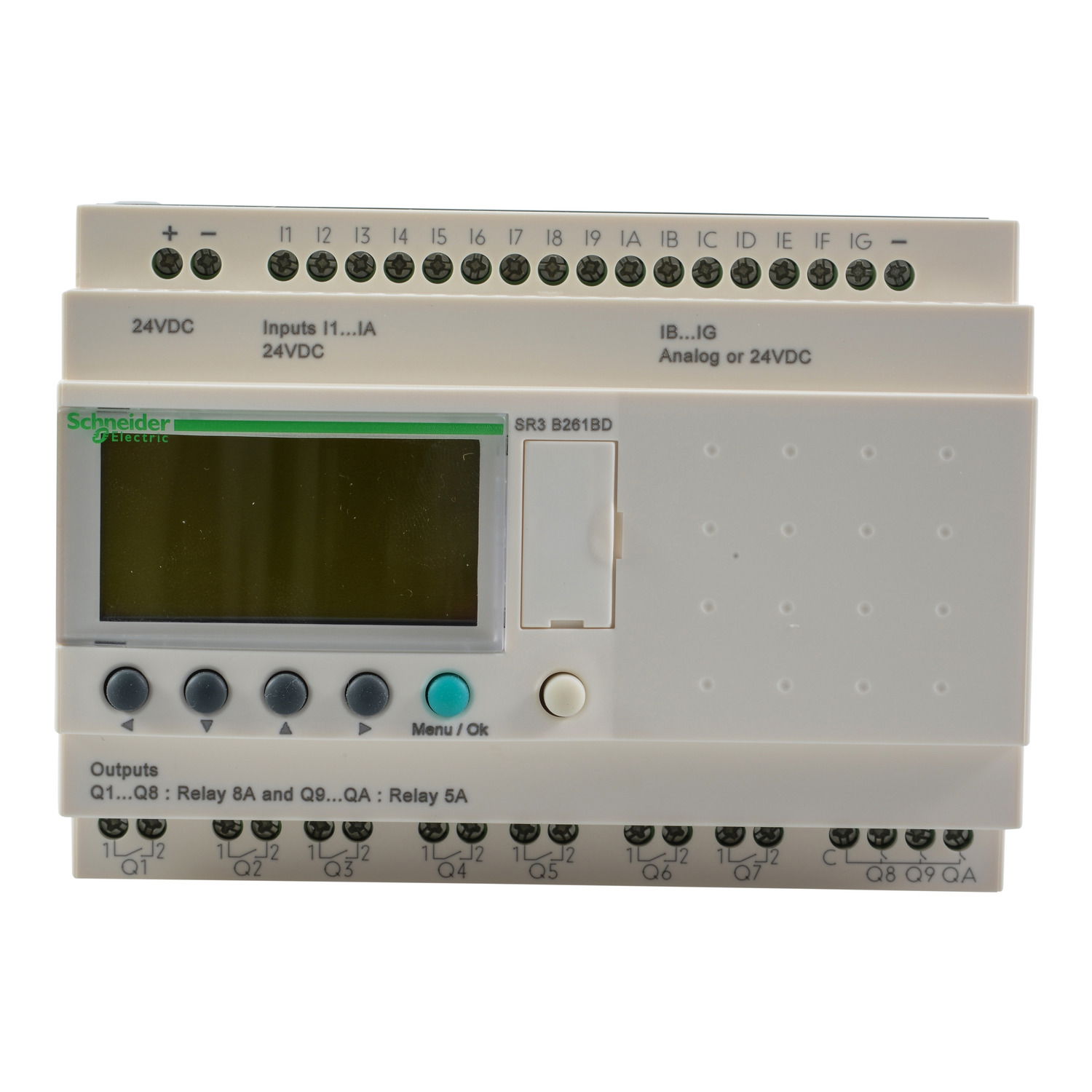

Modular smart relay Zelio Logic - 26 I O - 24 V DC - clock - display
This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 24V direct current. It has 26 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.
Product identifiers
SKU: SR3B261BD
EAN: 3389110549980
GTIN: 3389110549980
MPN: SR3B261BD
Loyalty points: 113
Price range: £ 224.10 - £ 286.51 Excl. VAT
Categories
Features
|
Depth
|
59.5 mm
|
|
Width
|
124.6 mm
|
|
Height
|
90 mm
|
|
Expandable
|
TRUE
|
|
Redundancy
|
FALSE
|
|
Basic device
|
TRUE
|
|
With display
|
TRUE
|
|
IO link master
|
FALSE
|
|
Expansion device
|
FALSE
|
|
Power consumption
|
6 W
|
|
Supply voltage DC
|
|
|
Switching current
|
8 A
|
|
With relay output
|
TRUE
|
|
Radio standard GSM
|
FALSE
|
|
Radio standard GPRS
|
FALSE
|
|
Radio standard UMTS
|
FALSE
|
|
Rack-assembly possible
|
FALSE
|
|
With optical interface
|
FALSE
|
|
With time switch clock
|
TRUE
|
|
Front built-in possible
|
TRUE
|
|
Supply voltage AC 50 Hz
|
|
|
Supply voltage AC 60 Hz
|
|
|
Number of digital inputs
|
16
|
|
Radio standard Bluetooth
|
FALSE
|
|
Degree of protection (IP)
|
IP20
|
|
Number of analogue inputs
|
6
|
|
Number of digital outputs
|
10
|
|
Number of analogue outputs
|
0
|
|
Radio standard WLAN 802.11
|
FALSE
|
|
SIL according to IEC 61508
|
None
|
|
Suitable for rail mounting
|
TRUE
|
|
Number of HW-interfaces USB
|
0
|
|
Supporting protocol for ASI
|
FALSE
|
|
Supporting protocol for CAN
|
FALSE
|
|
Supporting protocol for KNX
|
FALSE
|
|
Supporting protocol for LON
|
FALSE
|
|
Number of HW-interfaces other
|
1
|
|
Number of interfaces PROFINET
|
0
|
|
Suitable for safety functions
|
FALSE
|
|
Voltage type (supply voltage)
|
DC
|
|
Wall mounting/direct mounting
|
TRUE
|
|
Number of HW-interfaces RS-232
|
1
|
|
Number of HW-interfaces RS-422
|
0
|
|
Number of HW-interfaces RS-485
|
0
|
|
Supporting protocol for Modbus
|
FALSE
|
|
Supporting protocol for SERCOS
|
FALSE
|
|
Supporting protocol for TCP/IP
|
FALSE
|
|
Supporting protocol for SUCONET
|
FALSE
|
|
Number of HW-interfaces parallel
|
0
|
|
Number of HW-interfaces wireless
|
0
|
|
Supporting protocol for EtherCAT
|
FALSE
|
|
Supporting protocol for INTERBUS
|
FALSE
|
|
Supporting protocol for PROFIBUS
|
FALSE
|
|
Appendant operation agent (Ex ia)
|
FALSE
|
|
Appendant operation agent (Ex ib)
|
FALSE
|
|
Explosion safety category for gas
|
None
|
|
Supporting protocol for DeviceNet
|
FALSE
|
|
Supporting protocol for PROFIsafe
|
FALSE
|
|
Explosion safety category for dust
|
None
|
|
Number of HW-interfaces serial TTY
|
0
|
|
Supporting protocol for EtherNet/IP
|
FALSE
|
|
Supporting protocol for PROFINET IO
|
FALSE
|
|
Supporting protocol for SafetyBUS p
|
FALSE
|
|
Supporting protocol for Data-Highway
|
FALSE
|
|
Supporting protocol for PROFINET CBA
|
FALSE
|
|
Supporting protocol for INTERBUS-Safety
|
FALSE
|
|
Supporting protocol for DeviceNet Safety
|
FALSE
|
|
Supporting protocol for other bus systems
|
FALSE
|
|
Certified for UL hazardous location class I
|
FALSE
|
|
Number of HW-interfaces industrial Ethernet
|
0
|
|
Supporting protocol for Foundation Fieldbus
|
FALSE
|
|
Certified for UL hazardous location class II
|
FALSE
|
|
Certified for UL hazardous location class III
|
FALSE
|
|
Performance level according to EN ISO 13849-1
|
None
|
|
Certified for UL hazardous location division 1
|
FALSE
|
|
Certified for UL hazardous location division 2
|
FALSE
|
|
Supporting protocol for AS-Interface Safety at Work
|
FALSE
|
|
Certified for UL hazardous location group D (propane)
|
FALSE
|
|
Certified for UL hazardous location group B (hydrogen)
|
FALSE
|
|
Certified for UL hazardous location group C (ethylene)
|
FALSE
|
|
Certified for UL hazardous location group A (acetylene)
|
FALSE
|
|
Certified for UL hazardous location group E (metal dusts)
|
FALSE
|
|
Certified for UL hazardous location group F (carbonaceous dusts)
|
FALSE
|
|
Certified for UL hazardous location group G (non-conductive dusts)
|
FALSE
|
