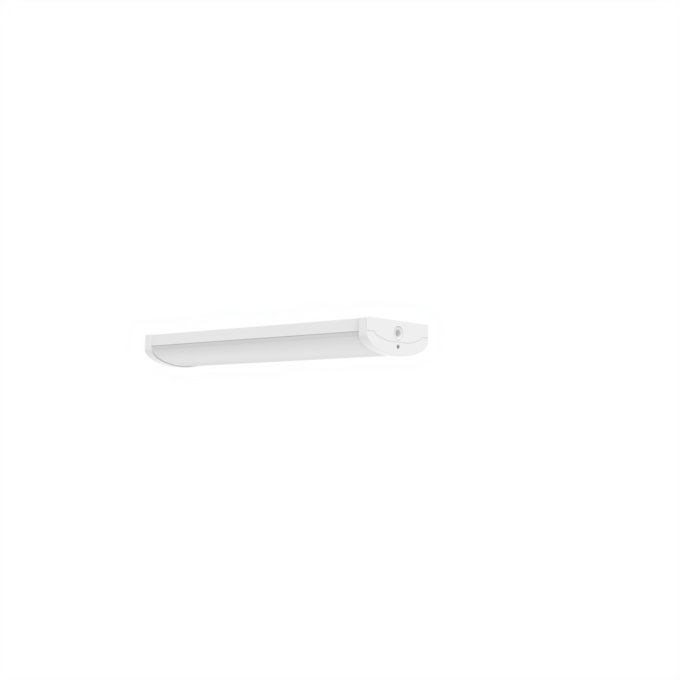

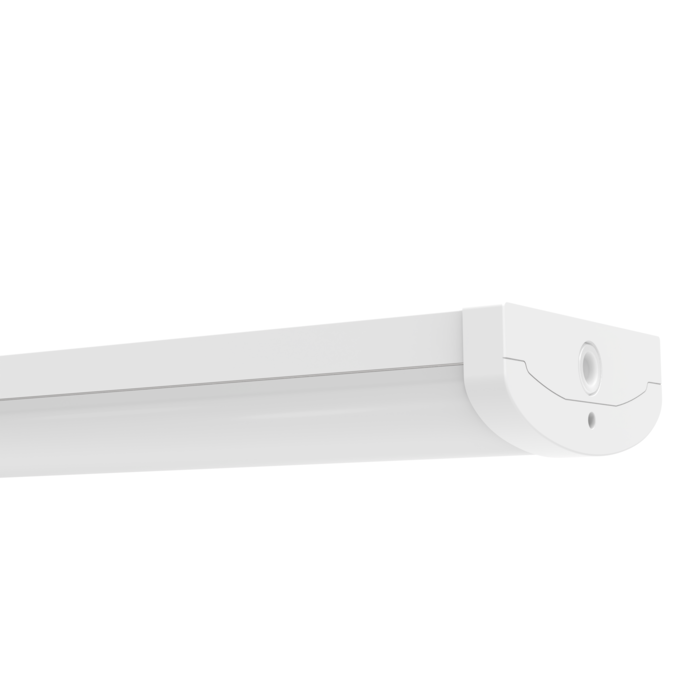

LN SF 1200 ZB P 32W 840 WT IP44

Product benefits

• Suitable luminaire for DIRECT EASY / VIVARES Zigbee and other Zigbee 3.0 Light Management Systems
• Low maintenance and low operational costs
• Protection against cover falling, theft and vandalism thanks to safety screws
• Cable entry on the back of the luminaire and on each end-caps for easy electrical connection
• Easy and quick installation
• Low flicker light thanks to special electronic control gear

Areas of application

• Efficient replacement for traditional T8 and T5 luminaires
• Public buildings
• General illumination
• Libraries, schools

Product features

• IoT-ready luminaire with Zigbee 3.0 technology
• Surface mounted luminaires with direct light emission
• Type of protection: IP44
• Impact resistance: IK08
• Available in 3 different lengths: 600 mm, 1200 mm and 1500 mm
• High luminous efficacy: up to 137 lm/W
• Through-wiring cable already installed
• Lifetime (L80/B10): 70,000 h (at 25 °C)
• White painted steel housing (like RAL: 9003)
• Diffuser material: UV-stable polycarbonate
• End caps (made of polycarbonate) screwed to the housing

Equipment / Accessories

• Equipped with through-wiring cables and connectors
• Tool-free cable strain reliefs included

Safety advice

• All electrical connections must be made by a qualified person.
• Caution, risk of electric shock.
• Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

References / Links

• For Guarantee see www.ledvance.com/guarantee
