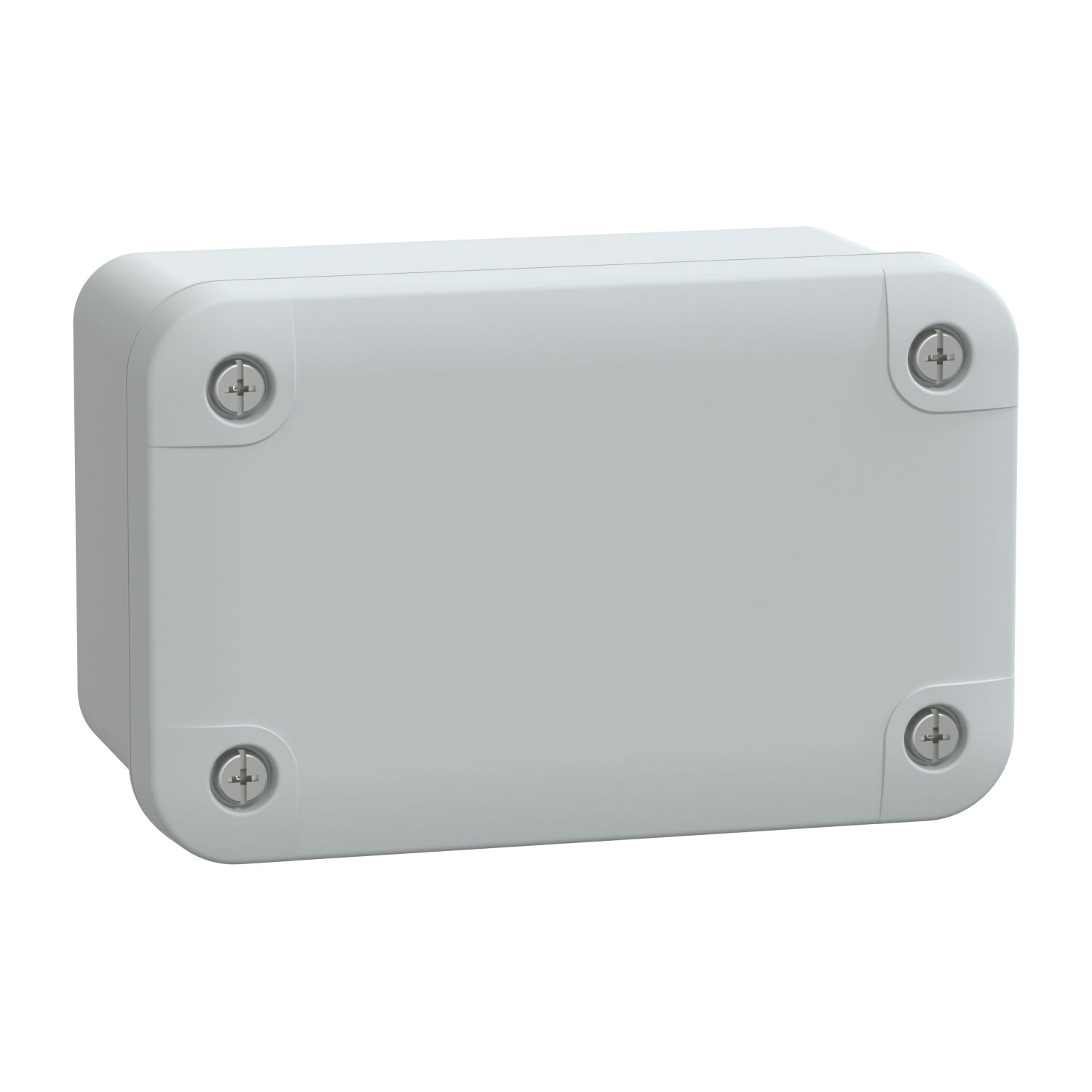

PC box IP66 IK08 RAL7035 Int.H105W65D55 Ext.H116W74D62 opaque PC cover H10

PC box IP66 IK08 RAL7035 Int.H105W65D55 Ext.H116W74D62 opaque PC cover H10

Thalassa TBP industrial PC box with opaque PC cover H10. Int is 105 x 65 x 55 mm. Ext is 116 x 74 x 62 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

Product identifiers

SKU: NSYTBP1176
EAN: 3606480165603
GTIN: 3606480165603
MPN: NSYTBP1176

Voltimum+ Loyalty Programme Loyalty points: 1

Price range: £ 9.19 - £ 10.11 Excl. VAT

Specifications

Depth 62 mm
Width 74 mm
Colour Grey
Height 116 mm
With lock no
RAL-number 7035
Cover model Closed
Inner depth 55 mm
Built-in depth -
Impact strength IK08
Housing material Plastic
Circuit integrity None
Extension possible no
With mounting plate no
Transparent cover/door no
Suitable for outdoor use yes
Degree of protection (NEMA) 4X
Material plate thickness cabinet -
Material plate thickness door/cover -
Number of openings for flange plates -
