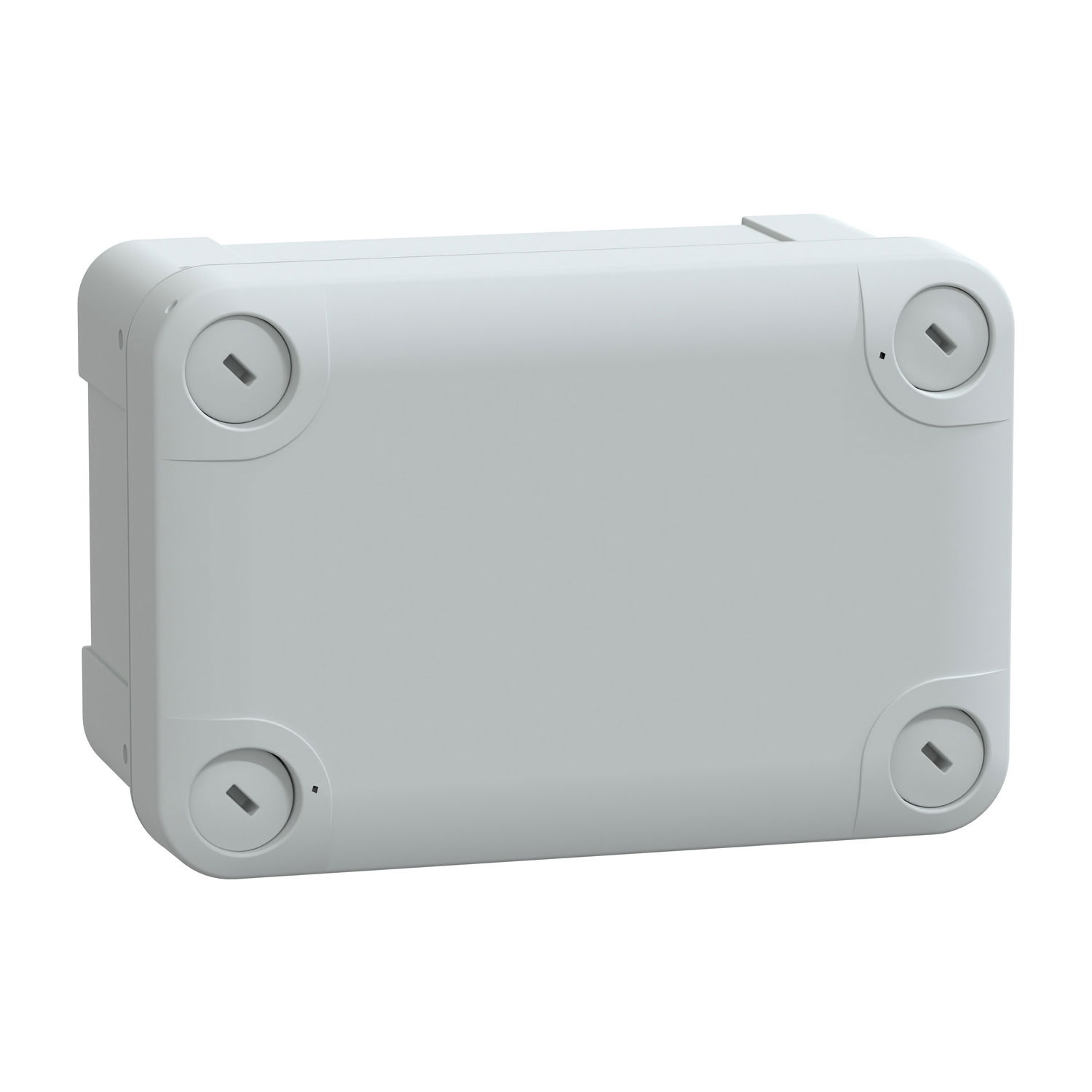

PC box IP66 IK08 RAL7035 Int.H125W80D65 Ext.H138W93D72 opaque PC cover H20

PC box IP66 IK08 RAL7035 Int.H125W80D65 Ext.H138W93D72 opaque PC cover H20

Thalassa TBP industrial PC box with opaque PC cover H20. Int is 125 x 80 x 65 mm. Ext is 138 x 93 x 72 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

Product identifiers

SKU: NSYTBP1397
EAN: 3606480165627
GTIN: 3606480165627
MPN: NSYTBP1397

Voltimum+ Loyalty Programme Loyalty points: 1

Price range: £ 7.73 - £ 9.71 Excl. VAT

Specifications

Depth 72 mm
Width 93 mm
Colour Grey
Height 138 mm
With lock no
RAL-number 7035
Cover model Closed
Inner depth 65 mm
Built-in depth -
Impact strength IK08
Housing material Plastic
Circuit integrity None
Extension possible no
With mounting plate no
Transparent cover/door no
Suitable for outdoor use yes
Degree of protection (NEMA) 4X
Material plate thickness cabinet -
Material plate thickness door/cover -
Number of openings for flange plates -
